SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
SS-EC719iP/WG919iP
SPECIFICATIONS
SPEAKER SYSTEM
9-893-800-03
2014H33-1
©
2014.08
US Model
Canadian Model
UK Model
Russian Model
SS-EC719iP/WG919iP
AEP Model
SS-EC719iP
Ver. 1.2 2014.08
• SS-EC719iP is the Front speaker in MHC-EC719iP/ECL77BT (AEP, UK models).
• SS-EC719iP is the Front speaker in MHC-EC919iP (US, Canadian, UK models).
• SS-EC719iP is the Front speaker in MHC-ECL99BT (US, Canadian, UK, Russian models).
• SS-WG919iP is the Subwoofer in MHC-EC919iP (US, Canadian, UK models).
• SS-WG919iP is the Subwoofer in MHC-ECL99BT (US, Canadian, UK, Russian models).
PARTS LIST
1 A-1970-510-A SS-EC719iP (1 piece) (AEP, UK)
(for MHC-EC719iP/EC919iP/ECL77BT/ECL99BT)
1 A-1970-511-A SS-EC719iP (1 piece) (US)
(for MHC-EC919iP/ECL99BT)
1 A-1970-514-A SS-EC719iP (1 piece) (Canadian)
(for MHC-EC919iP/ECL99BT)
1 A-2059-028-A SS-EC719iP (1 piece) (Russian)
(for MHC-ECL99BT)
2 A-1970-515-A SS-WG919iP (US) (for MHC-EC919iP/ECL99BT)
2 A-1970-516-A SS-WG919iP (Canadian)
(for MHC-EC919iP/ECL99BT)
2 A-1970-517-A SS-WG919iP (UK) (for MHC-EC919iP/ECL99BT)
2 A-2059-031-A SS-WG919iP (Russian) (for MHC-ECL99BT)
3 4-486-328-01 SPEAKER PAD (SILICON T4)
Ref. No. Part No. Description Remark

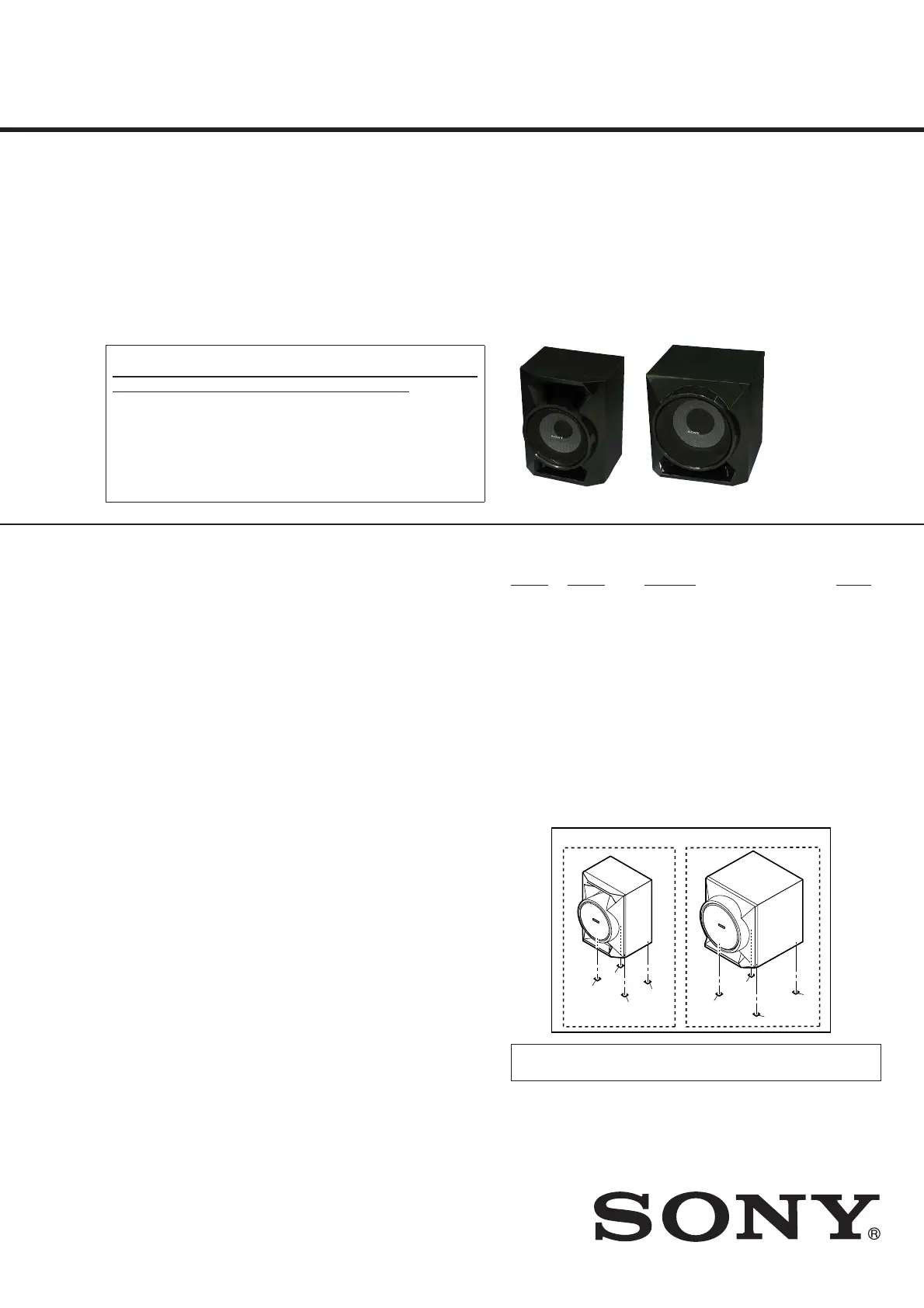

Photo: SS-EC719iP Photo: SS-WG919iP
Note:
Before performing repairs or replacements on the SS-EC719iP/
WG919iP, be sure to confi rm the system model name.
The service policy varies depending on the system model and the
destination of the SS-EC719iP/WG919iP.
Refer to the separately published service manual for SS-EC719iP/
WG919iP that belong to the service models below.
MHC-EC719iP (US and Australian models)
MHC-EC919iP (Australian model)
MHC-ECL77BT (US and Australian models).
Front speaker (SS-EC719iP)
Speaker system: 2-way speaker system,
Speaker units:
Bass reex
Woofer: 160 mm (6
1
/2 in), cone type
Tweeter: 40 mm (1
1
/2 in), horn type
Rated impedance: 3 ohms
Mass: Approx. 2.5 kg (5 lb 8
1
/8 oz) net
per speaker
Quantity: 2 pieces
Subwoofer (SS-WG919iP) for MHC-EC919iP/
ECL99BT only
Speaker system: Subwoofer system, Bass
reex
Speaker unit: 200 mm (8 in), cone type
Rated impedance: 3 ohms
Mass: Approx. 5.0 kg (11 lb
3
/8 oz) net per
speaker
Quantity: 1 piece
change without notice.
Design and specications are subject to
Dimensions (W/H/D):
for MHC-EC919iP/ECL99BT
Approx. 230 mm × 300 mm × 205 mm
(9 in × 11
3
/4 in × 8
1
/8 in)
for MHC-ECL77BT/ECL99BT
Approx. 230 mm × 304 mm × 205mm
(9in × 12in × 8
1
/8in)
Dimensions (W/H/D):
for MHC-EC919iP
Approx. 280 mm × 300 mm × 290 mm
(11 in × 11
3
/4 in × 11
3
/8 in)
for MHC-ECL99BT
Approx. 280mm × 304mm × 290mm
(11in × 12in × 11
3
/8in)
1
3
3
3
3
3
2
3
3
3
Note: When replacing SS-EC719iP or SS-WG919iP, there may be
cases where the SPEAKER PAD (SILICON T4) is not attached.
