Sony HCD-GPX5 - Side Plate (L);(R); Top Block Assy

HCD-GPX5
9

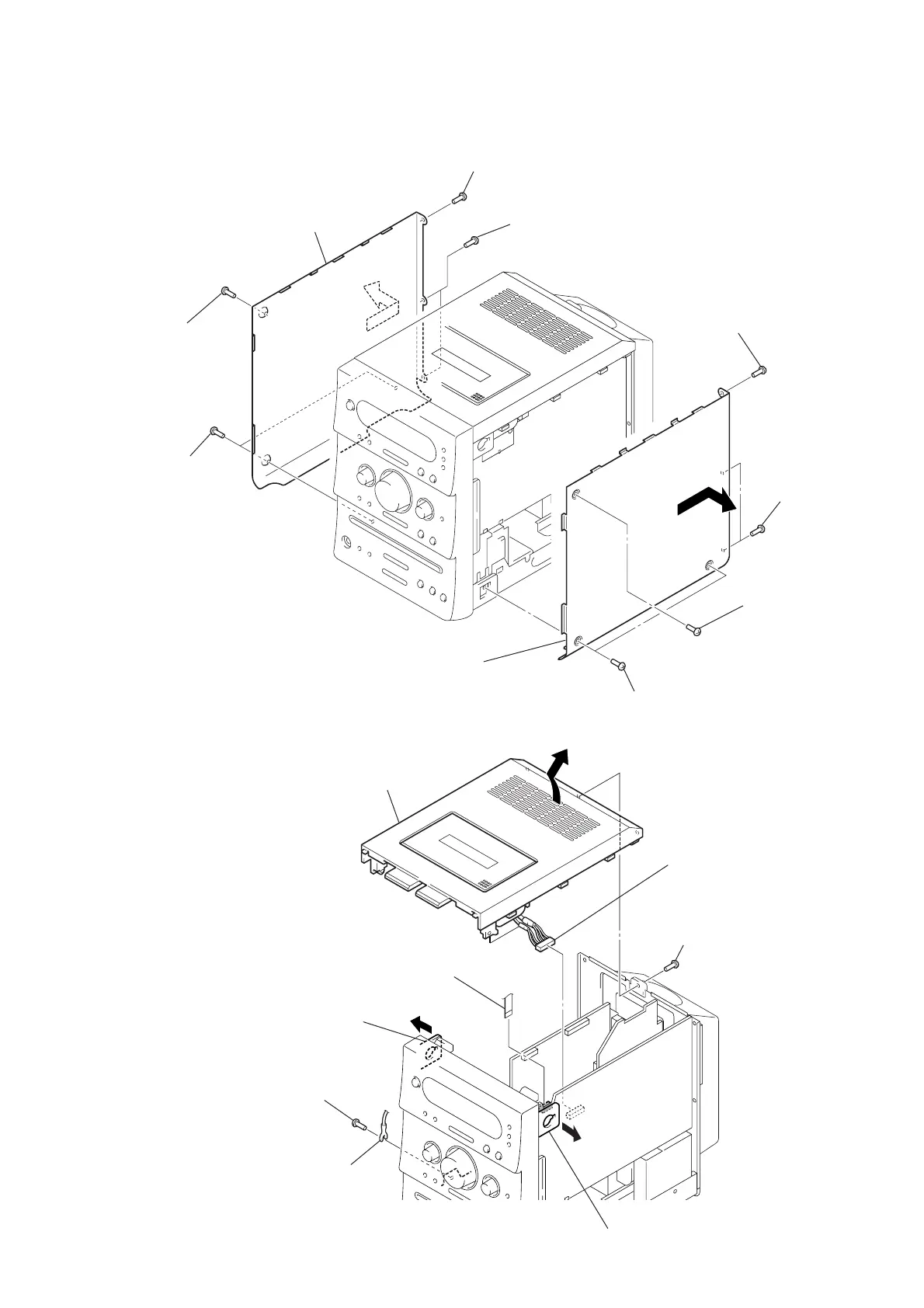

3-3. TOP BLOCK ASSY
Note: Follow the disassembly procedure in the numerical order given.
3-2. SIDE PLATE (L)/(R)
q; side plate (R)
7 two screws
(BVTT3
× 6)
4 two screws
(BVTT3
× 8)
5 side plate (L)
1 screw
(BVTP3
× 10)
2 two screws
(BVTT3
× 6)
3 screw
(BVTP3
× 10)
6 screw
(BVTP3
× 10)
8 screw
(BVTP3
× 10)
9 two screws
(BVTT3
× 8)
5
8 top block assy
7 connector
(CN301)
2 screw
(BVTT3
× 6)
6 wire (flat type)
(7 core) (CN302)
4 Open the plate.
3 harness
4 Open the plate.
1 screw
(BVTT3
× 8)
