HCD-GPX5G/GPX7G/GPX8G

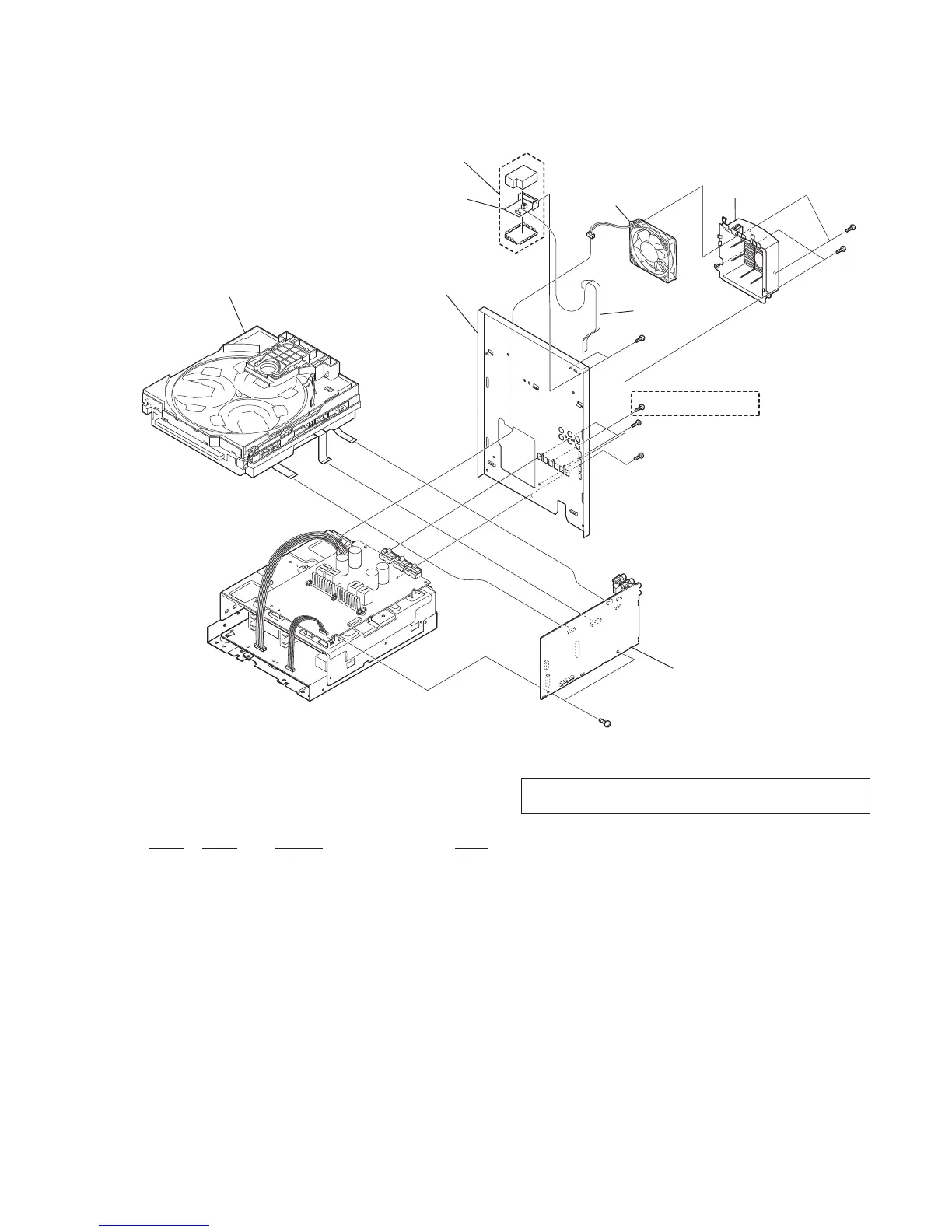

6-3. BACK PANEL SECTION
Ref. No. Part No. Description Remark
101 A-1858-135-A MAIN BOARD, COMPLETE (GPX5G)
101 A-1858-138-A MAIN BOARD, COMPLETE (GPX8G: E2, E51, MX)
101 A-1858-140-A MAIN BOARD, COMPLETE (GPX7G)
101 A-1871-121-A MAIN BOARD, COMPLETE (GPX8G: E4)
0 102 1-855-006-11 FAN, DC
103 4-411-583-02 COVER, FAN
104 1-838-606-11 WIRE (FLAT TYPE) (9 CORE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
101
(for GPX8G only)
CD mechanism section (1)
not supplied
not supplied
TUNER1AM3R board
102
104
103
#1
#1
#1
#1
#1
#1
#1
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
