56
HCD-GPX9

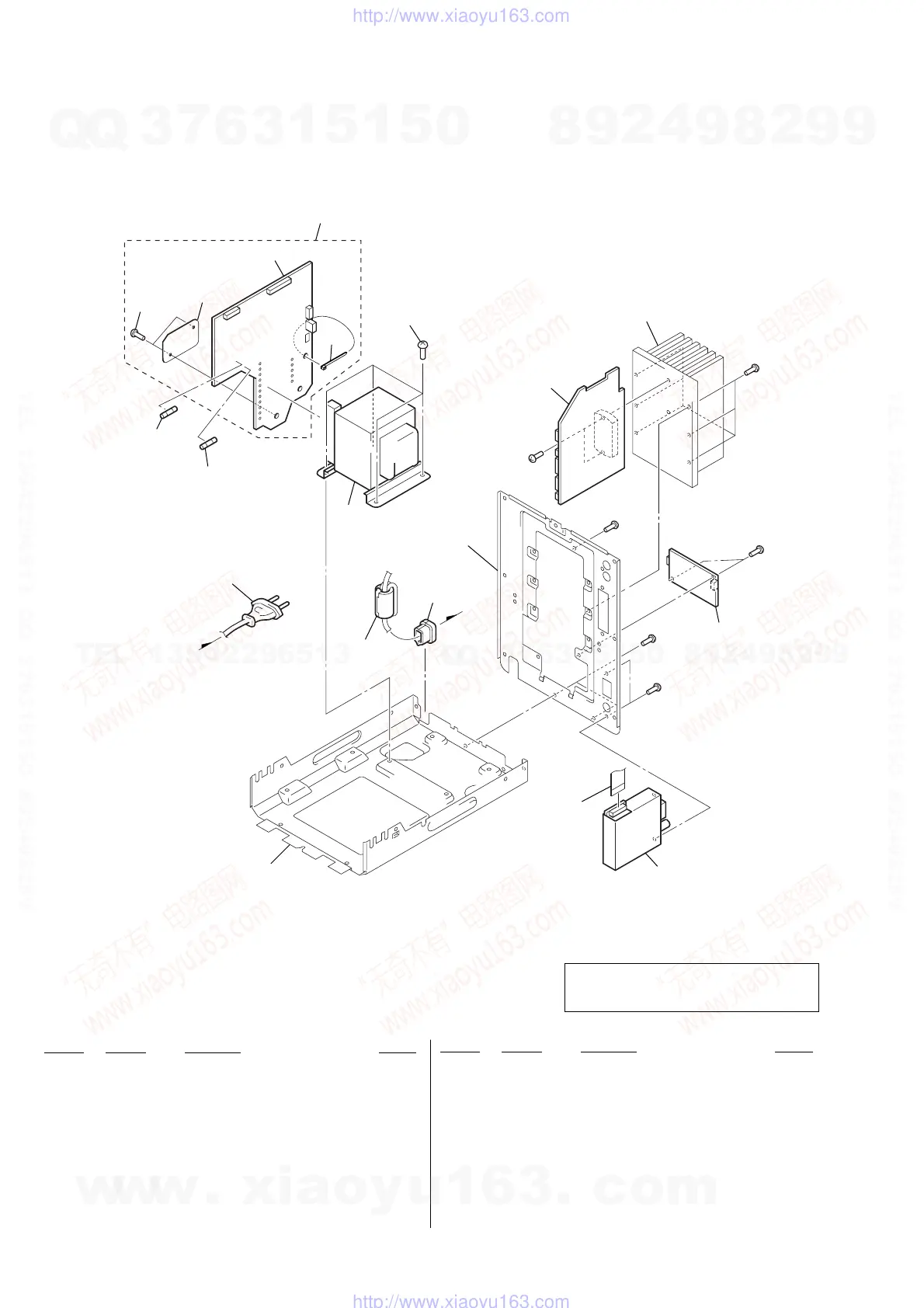

7-5. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 4-251-907-01 HEAT SINK (NE7)
202 4-900-386-01 SCREW
203 A-1113-708-A POWER BOARD, COMPLETE
204 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
205 3-703-244-00 BUSHING (2104), CORD
0 206 1-751-520-31 CORD, POWER (UK)
0 206 1-830-188-11 CORD, POWER (AEP, EE)
207 A-4753-293-A AMP BOARD, COMPLETE
208 1-468-738-11 REGULATOR, SWITCHING
209 1-693-626-11 TUNER (FM/AM)
210 3-701-748-00 CLAMP
211 4-812-134-31 RIVET (DIA. 3.5), NYLON
0 F901 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
0 F902 1-533-470-12 FUSE, GLASS TUBE (DIA. 5) (T3.15A/250V)
0 T901 1-443-198-11 TRANSFORMER, POWER
#1 7-685-871-01 SCREW +BVTT 3X6 (S)
#6 7-685-650-71 SCREW +BVTP 3X16 TYPE2 IT-3
#7 7-685-874-01 SCREW +BVTT 3X12 (S)
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
202
203
210
211
204
205
206
207
201
208
209
not supplied
not supplied
not supplied
not supplied
power board
#6
#1
#1
#1
#1
#7
T901
F901
F902
Ver. 1.1
