HCD-GT22/GT44/GT55
4242
HCD-GT22/GT44/GT55

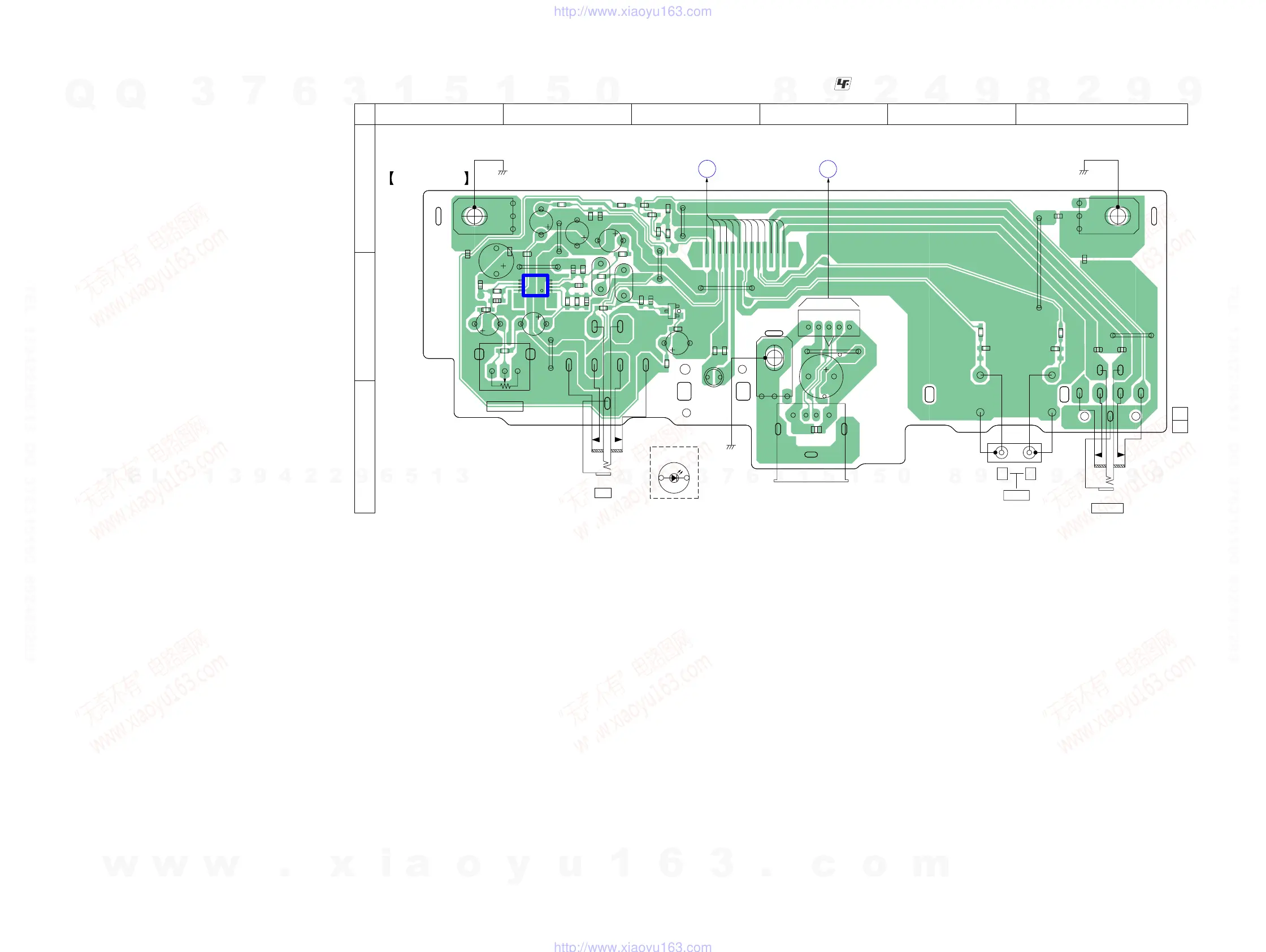

7-18. PRINTED WIRING BOARD – MIC Board –
: Uses unleaded solder.
• See page 27 for Circuit Boards Location.
1
4
58
BE
Q801
IC801
C828
C824
C823
C822
C821
C817
C815
C812
R846
C809
R845
R844
C807
R843
C806
R842
R841
C803
C801
R832
R831
R824
R823
R822
R821
R817
R816
R815
R814
R813
R812
R811
R810
R809
R808
R807
R806
R805
R804
R803
R802
15
1
4
ET803
RV801
J801
JW807
JW804
JW803
JW802
JW806
JW808
JW805
JW809
JW801
D801
J803
J802
ET802
ET801
C827
C816
C814
C813
C811
C810
C808
C805
C804
C802
CN802
(CHASSIS)
(CHASSIS)
(CHASSIS)
CN803
(USB)
1-872-796-
11
(11)
MIC BOARD
MIC LEVEL
MIC
13
1
K
MAIN BOARD
CN061
K
A
E
USB BOARD
CN903
D801
AK
PHONES
R
L
AUDIO
A
B
C
1 2 3 4 5 6
(Page 37)
(Page 32)
