72
HCD-GTR333/GTR555/GTR777/GTR888
SECTION 6
EXPLODED VIEWS
1 4-265-363-02 PANEL, SIDE (L)
2 4-265-364-02 PANEL, SIDE (R)
3 4-265-361-02 PANEL, TOP
4 X-2580-369-1 PANEL, LOADING (GTR333) ASSY (HCD-GTR333)
4 X-2580-370-1 PANEL, LOADING (GTR555) ASSY (HCD-GTR555)
4 X-2580-371-1 PANEL, LOADING (GTR777) ASSY (HCD-GTR777)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
Parts Color Cabinet’s Color
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model

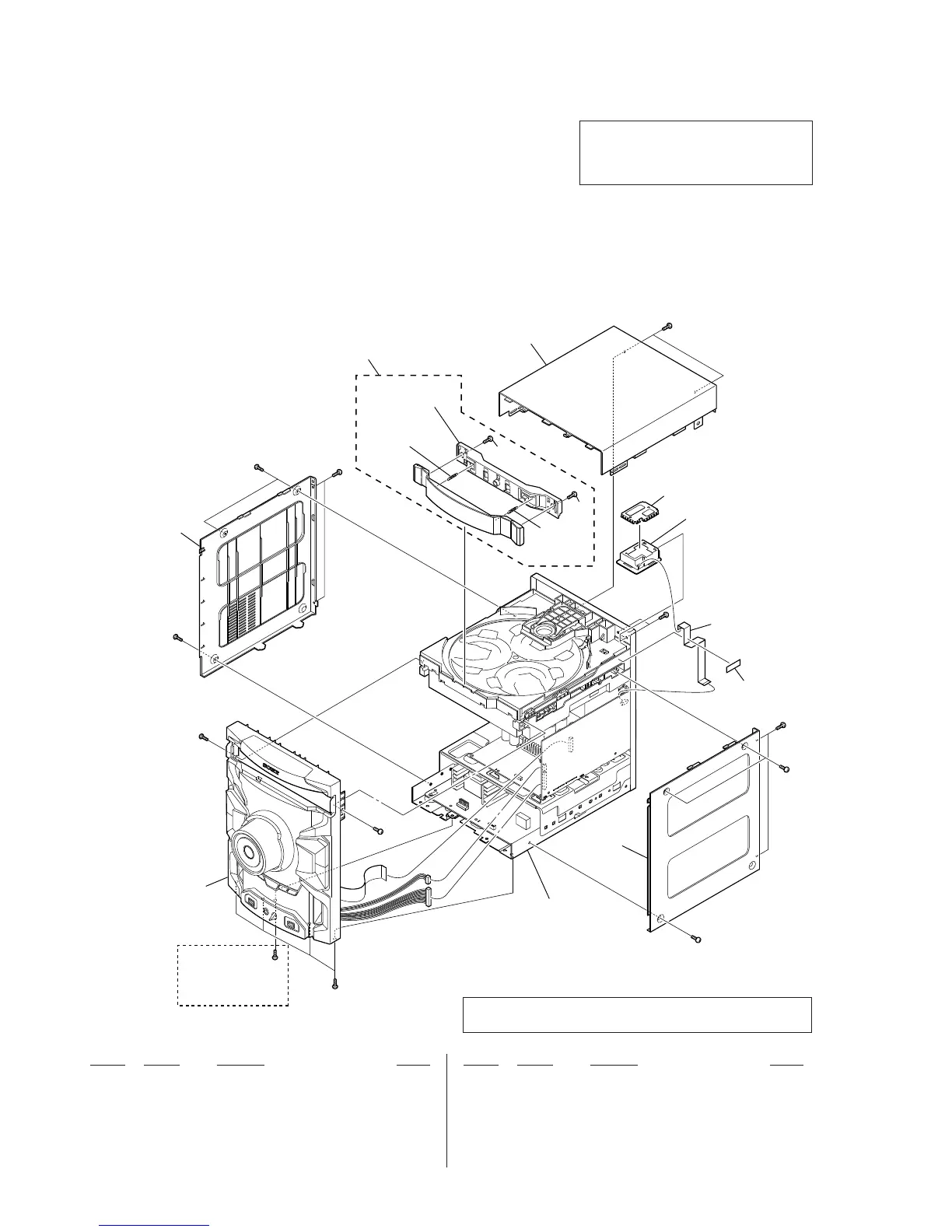

6-1. CASE SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
4 X-2580-372-1 PANEL, LOADING (GTR888) ASSY (HCD-GTR888)
5 2-677-839-01 +PWH 3X8 (SUMITITE)
6 1-828-947-11 WIRE (FLAT TYPE) (7 CORE)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-685-649-79 SCREW +BVTP 3X14 TYPE2 IT-3
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
#1
#1
#6
#1
#6
#6
#1
not supplied
not supplied
not supplied
#1
#6
#6
#6
#6
1
front panel section (1)
back panel section
not supplied
not
supplied
2
4
3
6
5
5
not supplied
(TUNER board)
(for HCD-GTR777/
HCD-GTR888)
Ver. 1.1
To Next Page
