Sony HCD-GTR555 - 6-2. Front Panel Section

73
HCD-GTR333/GTR555/GTR777/GTR888
51 3-087-053-01 +BVTP2.6 (3CR)
52 1-828-995-11 WIRE (FLAT TYPE) (17 CORE)
53 2-895-507-01 KNOB (MIC) (HCD-GTR777/HCD-GTR888)
54 4-225-252-01 CUSHION (FOOT)
55 X-2580-391-1 FRONT PANEL ASSY (GFX2)
(HCD-GTR333/HCD-GTR555)
55 X-2580-343-1 FRONT PANEL ASSY (GFX4S) (HCD-GTR777)
55 X-2580-392-1 FRONT PANEL ASSY (GFX7S) (HCD-GTR888)
56 A-1805-993-A USB BOARD, COMPLETE
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-000-12 TAPPING +PWH 2X4 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

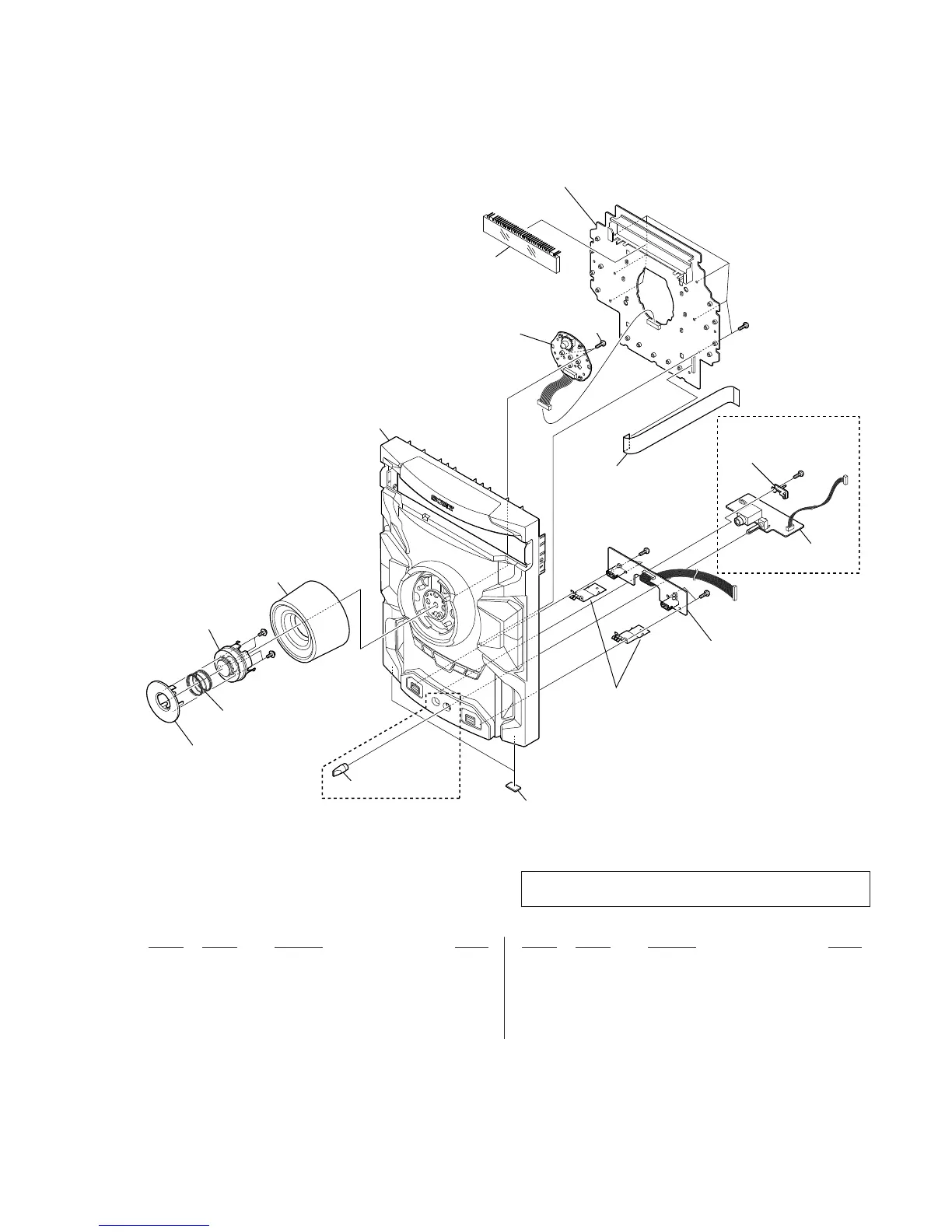

6-2. FRONT PANEL SECTION
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
not supplied
not supplied
(MIC board)
not supplied
not supplied
not supplied
not supplied
not supplied
53
54
55
not supplied
(VOLUME board)
FL1001
#3
#3
not supplied
(DISPLAY board)
52
56
51
(for HCD-GTR777/
HCD-GTR888)
(for HCD-GTR777/
HCD-GTR888)
#1
#1
#1
#1
