Sony HCD-GTR555 - 2-4. Front Panel Section

HCD-GTR333/GTR555/GTR777/GTR888
8

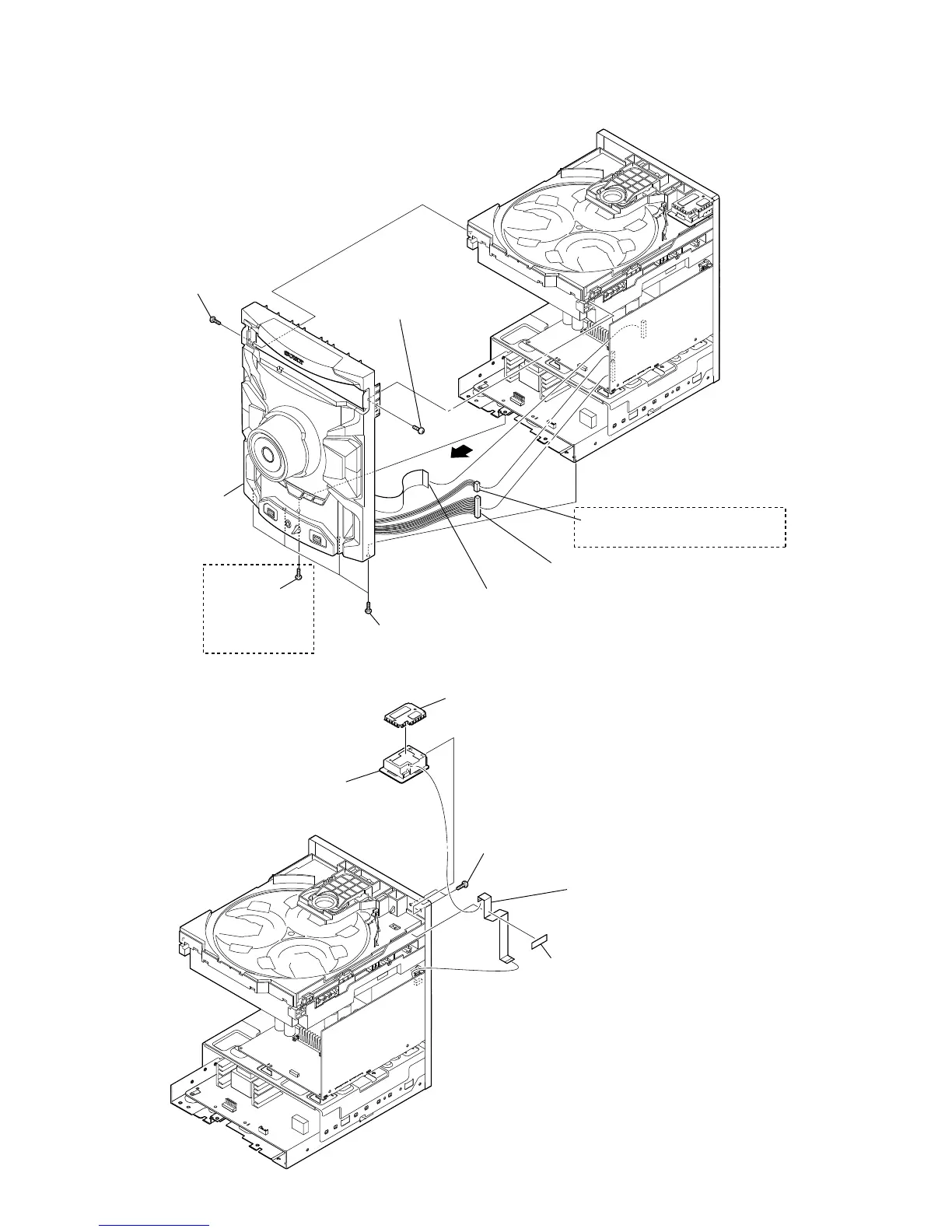

2-5. TUNER BOARD
2-4. FRONT PANEL SECTION
3 two screws
(+BVTP 3 u 8)
1 wire (flat type) (7 core)
(CN1601)
2 tape, filament
4 shield plate, top
5 TUNER board
4 wire (flat type) (17 core) (CN601)
8 front panel section
3 one screw
(+BVTP 3 u 8)
3 one screw
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
1 four screws
(+BVTP 3 u 8)
5 CN707 (4P)
(for HCD-GTR777/HCD-GTR888)
6 CN705 (14P)
7
(for HCD-GTR777/
HCD-GTR888)
