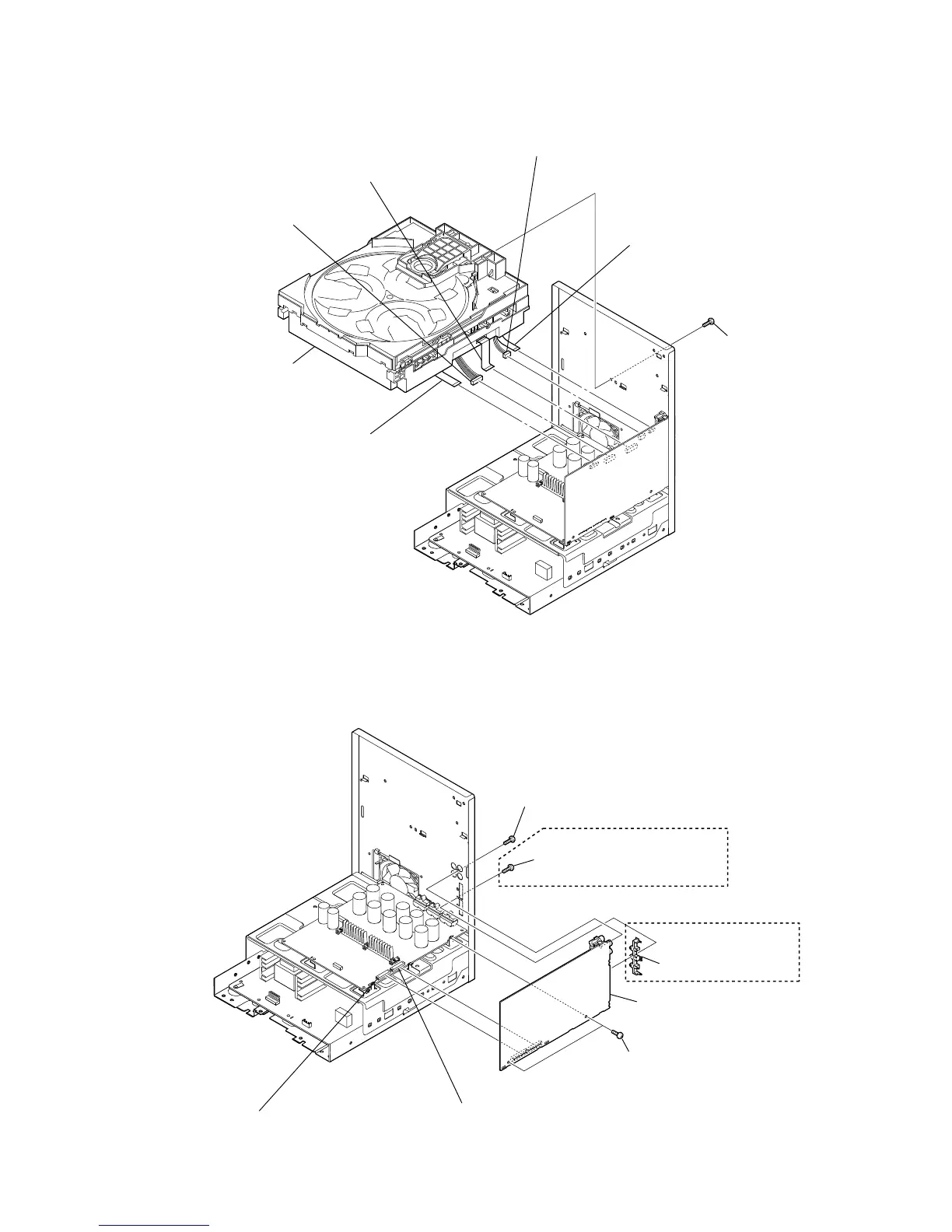

2-6. CD MECHANISM SECTION (CDM74HFV-DVBU101)
2-7. MAIN BOARD
1 one screw
(+BVTP 3 u 12)
2 one screw
(+BVTP 3 u 8)
4 two screws
(+BVTP 3 u 8)
5 CN4000 (14P)
6 CN4001
(10P) (for HCD-GTR333)
(12P) (for HCD-GTR555/HCD-GTR777)
(14P) (for HCD-GTR888)
7 MAIN board
3 speaker, LED (holder)
(for HCD-GTR777/HCD-GTR888)
(for HCD-GTR777/
HCD-GTR888)
1 wire (flat type) (7 core) (CN703)
3 wire (flat type) (13 core)
(CN700)
5 wire (flat type) (13 core)
(CN702)
2 CN701 (3P)
4 CN704 (7P)
7 CD mechanism section
(CDM74HFV-DVBU101)
6 one screw
(+BVTP 3 u 12)
