Sony HCD-GX40 - CD Door; Front Panel Section

7
HCD-GX40

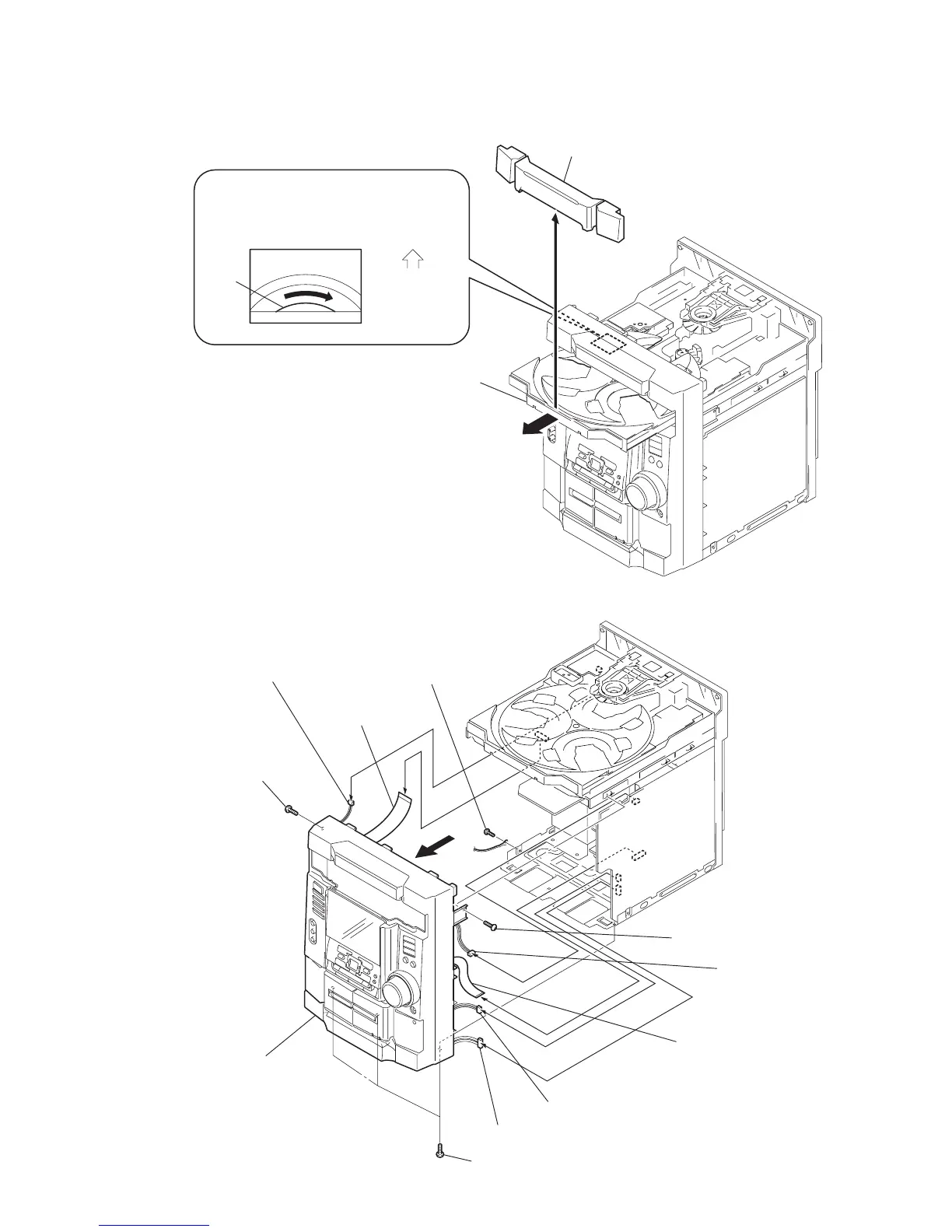

2-2. CD Door
2-3. Front Panel Section
2 Pull-out the disc tray.
1 Turn the pulley to the direction of arrow.
pulley
4 CD door
Front panel side
CD mechanism deck (CDM58F-K6A)
3
1 three screws (+BVTT 3 × 6)
9 wire (flat type) 13p (CN207)
7 wire (flat type)
19p (CN733)
qa connector 7p (CN202)
qs front panel
0 connector 3p (CN303)
8 connector 3p (CN201
)
6 connector 2p (CN682)
3 screw (+BVTP 3 × 10)
4 screw (+BVTP 3 × 10)
2 screw (+BVTP 3 × 10)
5
