Sony HCD-H77 - Page 7

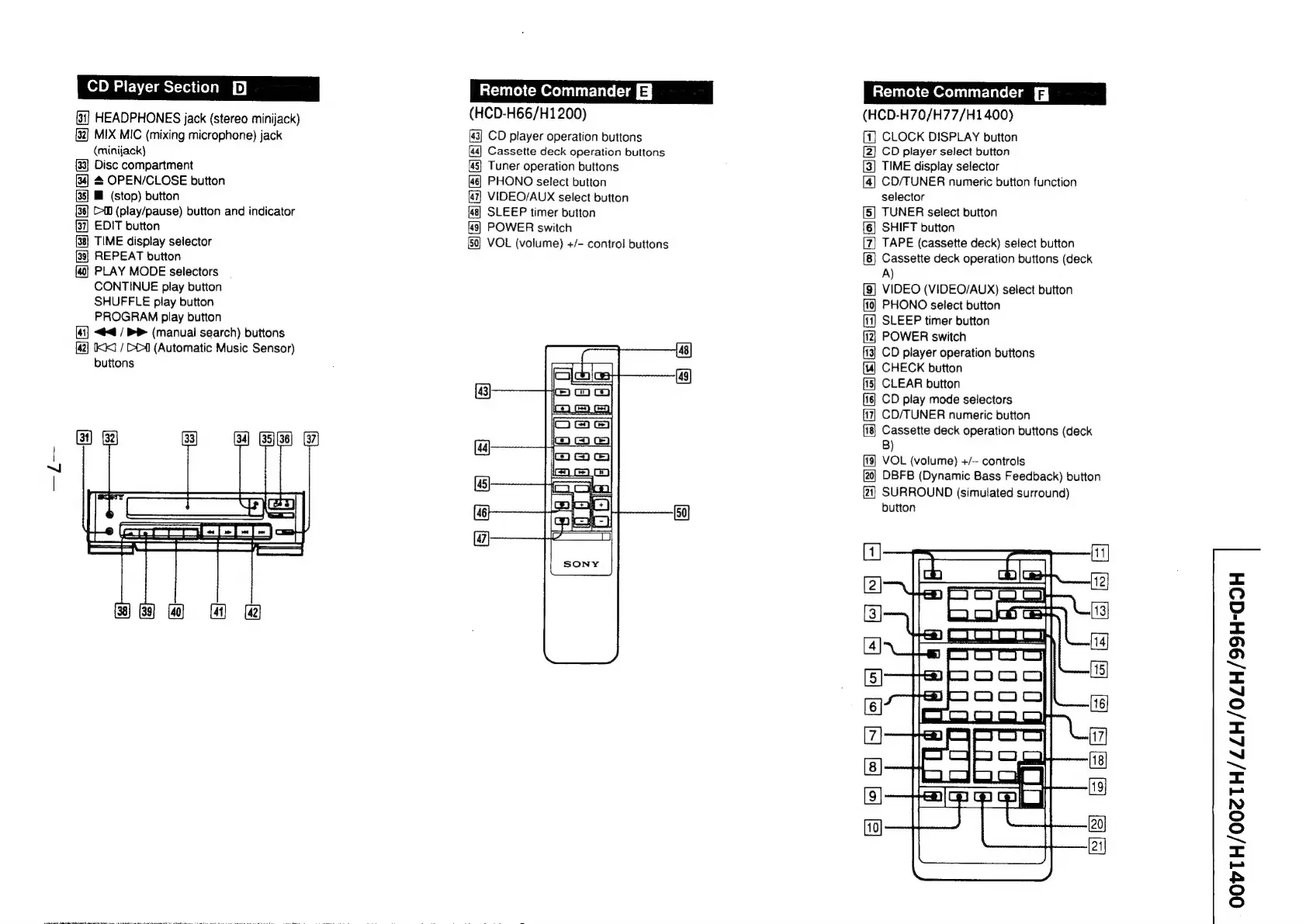

CD Player Section [Bj
fi] HEADPHONES jack (stereo minijack)
[32] MIX MIC (mixing microphone) jack
(minijack)
{33} Disc compartment
[4] & OPEN/CLOSE button
[35] M@ (stop) button
{36} [>00 (play/pause) button and indicator
{37] EDIT button
TIME display selector
[3] REPEAT button
[40] PLAY MODE selectors
CONTINUE play button
SHUFFLE play button
PROGRAM play button
[41] <4@ / BR (manual search) buttons
[a2] KK / 1 (Automatic Music Sensor)
buttons
Remote Commander
(HCD-H66/H1 200)
ISIS EES ESTE]
CD player operation buttons
Cassette deck operation buttons
Tuner operation buttons
PHONO select button
VIDEO/AUX select button
SLEEP timer button
POWER switch
VOL (volume) +/- contro! buttons
Remote Commander
(HCD-H70/H77/H1400)
[1] CLOCK DISPLAY button
CD player select button
TIME display selector
CD/TUNER numeric button function
selector
TUNER select button
SHIFT button
TAPE (cassette deck) select button
Cassette deck operation buttons (deck
A)
VIDEO (VIDEO/AUX) select button
PHONO select button
SLEEP timer button
POWER switch
CD player operation buttons
CHECK button
CLEAR button
CD play mode selectors
CD/TUNER numeric button
Cassette deck operation buttons (deck
B)
VOL (volume) +/— controls
DBFB (Dynamic Bass Feedback) button
SURROUND (simulated surround)
button
