Sony HCD-RV6 - 3-9. MAIN BOARD, POWER AMP BOARD Disassembly; 3-10. BASE UNIT Disassembly

14
HCD-RV2/RV5/RV6

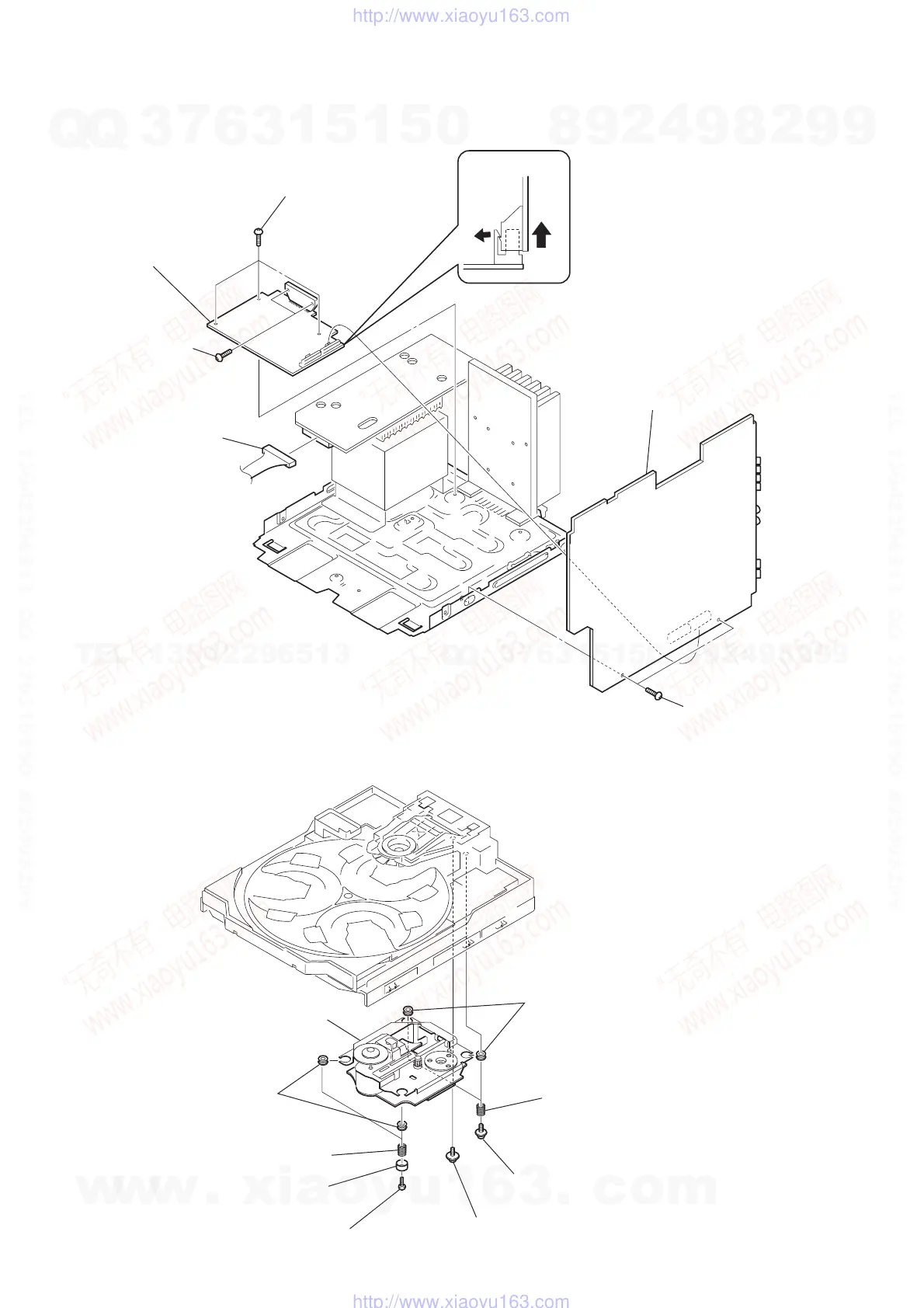

3-9. MAIN BOARD, POWER AMP BOARD
3-10. BASE UNIT
4 three screws
(+BVTP 3
× 10)
5 two screws
(+BVTP 3
× 16)
2 two screws
(+BVTP 3
× 10)
3 MAIN board
6 POWER AMP board
1 CN915
MAIN board
2 two screws (+PTPWH M2.6)
3 two coil springs (insulator)
6 two coil springs (insulator)
1 screw (DIA. 12)
4 two screws (+BVTP 2.6 × 8)
9 two insulators
8 two insulators
7 base unit
5 two stoppers (BU)
