HCD-RV2/RV5/RV6
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is
printed in each block.)
for schematic diagram:
All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in and
1
/
4
W or less unless otherwise
specified.
•%: indicates tolerance.
f
: internal component.
C : panel designation.
A : B+ Line.
B : B– Line.
H : adjustment for repair.
•Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
•Voltages are taken with a VOM (Input impedance 10 M).
Voltage variations may be noted due to normal produc-
tion tolerances.
BD section
no mark : CD
VIDEO (1/2), (2/2), MAIN (1/4), (2/4), (3/4), (4/4), PANEL,
POWER sections.
no mark : FM
(): CD
[]: TAPE
•Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal produc-
tion tolerances.
Circled numbers refer to waveforms.
Signal path.
F : FM
f : AM
E : PB (DECK A)
d : PB (DECK B)
G : REC (DECK B)
J : CD
L : VIDEO
Abbreviation
E3 : 240 V AC area in E model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
for printed wiring boards:
X : parts extracted from the component side.
Y : parts extracted from the conductor side.
x : parts mounted on the conductor side.
: Pattern from the side which enables seeing.
(The other layer’s patterns are not indicated.)
Note: The components identified by mark 0 or dotted line
with mark 0 are critical for safety.
Replace only with part number specified.
Abbreviation
E3 : 240 V AC area in E model
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
TH : Thai model
Caution:
Pattern face side: Parts on the pattern face side seen from the
(Side B) pattern face are indicated.
Parts face side: Parts on the parts face side seen from the
(Side A) parts face are indicated.
– PANEL Board –
1
5MHz
IC701
3
(X1)
3Vp-p
– MAIN Board –
1
4.5MHz
IC102
1
(XIN)
1.8Vp-p
2
32.768kHz
IC601
qa
(XCOUT)
2.8Vp-p
3
16MHz
IC601
qd
(XOUT)
0.6Vp-p
– VIDEO Board –
1
33.8688MHz
IC505
<zb/>
(XTAO)
1.1Vp-p
2
29MHz
IC505
<x/n>
(CLKA)
0.6Vp-p

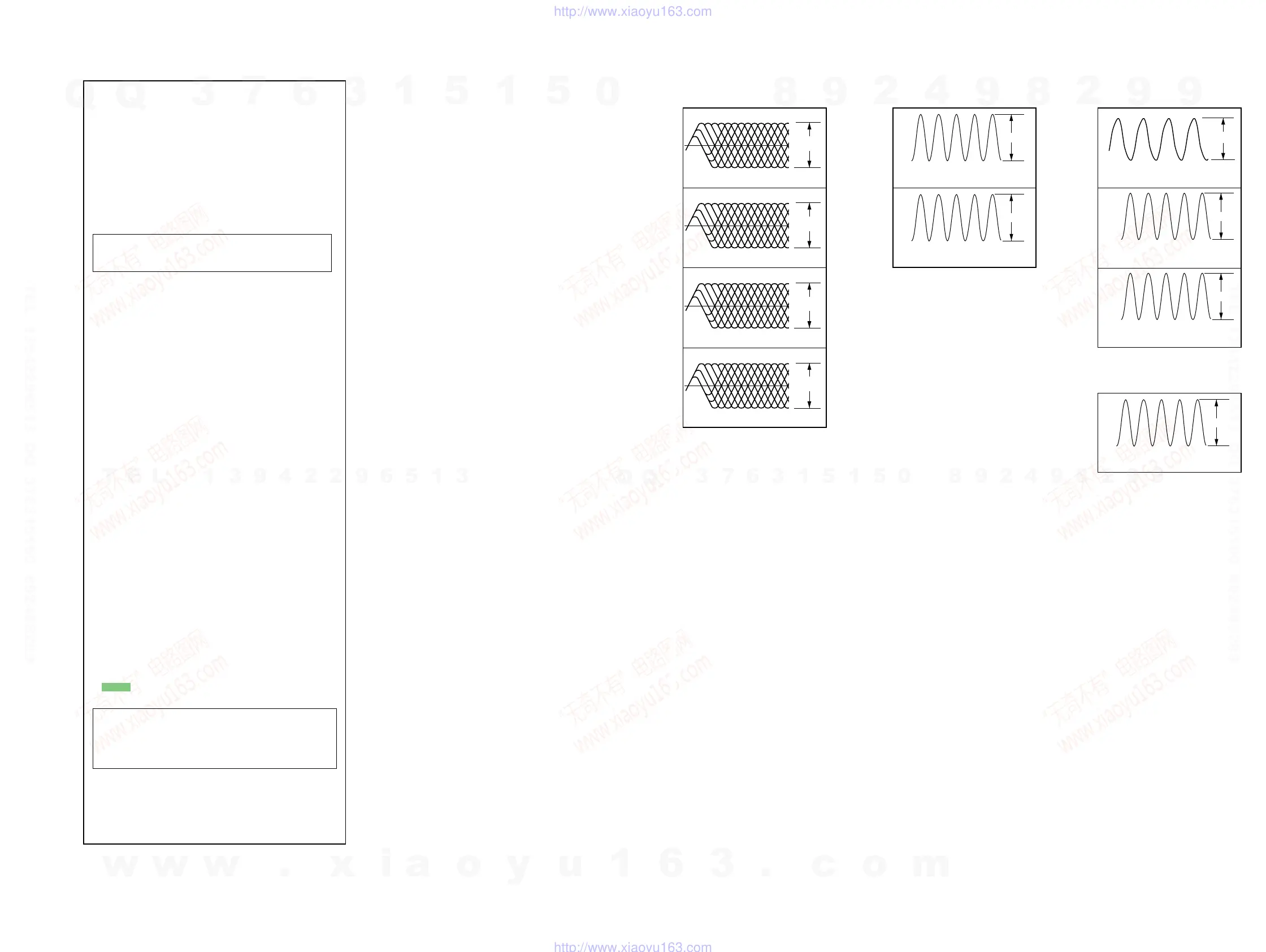

•Waveforms
– BD Board –
1
2
IC103
6
(A),
8
(C)
Approx.
160mVp-p
3
4
IC103
7
(B),
9
(D)
Approx.
160mVp-p
IC103
qg
(RFAC)
Approx.
1Vp-p
IC103
wk
(RFDCO)
Approx.
0.6Vp-p
