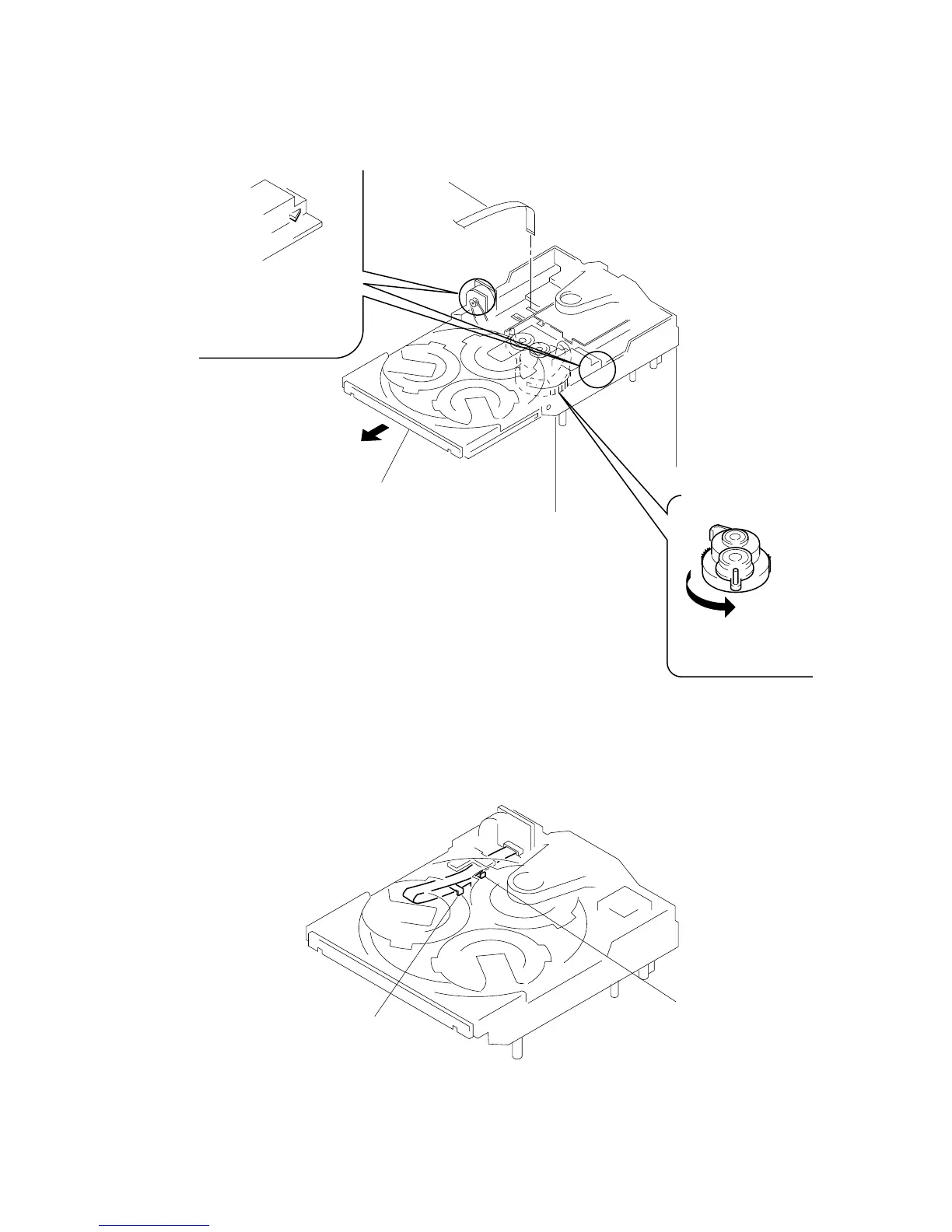

3-5. DISC TRAY
(Perform after removing the front panel.)
1 Turn the cam to the
direction of arrow.
2 Pull-out the disc tray.
5 Remove the disc tray.
4 Two claws
3 Flat type wire (8 core)
Note: When installing the Disc tray, pull around the flat type wire to
pass through the claw
A and claw B , as shown in the figure.
claw
A
claw B
