Sony HCD-TZ100 - DVD Mechanism Deck; Front Panel Section

HCD-TZ100/TZ200/TZ300
8

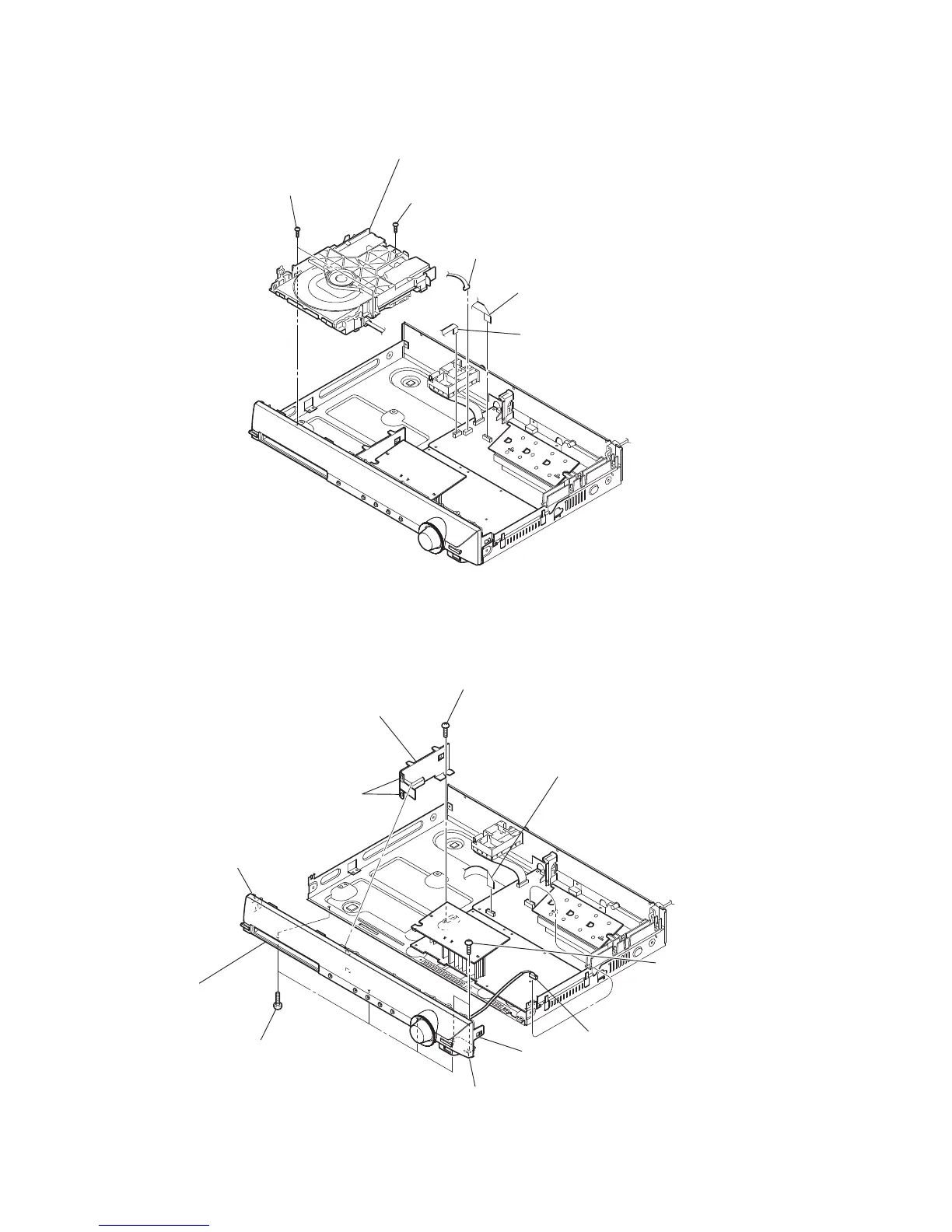

2-3. DVD MECHANISM DECK
2-4. FRONT PANEL SECTION
2 CN1201 (6P)
1 wire (flat type) (24 core)
(CN1101)
3 wire (flat type) (5 core)
(CN1202)
4 two screws
(+BV3 (3-CR))
5 screw
(+BV3 (3-CR))
6 DVD mechanism deck
7 claw
7 claw
USB board
5 holder (wire)
two claws
3 four screws
(+BV3 (3-CR))
4 screw
(+BV3 (3-CR))
6 two screws
(+BV3 (3-CR))
8 front panel section
2 CN2101 (5P)
1 wire (flat type) (17 core)
(CN506)
