HCD-WZ88D

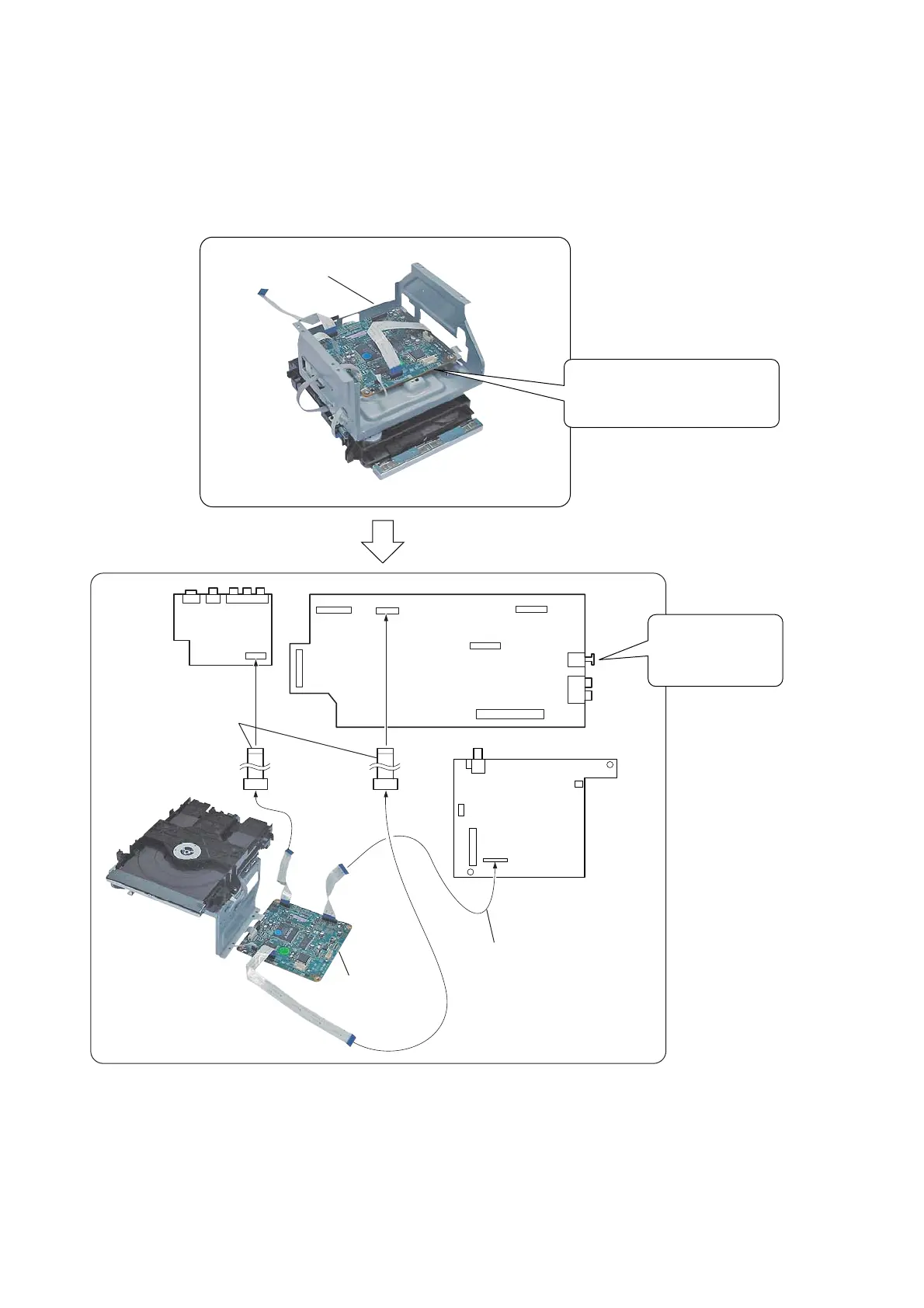

• DMB10 board service position
CN101
CN801
MAIN BOARD
4CH-VOL BOARD
VIDEO BOARD
CN303
Remov
e the DMB10 board once.
Then create the service position.
Extension cable :
J-2501-244-A
(1mm / 21pin / L300)
DMB10 board
DMB10 board
Extension cable :
J-2501-102-A
(1mm / 13pin / L300)
In such a case, the
extension cab
les
became necessary
.
3
5
Table of Contents
Default Chapter
2
Table of Contents
2
1 Servicing Notes
3
2 General
6
Remote Control
7
Hooking up the System
8
3 Disassembly
9
Case
10
Front Panel Assy
10
VR Board, FL Board, FUNCTION SW Board
11
4CH-VOL Board, VIDEO Board
11
MAIN Board, REGULATOR Board, MIC Board
12
DVD Mechanism (CDM85-DVBU102)
12
DMB10 Board
13
Tray
13
Ms-203 Board
14
Base Unit
15
Optical Pick-Up (KHM-310CAA/C2NP)
15
4 Test Mode
16
5 Diagrams
20
Block Diagrams - RF/SERVO Section
22
VIDEO Section
23
AUDIO Section
24
MAIN Section
25
Printed Wiring Board - DMB10 Section (Side A)
26
Printed Wiring Board - DMB10 Section (Side B)
27
Schematic Diagram - DMB10 Section (1/4)
28
Schematic Diagram - DMB10 Section (2/4)
29
Schematic Diagram - DMB10 Section (3/4)
30
Schematic Diagram - DMB10 Section (4/4)
31
Printed Wiring Board - MAIN Section
32
Schematic Diagram - MAIN Section (1/2)
33
Schematic Diagram - MAIN Section (2/2)
34
Printed Wiring Boards - FL/FUNCTION SW Section
35
Schematic Diagram - FL/FUNCTION SW Section
36
Printed Wiring Board - REGULATOR Section
37
Schematic Diagram - REGULATOR Section
38
Printed Wiring Board - 4-CH-VOL Section
39
Schematic Diagram - 4-CH-VOL Section
40
Printed Wiring Boards - VIDEO/MIC/VR/MS-203 Section
41
Schematic Diagram - VIDEO/MIC/VR/MS-203 Section
42
6 Exploded Views
54
Front Panel Section
54
Chassis Section
55
DVD Mechanism Section (CDM85B-DVBU102)
56
7 Electrical Parts List
57
