8
HCD-WZ88D

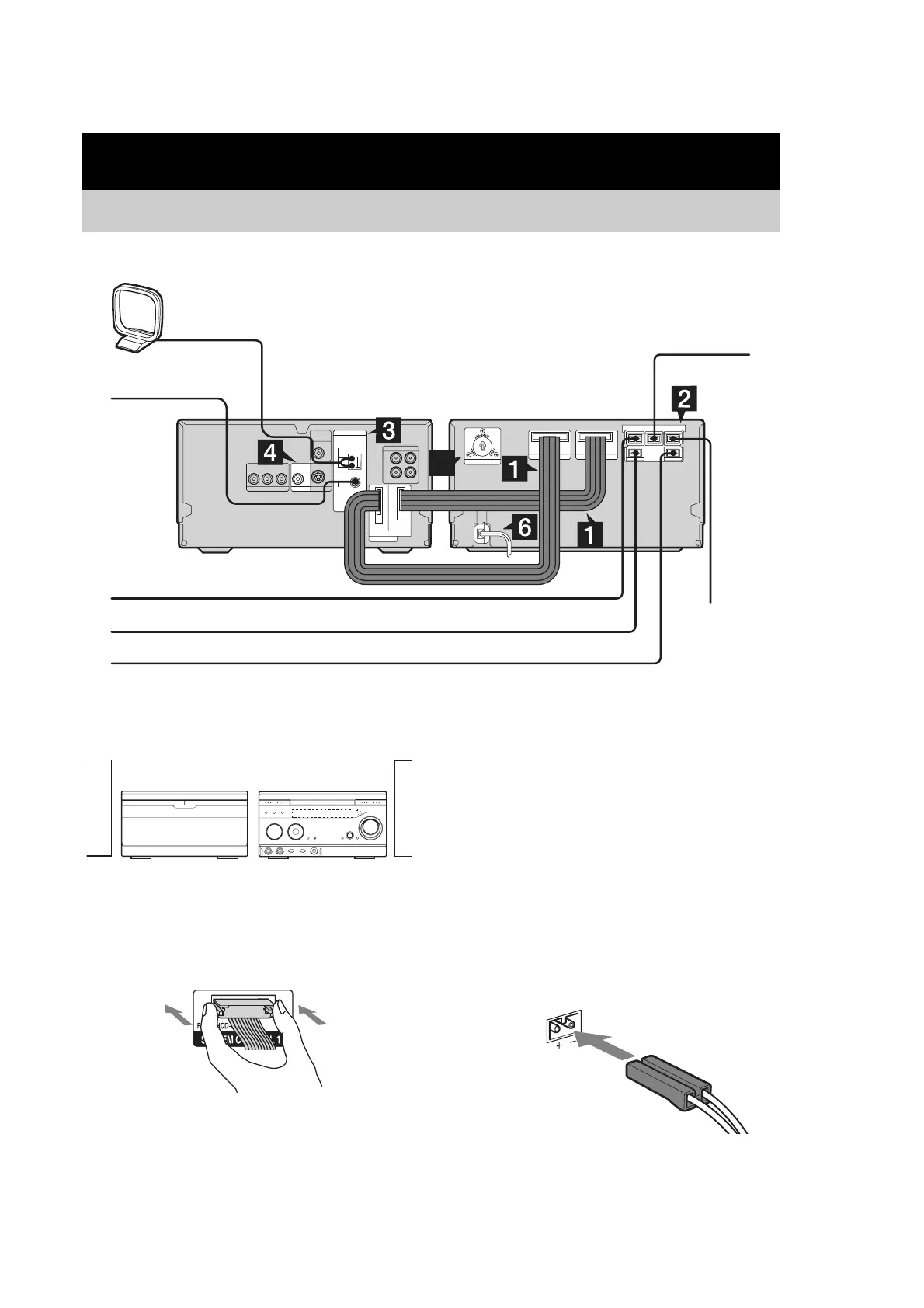

Do the following procedures 1 to 7 to hook up your system using the supplied cords and accessories.
Preparation
Place the components as shown below.
1 Connect the system control cables
from the DVD player/Tuner component
to the appropriate (same numbered)
SYSTEM CONTROL connectors on the
Amplifier/Tape deck component.
Note
The system control cables are used to send audio and
electrical signals between the components for
interlinked operation.
Be sure to insert the connector horizontally until it
clicks into place. Otherwise the system will not operate
correctly.
2 Connect the speakers.
Be sure to match the appropriate speaker
cords from the speaker terminals to the
corresponding SPEAKER terminals on the
Amplifier/Tape deck component as shown
below.
Getting Started
Hooking up the system
5
AM loop antenna
To front speaker (right)
To front speaker
(left)
FM lead antenna
DVD player/Tuner Amplifier/Tape deck
To surround speaker (right)
To surround speaker (left)
To center
speaker
Amplifier/
Tape deck
DVD player/
Tuner
Amplifier/Tape deck
[HCD-WZ88D] [DXA-WZ88D]
To Next Page
