HCD-ZX80D/ZX100D

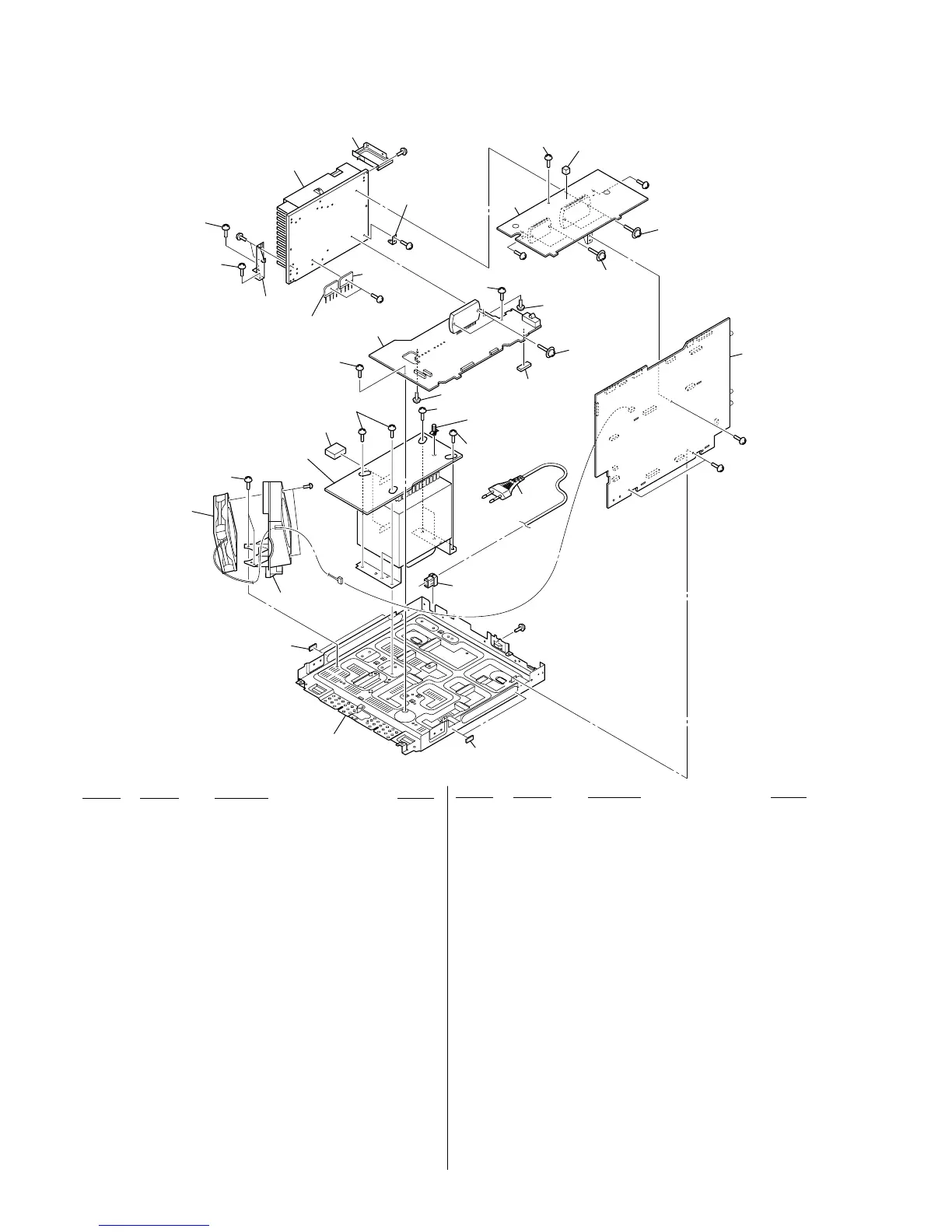

8-6. MAIN/PA/SURROUND BOARDS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 4-225-252-01 CUSHION (FOOT)
252 4-900-386-01 SCREW
253 3-077-331-21 +BV3 (3-CR)
254 A-1174-202-A PA BOARD, COMPLETE (ZX80D: MX)
254 A-1174-267-A PA BOARD, COMPLETE (ZX100D: MX)
254 A-1174-326-A PA BOARD, COMPLETE (ZX80D: E3, E13)
254 A-1174-337-A PA BOARD, COMPLETE (ZX100D: E3, SP, MY)
254 A-1193-201-A PA BOARD, COMPLETE (ZX80D: US, E2, E51)
254 A-1193-204-A PA BOARD, COMPLETE (ZX100D: E2, E51)
255 3-905-609-31 SCREW (TRANSISTOR)
256 A-1174-185-A SURROUND BOARD, COMPLETE (ZX80D: MX)
256 A-1174-262-A SURROUND BOARD, COMPLETE (ZX100D: MX)
256 A-1174-323-A SURROUND BOARD, COMPLETE
(ZX80D: US, E2, E3, E13, E51)
256 A-1174-333-A SURROUND BOARD, COMPLETE
(ZX100D: E2, E3, E51, SP, MY)
257 A-1174-078-A MAIN BOARD, COMPLETE (ZX80D: E3)
257 A-1174-169-A MAIN BOARD, COMPLETE (ZX80D: MX)
257 A-1174-256-A MAIN BOARD, COMPLETE (ZX100D: MX)
257 A-1174-328-A MAIN BOARD, COMPLETE (ZX100D: E3)
257 A-1193-164-A MAIN BOARD, COMPLETE (ZX80D: E13)
257 A-1193-167-A MAIN BOARD, COMPLETE (ZX80D: E2)
257 A-1193-171-A MAIN BOARD, COMPLETE (ZX100D: SP, MY)
257 A-1193-174-A MAIN BOARD, COMPLETE (ZX100D: E2)
257 A-1193-435-A MAIN BOARD, COMPLETE (ZX80D: E51)
257 A-1193-438-A MAIN BOARD, COMPLETE (ZX100D: E51)
257 A-1227-251-A MAIN BOARD, COMPLETE (ZX80D: US)
0 258 1-777-071-53 CORD, POWER (ZX80D: E2, E3, E13, E51/
ZX100D: E2, E3, E51, SP, MY)
0 258 1-783-820-11 CORD, POWER (ZX80D: US)
0 258 1-829-627-31 POWER-SUPPLY CORD
(ZX80D: MX/ZX100D: MX)
* 259 3-703-244-00 BUSHING (2104), CORD
(ZX80D: US, E2, E3, E13, E51/
ZX100D: E2, E3, E51, SP, MY)
259 3-703-571-11 BUSHING (S) (4516), CORD (ZX80D: MX/
ZX100D: MX)
D656 8-719-073-32 DIODE D25XB60
D658 8-719-066-42 DIODE RBV1306 (ZX80D)
D658 8-719-073-32 DIODE D25XB60 (ZX100D)
M502 1-787-400-11 D.C. FAN
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
251
#1
#1
#4
#4
#4
#4
#4
#4
#4
#4
not supplied
not supplied
M502
not supplied
not supplied
D656
D658
not supplied
not supplied
not supplied
not supplied
not supplied
POWER TRANSFORMER section
not supplied
251
252
252
252
253
253
253
253
253
253
253
253
254
255
255
255
256
257
258
259
