Sony HD-X1 - Page 63

63
HCD-X1

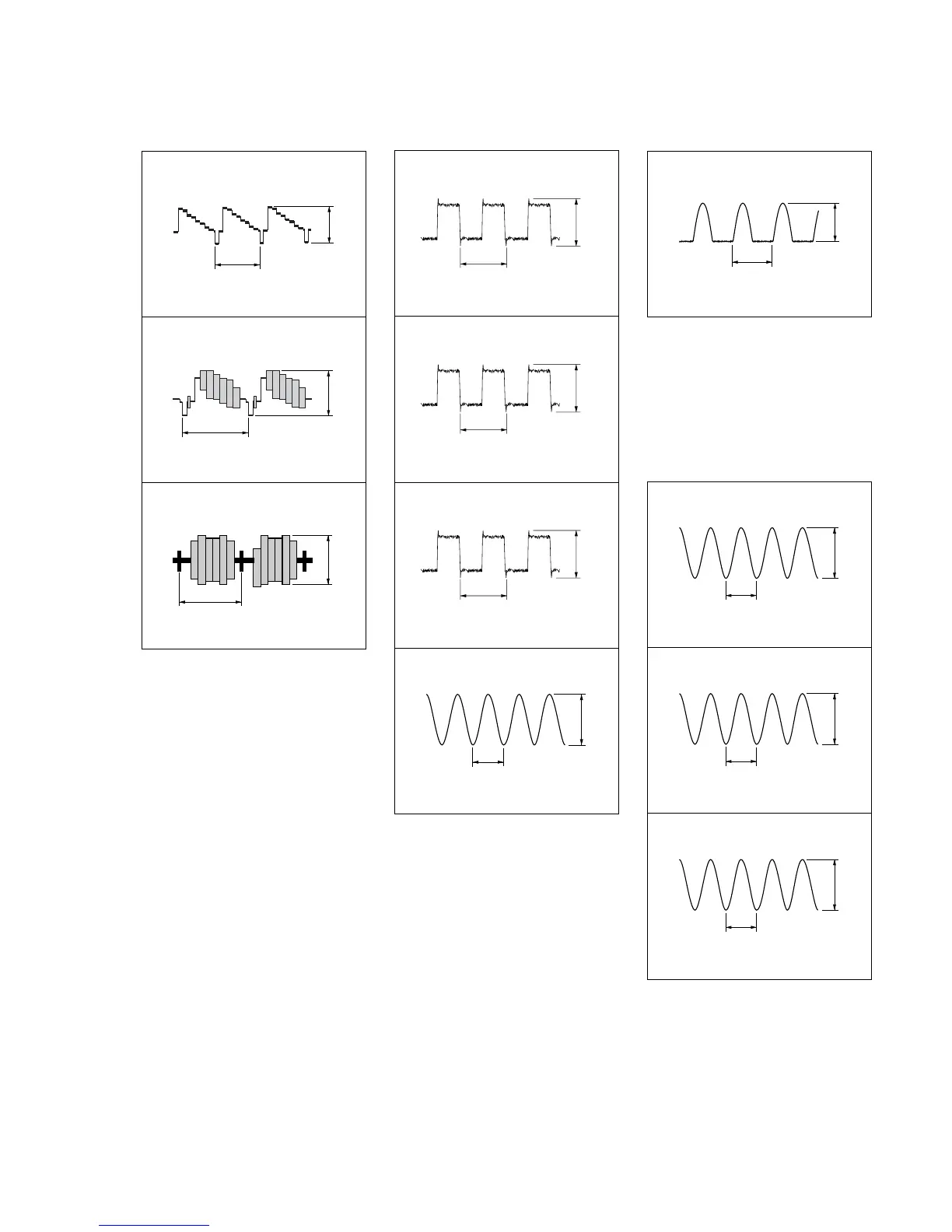

td
IC901 wh (YOUTb)
(DVD play mode)
1 V/DIV, 20 µ s/DIV
H
2 Vp-p
tg
IC901 es (C OUT)
(DVD play mode)
1 V/DIV, 20 µ s/DIV
H
1.6 Vp-p
tf
IC901 wl (VOUTb)
(DVD play mode)
1 V/DIV, 20 µ s/DIV
H
2.6 Vp-p
yd
IC506 qs (MCLK2)
1 V/DIV, 20 ns/DIV
72 ns
3.3 Vp-p
ys
IC505 wa (XOUT)
1 V/DIV, 20 ns/DIV
81.4 ns
3.4 Vp-p
ya
IC505 qd (CKOUT)
1 V/DIV, 20 ns/DIV
81.4 ns
3.4 Vp-p
yf
IC501 qd (XOUT)
1 V/DIV, 100 ns/DIV
200 ns
3.3 Vp-p
ua
IC271 4
2 V/DIV, 10 ns/DIV
20.4 ns
5 Vp-p
us
IC231 rk (XFSOIN)
2 V/DIV, 10 ns/DIV
20.7 ns
4.8 Vp-p
ud
IC231 qf (XFSOOUT)
2 V/DIV, 10 ns/DIV
20.7 ns
4.8 Vp-p
ia
Q841 1
5 V/DIV, 5 µ s/DIV
7.1 µ s
15 Vp-p
– MAIN Board – – FL Board –
– POWER-AMP Board –
