Sony HD-X1 - Power-Amp and IO Board Assembly

93
HCD-X1

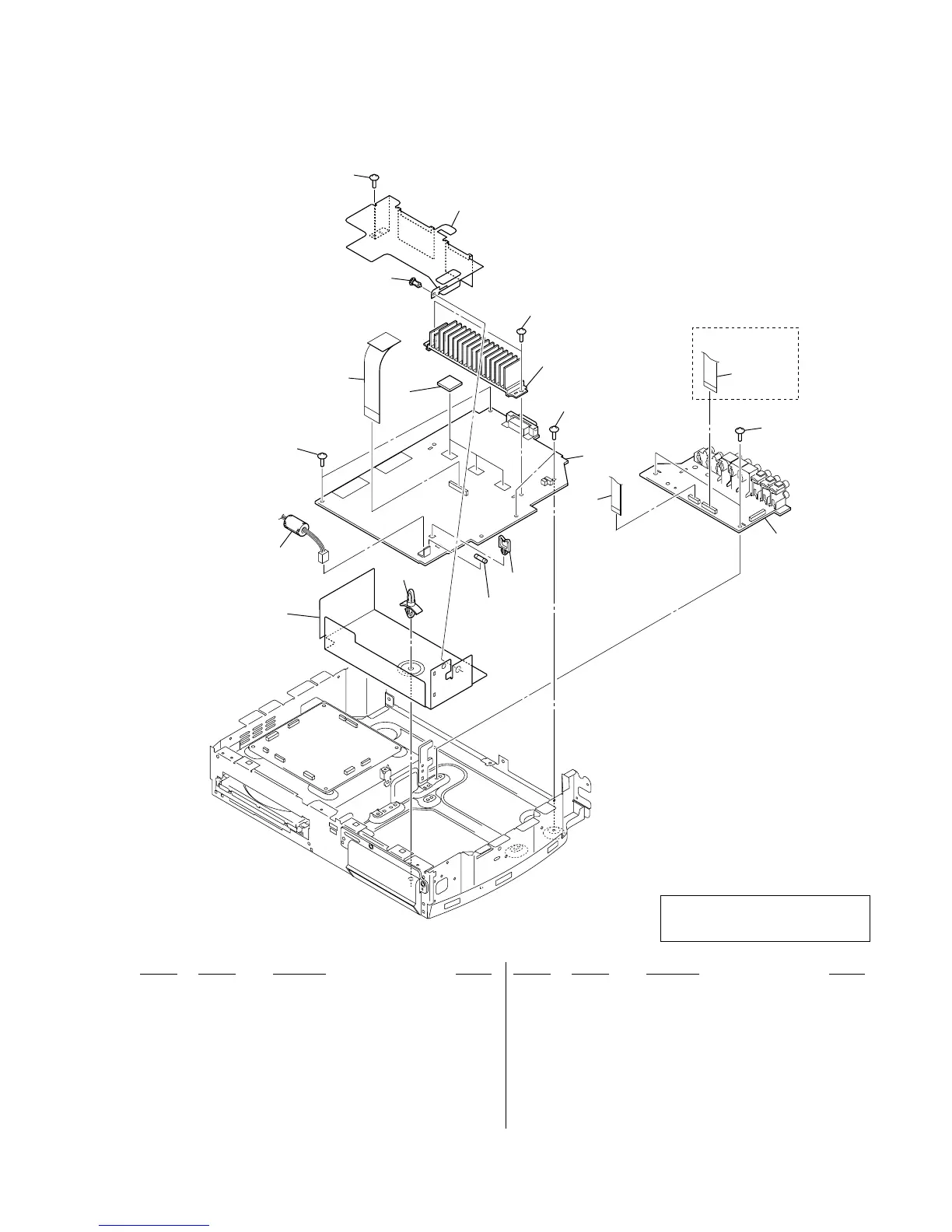

7-4. POWER-AMP BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 1-500-459-11 FILTER, CLAMP (FERRITE CORE)
152 A-1107-229-A POWER-AMP BOARD, COMPLETE (US, CND)
152 A-1107-230-A POWER-AMP BOARD, COMPLETE
(AEP, UK, RU, SP)
153 1-828-327-11 WIRE (FLAT TYPE) (13 CORE) (US, CND)
153 1-828-329-11 WIRE (FLAT TYPE) (13 CORE)
(AEP, UK, RU, SP)
154 A-1107-219-A IO BOARD, COMPLETE (US, CND)
154 A-1107-220-A IO BOARD, COMPLETE (AEP, UK, RU)
154 A-1108-020-A IO BOARD, COMPLETE (SP)
155 4-812-134-00 RIVET (DIA. 3.5), NYLON
156 3-077-331-01 +BV3 (3-CR)
157 1-828-367-11 WIRE (FLAT TYPE) (21 CORE)
158 1-828-990-11 WIRE (FLAT TYPE) (17 CORE) (AEP, UK, RU)
0 F101 1-533-454-12 FUSE, GLASS TUBE (DIA. 5) (6.3A/125V)
(US, CND)
0 F101 1-533-473-12 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
(AEP, UK, RU, SP)
not supplied
not supplied
not
supplied
F101
not supplied
not supplied
not
supplied
151
152
153
154
155
156
156
156
158
(AEP, UK, RU)
156
156
157
Note: If the wire (flat type) was replaced,
fold it same as the wire (flat type)
before replacement.
