Sony HDC1400 - Page 30

1-22
HDC1000/V2 (J, E)

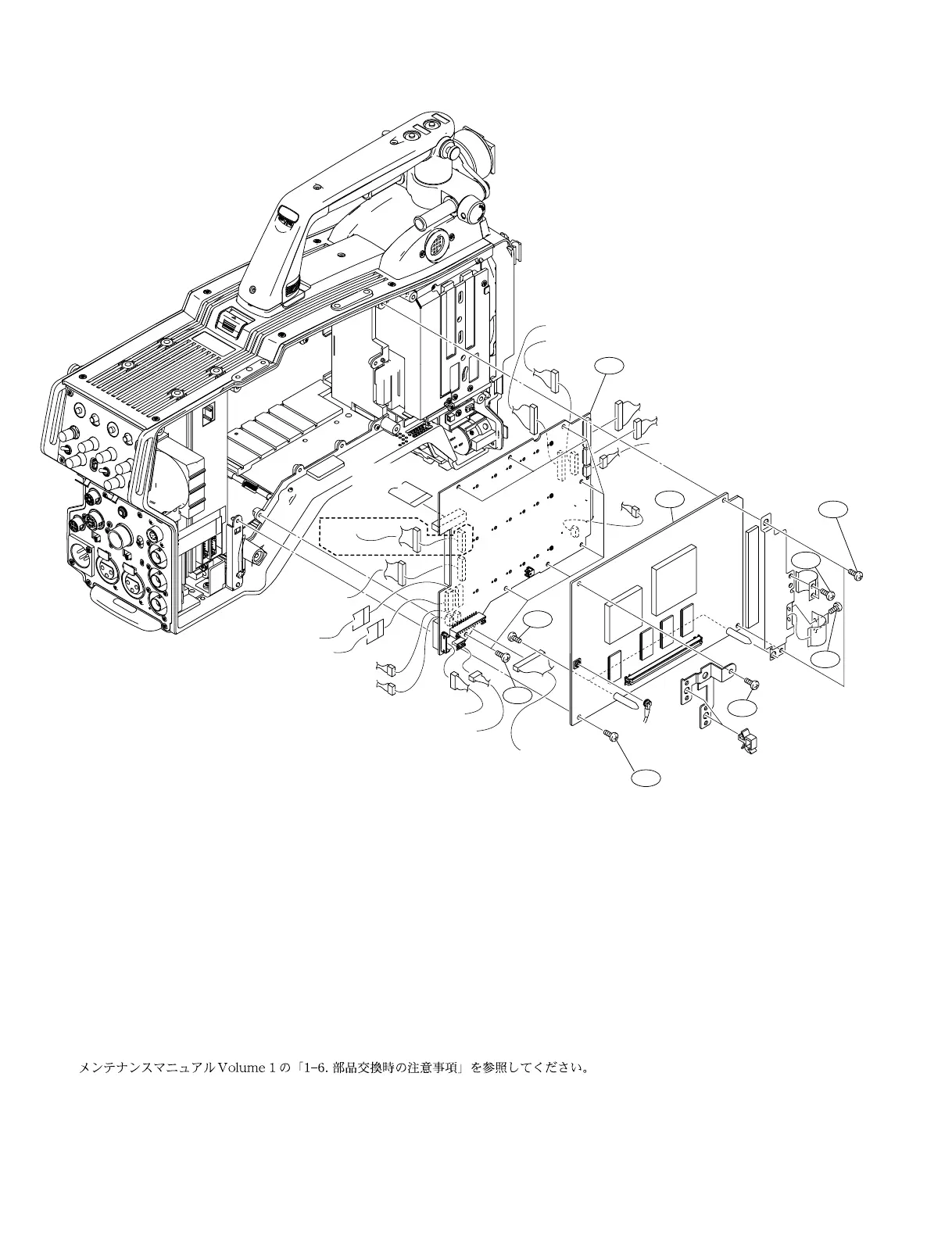

Mother Board Block (HDC1450/1550)
No. Part No. SP Description
1251 ! A-1101-927-A s MOUNTED CIRCUIT BOARD, DPR-265
1252 ! * A-1159-988-A s MOUNTED CIRCUIT BOARD, MB-1059G (GOLD)
*a
! * A-1101-928-A s MOUNTED CIRCUIT BOARD, MB-1059 (SILVER)
*a
! A-1251-714-A s MOUNTED CIRCUIT BOARD, MB-1059GA
*b
1253 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
1254 3-729-076-11 s SCREW +B2X4
* :
* : Refer to Section 1-6. “Notes for Replacing Parts” of the Maintenance Manual volume 1.
MB-1059GA only
To SWICHING REG.
To SDI
To DC FAN (REAR)
To CN-2619(CN2)
To SWICHING REG.
To CN-2617(CN7)
To CN-2614(CN3)
To CN-2616(CN2)
To CN-2615(CN3)
To CN-2617(CN9)
To DC FAN
(FRONT)
To SWICHING REG.
To HOT SHOE
BLOCK
To CN-2621GA
(CN8)
To CN-2621(CN1)
To CN-2619(CN1)
To SW-1273
(CN1)
1253
1253
1253
1252
1253
1253
1254
1254
1251
*a: Serial No. 10001 through 11018 (HDC1550: UC)
40001 through 40050 (HDC1550: CE)
400001 through 410061 (HDC1550: CE)
*b: Serial No. 10001 and higher (HDC1450: UC)
400001 and higher (HDC1450: CE)
11019 and higher (HDC1550: UC)
40051 and higher (HDC1550: CE)
410062 and higher (HDC1550: CE)
