Sony HDC1400 - Page 29

1-21
HDC1000/V2 (J, E)
MB-1059GA only
To SWICHING REG.
To SDI 2
To HOT SHOE BLOCK
To CN-2621GA
(CN8)
To CN-2619 (CN1)
To DC FAN (REAR)
To CN-2619(CN2)
To SWICHING REG.
To CN-2617(CN7)
To CN-2614(CN3)
To CN-2616(CN2)
To CN-2615(CN3)
To CN-2617(CN9)
To DC FAN
(FRONT)
To SWICHING REG.
To CN-2621(CN1)
To SW-1273
(CN1)
1203
1203
1202
1203
1203
1201

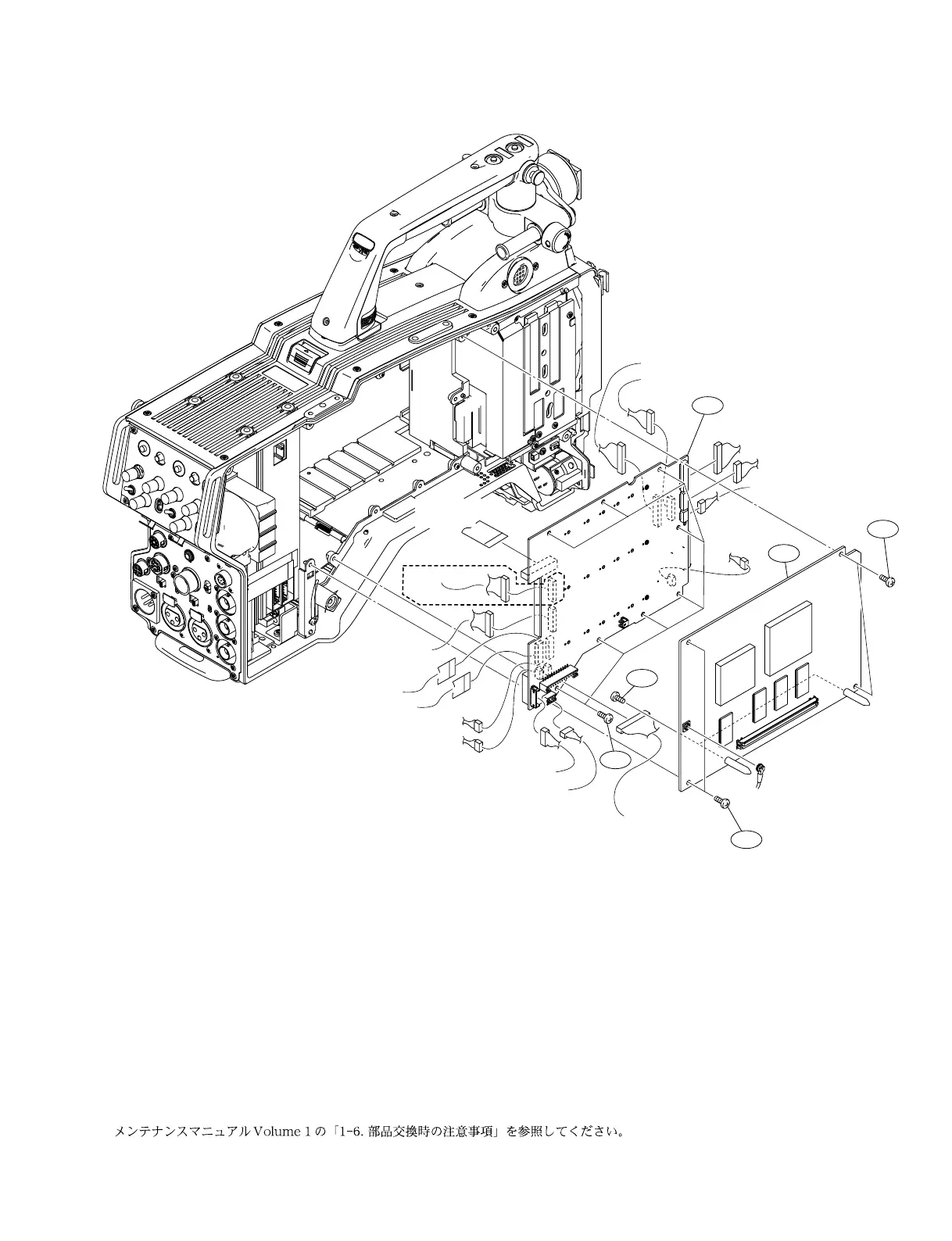

Mother Board Block (HDC1400/1500/1580/1600)
No. Part No. SP Description
1201 ! A-1101-927-A s MOUNTED CIRCUIT BOARD, DPR-265
(HDC1400/1500/1600)
! A-1179-310-A s MOUNTED CIRCUIT BOARD, DPR-265C
(HDC1580)
1202 ! * A-1159-988-A s MOUNTED CIRCUIT BOARD, MB-1059G (GOLD)
(HDC1500/1580/1600)
*a
! * A-1101-928-A s MOUNTED CIRCUIT BOARD, MB-1059 (SILVER)
(HDC1500/1600)
*a
! A-1251-714-A s MOUNTED CIRCUIT BOARD, MB-1059GA
(HDC1400/1500/1580/1600)
*b
1203 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
* :
* : Refer to Section 1-6. “Notes for Replacing Parts” of the Maintenance Manual volume 1.
*a: Serial No. 10001 through 13159 (HDC1500: SY)
30001 through 33046 (HDC1500: J)
40001 through 40120 (HDC1500: CE)
400001 through 400349 (HDC1500: CE)
50001 through 50070 (HDC1580: CN)
30001 through 33005 (HDC1600: J)
*b: Serial No. 10001 and higher (HDC1400: UC)
30001 and higher (HDC1400: J)
400001 and higher (HDC1400: CE)
50001 and higher (HDC1400: E)
13160 and higher (HDC1500: SY)
33047 and higher (HDC1500: J)
40121 and higher (HDC1500: CE)
400350 and higher (HDC1500: CE)
50001 and higher (HDC1500: E)
50071 and higher (HDC1580: CN)
33006 and higher (HDC1600: J)
