1-20
HDC1000/V2 (J, E)

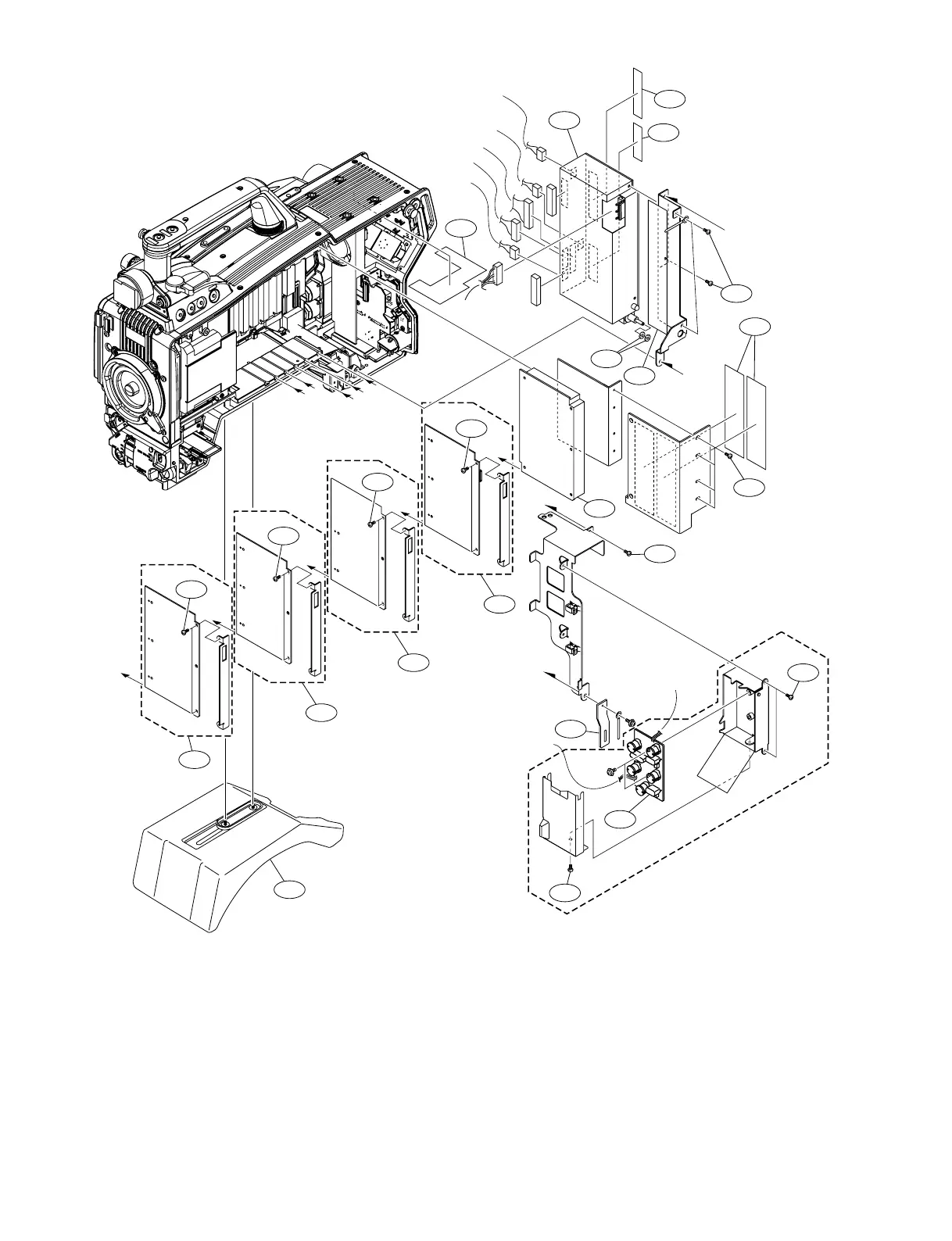

Board Block (HDC1450/1550)
No. Part No. SP Description
1151 ! A-1101-923-A s MOUNTED CIRCUIT BOARD, VDA-63
1152 ! A-1101-924-A s MOUNTED CIRCUIT BOARD, AU-298
1153 ! A-1101-925-A s MOUNTED CIRCUIT BOARD, DAP-33
1154 ! A-1101-926-A s MOUNTED CIRCUIT BOARD, AT-163
1155 ! A-1144-417-A s MOUNTED CIRCUIT BOARD, FL-338
1156 A-8286-163-A s PAD ASSY,SHOULDER
1157 ! 1-468-862-11 s REGULATOR, SWITCHING
1158 ! 1-478-790-11 s CONVERTER UNIT, DC-DC
1159 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
1160 3-872-590-01 s PORONSHEET(POWER)
No. Part No. SP Description
1161 3-872-620-01 s THERMATTACH TAPE(DD)
1162 3-872-621-01 s THERMATTACH TAPE(AC/DC)
1163 4-654-273-02 s ACE (M2), LOCK
1164 3-986-535-03 s BAND,HANGING(REAR)
1165 3-986-640-01 s SHEET,HEAT TRANS(DENGEN UPPER)
1166 3-986-641-01 s SHEET,HEAT TRANS(DENGEN LOWER)
1167 3-990-319-01 s SHEET,PROTECTION
7-621-759-65 s +PSW, 2.6X8
7-682-903-11 s SCREW +PWH 3X6
*1
*1
*2
*2
*3
*3
*4
*5
*4
*5
To MB-1059 (CN15)
To DC IN
To MB-1059 (CN14)
To CN-2621 (CN8)
To FL-338 (CN3)
To
HOT SHOE BLOCK
a
b
To OUTSIDE
PANEL BLOCK
To SWITCHING
REG.
b
a
PWH3 x 6
PSW
2.6 x 8
1157
1167
1162
1163
1154
1163
1163
1163
1163
1158
1152
1156
1153
1151
1159
1160
1161
1165
1166
1159
1159
1159
1155
1164
