11

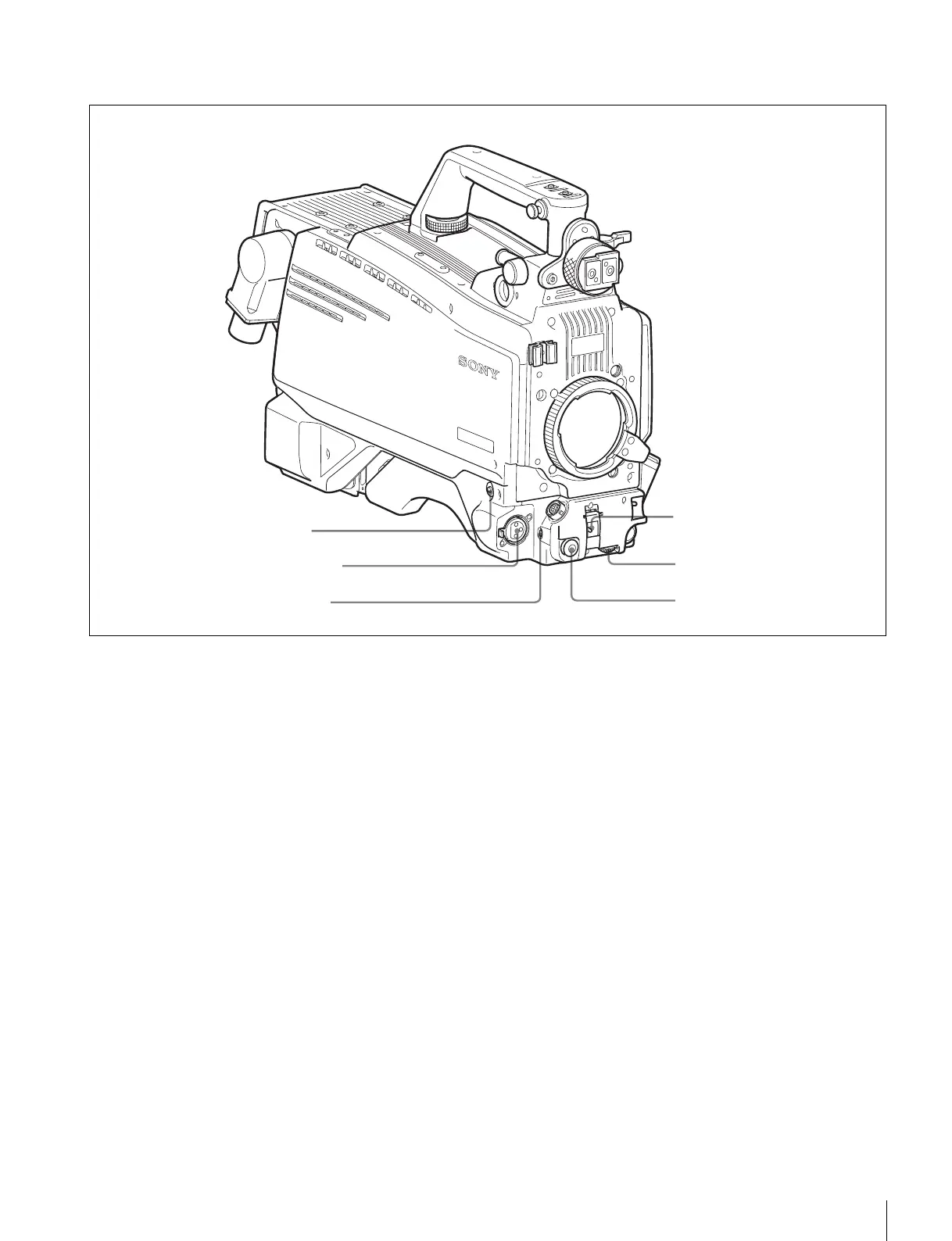

Locations and Functions of Parts
Front left
a RET 1 (return video 1) button
The return video 1 signal from the camera control unit is
monitored on the viewfinder screen while this button is
pressed. It function the same as the RET1 buttons on the
handle (page 9) and that on the operation panel on the rear
of the camera (page 13).
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
b MIC 1 IN (microphone 1 input) connector (XLR 3-
pin)
Connect a microphone.
This connector and the AUDIO IN CH-1 connector (page
14) on the operation panel on the rear of the camera are
alternately activated with the CH1 input select switch
(page 15).
c MIC (microphone) power switch
+48V: To supply a power of +48 V to the connected
microphone.
OFF: Not to supply a power to the connected microphone.
d SHUTTER switch
Used for setting the electronic shutter functions when the
camera is used in stand-alone status without connecting a
camera control unit.
OFF: The electronic shutter does not function.
ON: The electronic shutter is activated.
SEL: The shutter speed and shutter mode change each
time the switch is set to this position.
For details, see “Setting the Electronic Shutter” on page
22.
e INTERCOM LEVEL control
To adjust the intercom/earphone volume level.
The intercom level adjustment is enabled when the
LEVEL switch (page 13) on the operation panel on the rear
of the camera are set to “FRONT.”
f RET 2 (return video 2) button
When this button is pressed, the picture on the viewfinder
changes to the return video signal selected with the RET 2
select switch (page 13) on the operation panel on the rear
of the camera.
You can also assign other functions to this button, using the
menu displayed on the viewfinder screen.
d SHUTTER switch
e INTERCOM LEVEL control
f RET 2 button
b MIC 1 IN connector
a RET 1 button
c MIC power switch
To Next Page
