1-15
HDC1000/V2 (J, E)
Chassis Block (HDC1000/1100)
No. Part No. SP Description
801
!
*
A-1166-186-A s MOUNTED CIRCUIT BOARD, CN-2609G (GOLD)
!
*
A-1123-671-A s MOUNTED CIRCUIT BOARD, CN-2609 (SILVER)
802 A-8273-198-B o CONNECTOR ASSY, OPT
803
!
1-443-820-11 s TRANSFORMER, POWER
804
!
1-468-861-13 s REGULATOR, SWITCHING
805
!
1-533-514-31 s BREAKER, CIRCUIT (for HDC1000(UCJ,J)/1100(J))
!
1-533-514-61 s BREAKER, CIRCUIT (for HDC1000(CE))
806
!
1-533-515-31 s BREAKER, CIRCUIT (for HDC1000(UCJ,J)/1100(J))
!
1-533-515-61 s BREAKER, CIRCUIT (for HDC1000(CE))
807
!
1-570-173-11 s SWITCH,VOLTAGE CHANGE
808 1-830-746-11 s CABLE ASSEMBLY, ENCAPSULAT (M)
(Made by LEMO)
1-830-750-11 s OPTICAL MULTI CABLE ASSEMBLY
(Made by TAJIMI)
809 3-176-525-01 o WASHER, SPRING (ST)
810 3-364-941-01 s SCREW (+B) (2.6X5),NYLOK
811 3-602-404-02 s HOUSING, CONECTOR
812 3-602-460-03 o SHAFT, CONNECTOR
813 3-602-461-01 o NUT, CONNECTOR
814 3-602-464-01 o WASHER, CONDUCTIVE
815 3-602-491-01 o PLATE,FIBER
816 3-725-907-01 s BUSHING,BLIND
817 4-644-493-11 s SCREW(M2.6X4), LOCK ACE
7-623-923-01 s WASHER,POLYETHYLENE 2.6
7-627-556-77 s SCREW,PRECISION +P2.6X6 TYPE 1
7-682-248-04 s SCREW +K 3X8
7-682-548-04 s SCREW +B3X8
7-682-549-09 s SCREW +B 3X10
7-682-903-01 s SCREW +PWH 3X5
7-682-947-01 s SCREW +PSW 3X6
7-682-961-01 s SCREW +PSW 4X8
7-685-534-14 s SCREW +BTP2.6X8
*
:
*

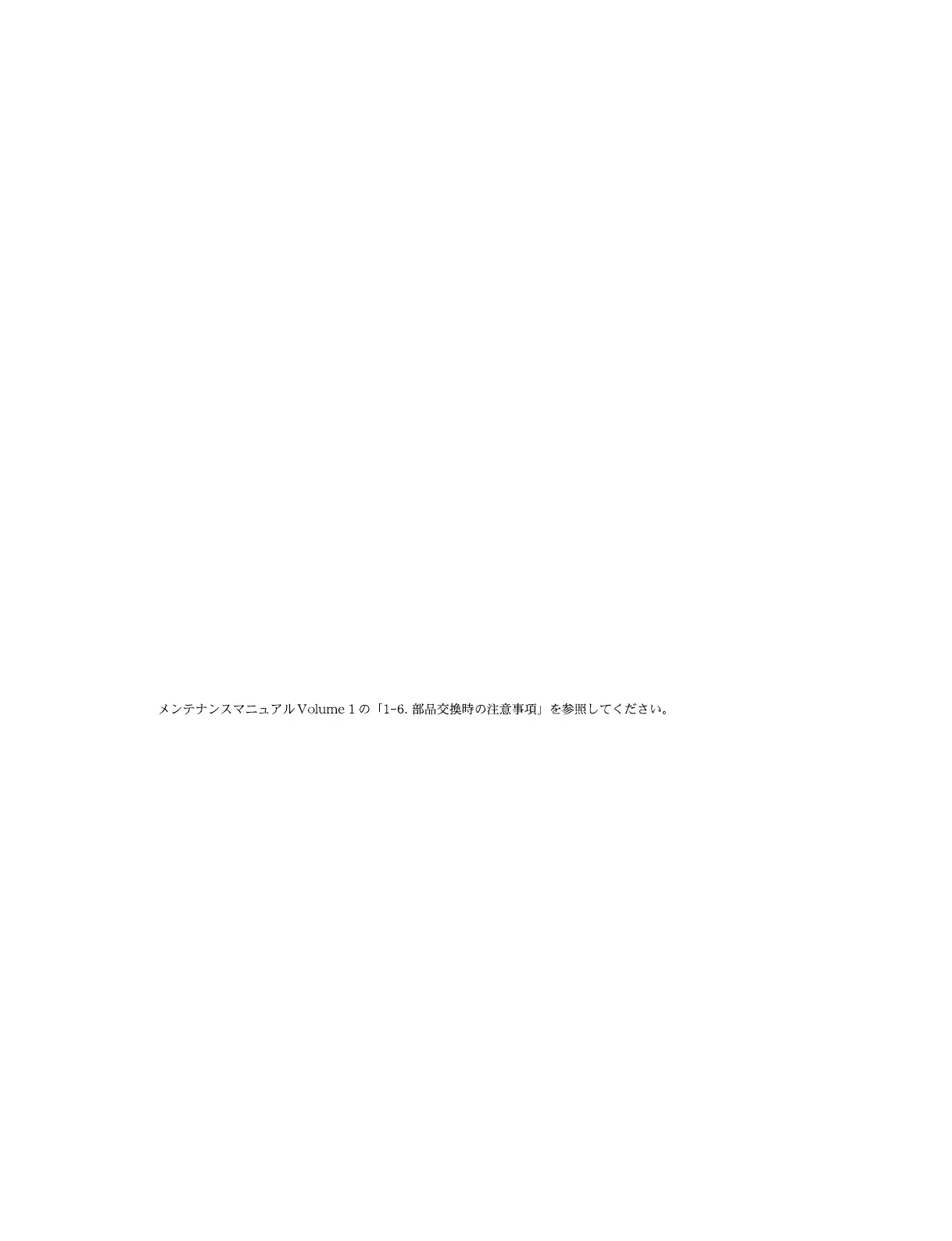

: Refer to Section 1-6. “Notes for Replacing Parts” of the Maintenance Manual volume 1.
