HDR-UX3E/UX5/UX5E/UX7/UX7E_L2
HELP

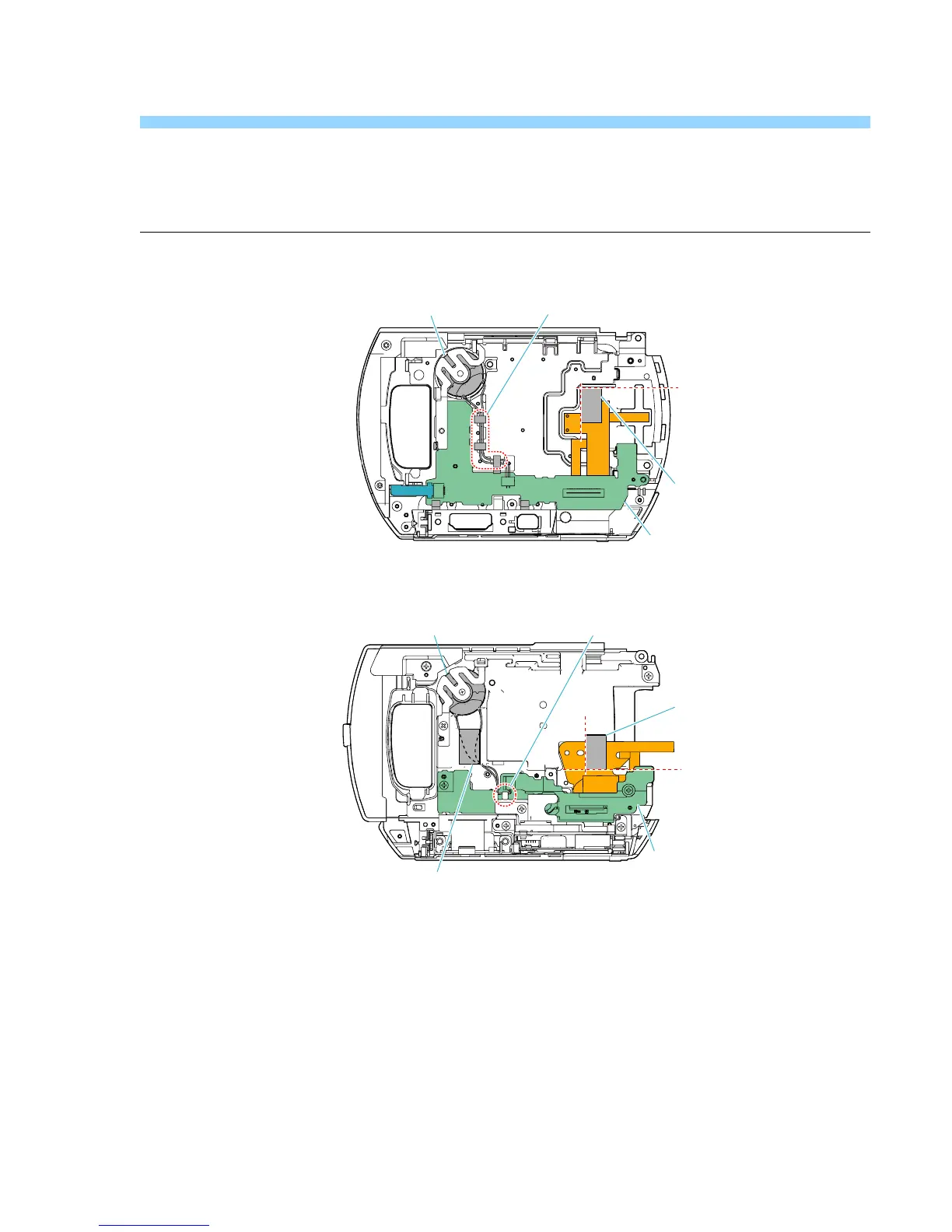

Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown.
CK-176 board
Loud speaker
Tape (W)
Tape (W)
Tape (W)
Harness arrangement
UX3E/UX5/UX5E
CK-169 board
Loud speaker Harness arrangement
UX7/UX7E
