Sony HDR-UX3E - Power Block Diagram (5;5)

3-13E
HDR-UX3E/UX5/UX5E/UX7/UX7E_L2

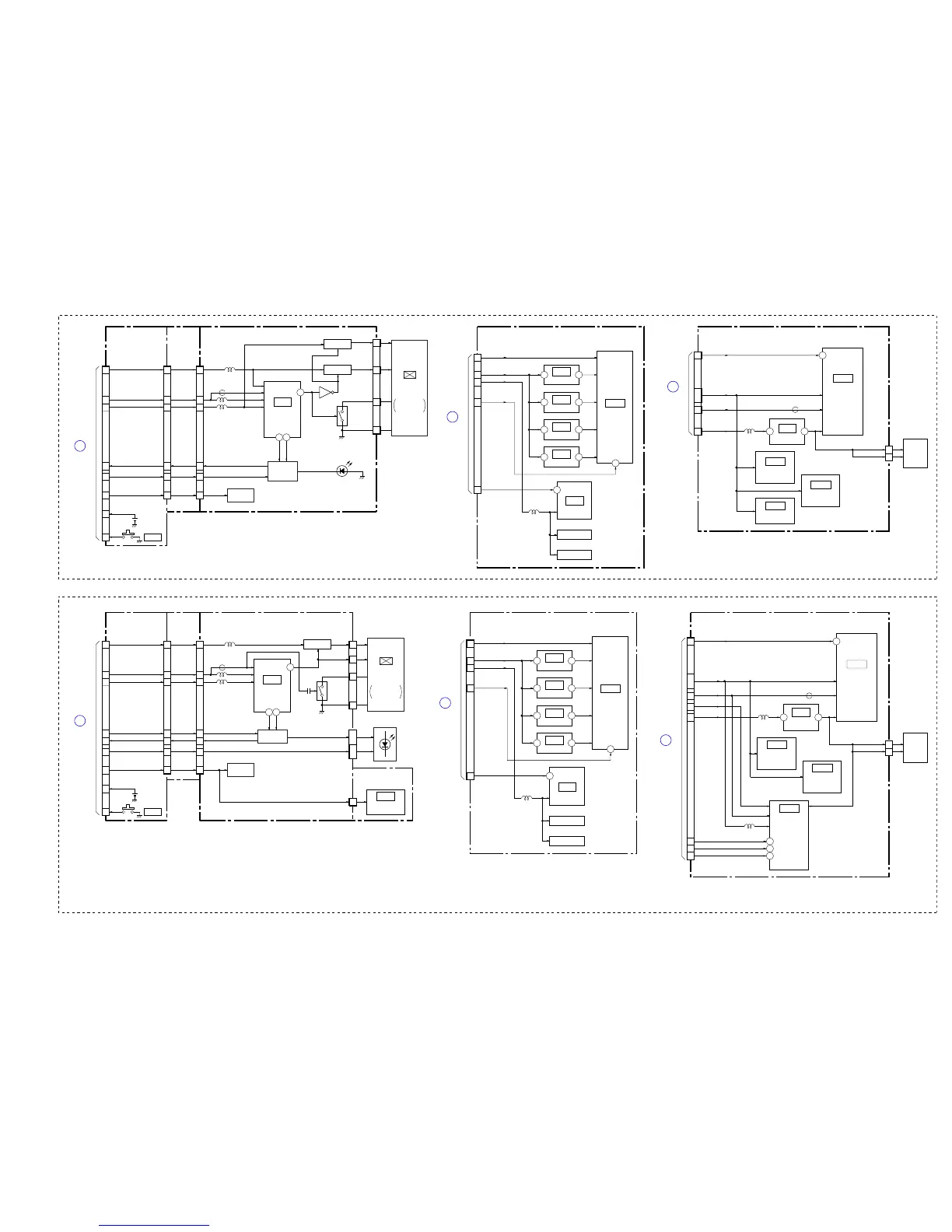

3-13.POWER BLOCK DIAGRAM (5/5)
( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
5, 6
IC5401
FOCUS MOTOR
NOISE FILTER
IC5403
ZOOM MOTOR
NOISE FILTER
IC5402
ZOOM MOTOR
NOISE FILTER
Z_MR_VCC
CN5302
15
F_MR_VCC
20
MT_5.0V
XIC_5404_RST
30
D_2.8V
9
A_4.6V
8
CN5304
A_-1.0V
15
A_4.1V
14
A_2.8V
10
XSYS_RST
11
VST_C_RESET
9
CN6801
FB5401
IC6901
4M CMOS
IMAGER
17 CRST
L5403
4 3
2.8V REG
IC5405
L8201
4 3
3.3V REG
IC6801
4 3
3.3V REG
IC6803
LD-215 BOARD
CM-076 BOARD
4 3
1.5V REG
IC6804
4 3
2.8V REG
PITCH SENSOR
SE8202
IC6802
PITCH/YAW
SENSOR AMP
IC8201
XCLR
27
YAW SENSOR
SE8201
POWER (4/5)
(PAGE 3-12)
H1
POWER (4/5)
(PAGE 3-12)
J1
5, 6
IC5403
ZOOM MOTOR
NOISE FILTER
(1/2)
IC5402
ZOOM MOTOR
NOISE FILTER
(1/2)
IC5703
OPTICAL IMAGE
STABILIZATION
DRIVE
(2/2)
D_2.8V MT_5.0V
LENS
BLOCK
LENS
BLOCK
Z_MR_VCC
CN5302
19
F_MR_VCC
15
MT_5.0V
XIC_5404_RST
30
D_2.8V
9
A_4.6V
8
CN5304
A_-1.0V
15
A_4.1V
14
A_2.8V
10
XSYS_RST
11
VST_C_RESET
9
CN6601
FB5401
IC5404
FOCUS/ZOOM/NF
MOTOR DRIVE,
ND FILTER
DRIVE,
IRIS DRIVE
(1/2)
H11 XCLR
IC5404
FOCUS/ZOOM/NF
MOTOR DRIVE,
ND FILTER
DRIVE,
IRIS DRIVE
H11 XCLR
D_1.5V
7
IC6701
6M CMOS
IMAGER
17 CRST
L5403
VST_C_RST
33
XSYS_RST
32
XRST_IC_5703_CPU
31
4 3
2.8V REG
(1/2)
IC5405
L7201
4 3
3.3V REG
IC6603
4 3
3.3V REG
IC6605
LD-216 BOARD
CM-077 BOARD
4 3
1.8V REG
IC6606
4 3
2.8V REG
PITCH SENSOR
SE7202
IC6604
PITCH/YAW
SENSOR AMP
IC7201
XCLR
10
YAW SENSOR
SE7201
L5701
A6 ADL
A7 RESET_N
D5 CPU_PIO_0
POWER (4/5)
(PAGE 3-12)
H2
POWER (4/5)
(PAGE 3-12)
J2
UX3E/UX5/UX5E
UX7/UX7E
05
LCD DRIVE
IC6101
IC001
B+ SWITCH
Q6107, 6109
17
6
15
239
FP-578
FLEXIBLE
BOARD
FP-454 FLEXIBLE
BOARD
18
PD-316 BOARD
CN6101
EP_2.8V
EP_8.5V
EP_8.5V
EP_4.6V
Q6108
XSTBY
VDD
14
XSTBY
VSS
VSSG
CN6104
CN6103
10
3118
BACKLIGHT
DRIVE
TOUCH
PANEL I/F
Q6103-6105
PWM EXTDA
BL_H
BL_L
BL_V
BL_-V
BL_CONT
D_2.8V
EP_2.8V
EP_8.5V
EP_4.6V
BL_V
BL_-V
BL_CONT
D_2.8V
D_2.8V
Q6101, 6102
2210
CN6106
LCD901
D901
BACKLIGHT
3.5 inch
WIDE COLOR
LCD UNIT
FB6101
L6101
L6103
PANEL REVERSE
DETECT
5, 61, 2
WITH TOUCH
PANEL
248
1913
626
527
L6102
23
CN8007
CK-169 BOARD
CN8008
22
24
21
6
5
32
31
4 28 4
BT8001
(LITHIUM BATTERY)
S8001
RESET
POWER (3/5)
(PAGE 3-11)
G2
LCD DRIVE
IC6201
B+ SWITCH
Q6211
14
15
1717
FP-537
FLEXIBLE
BOARD
17
PD-325 BOARD
CN6202
EP_2.8V
EP_8.5V
EP_8.5V
EP_4.6V
Q6207,
6210
CSD
VDDG
VDD
11
VGND
VSS
CN6205
67
5321
BACKLIGHT
DRIVE
TOUCH
PANEL I/F
Q6209, 6213-6215
BLON_P EXTDA
BL_L
BL_-V
BL_CONT
D_2.8V
EP_2.8V
EP_8.5V
EP_4.6V
BL_-V
BL_CONT
D_2.8V
Q6201, Q6202
11
LCD901
D6206-6208
BACKLIGHT
2.7 inch
WIDE COLOR
LCD UNIT
FB6201
L6201
L6203
WITH TOUCH
PANEL
22
1414
33
L6202
B+ SWITCH
Q6212
23
CN8107
CK-176 BOARD
CN8109
22
24
6
5
32
31
4 16 16
BT8101
(LITHIUM BATTERY)
S8101
RESET
POWER (3/5)
(PAGE 3-11)
G1
Q6208
