Sony HDR-UX3E - Exploded Views

5-2
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-UX3E/UX5/UX5E/UX7/UX7E_L2
3
4
1
2
#10
#10
#3
#2
#2
#10
#2
#14 (UX3E/UX5/UX5E)
#10 (UX7/UX7E)
(UX7/UX7E)
#10
#2
#2
#2
Front Panel Block
(See Page 5-3)
Cabinet (R) Block
(See Page 5-8, 5-9)
Shoe Block Ass
y
(See Page 5-14)
#10
#10
#2
(UX3E/UX5/UX5E)
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description

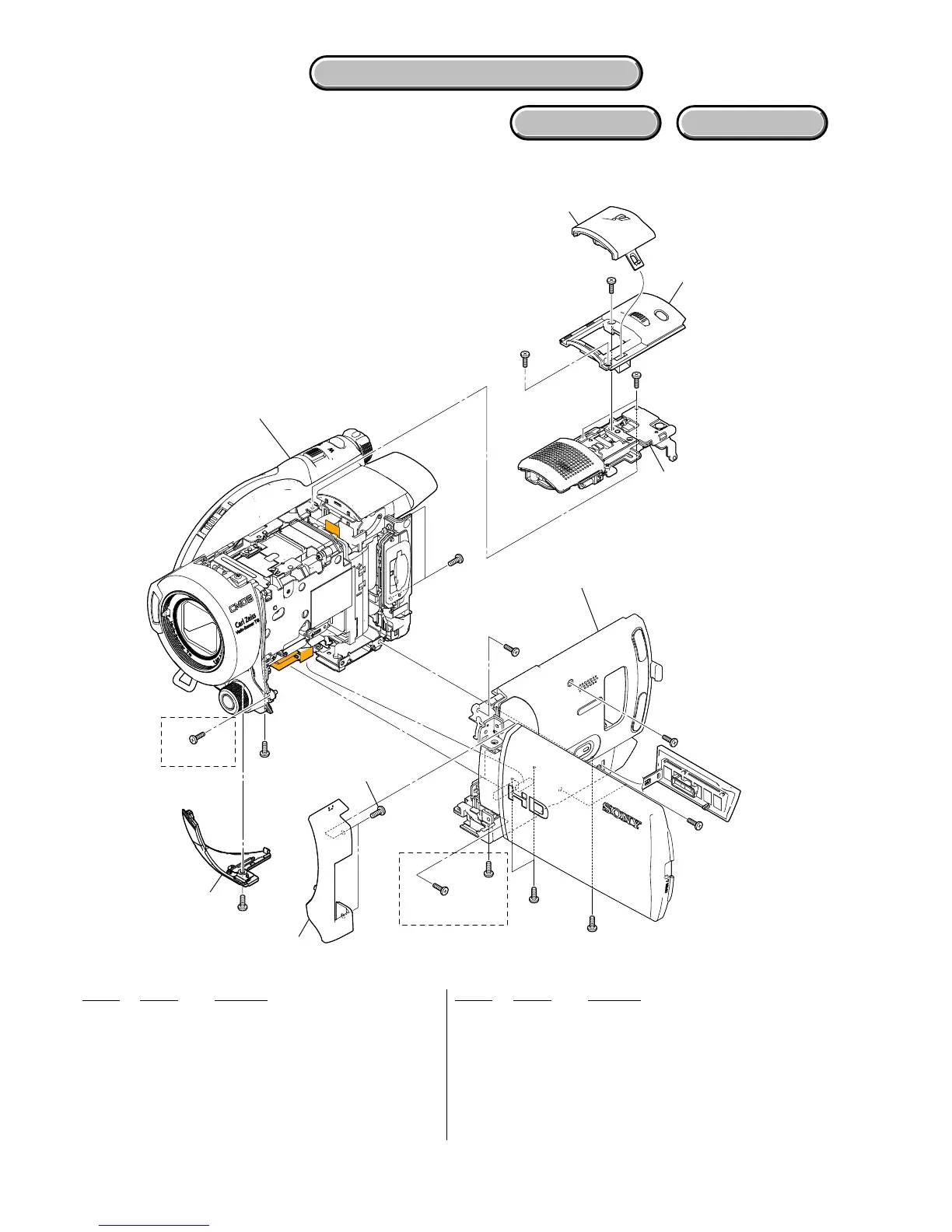

5-1-1. OVERALL SECTION
5-1. EXPLODED VIEWS
Ref. No. Part No. Description
1 X-2176-850-1 COVER ASSY (252), FRONT (UX7/UX7E)
1 X-2176-851-1 COVER ASSY (251), FRONT (UX3E/UX5/UX5E)
2 3-096-414-01 COVER (R (252)), HINGE (UX7/UX7E)
2 3-096-415-01 COVER (R (251)), HINGE (UX3E/UX5/UX5E)
3 X-2176-849-1 COVER ASSY (252), SHOE
4 X-2176-846-1 CABINET ASSY (251), TOP (UX5: J)
4 X-2176-847-1 CABINET ASSY (251), TOP
(UX3E/UX5: US, CND, E, KR/UX5E)
4 X-2176-844-1 CABINET ASSY (252), TOP (UX7: J)
4 X-2176-845-1 CABINET ASSY (252), TOP
(UX7: US, CND, E, KR, JE/UX7E)
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#14 2-599-475-11 SCREW (M1.7) (Silver)
