5-3
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-UX3E/UX5/UX5E/UX7/UX7E_L2
51
52
#3
#3
#3
#68
#23
EVF Block
(See Page 5-6)
BT Panel Block
(See Page 5-7)
Main Board Section
(See Page 5-4)
Lens Block
(See Page 5-12, 5-13)
#2
#2
#2
#2
#23
#23
#23
#68
#3
53
54
56
57
(Note)
55
(UX7/UX7E)
(UX3E/UX5/UX5E)
(UX7/UX7E)
59
#3
#3
#68
#23
#23
#23
53
54
58
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
51 1-479-941-11 SWITCH BLOCK, CONTROL (RS25200)
(UX7/UX7E)
52 X-2176-860-1 PANEL ASSY (252), F (UX7: J)
52 X-2176-861-1 PANEL ASSY (252), F
(UX7: US, CND, E, KR, JE/UX7E)
53 A-1217-971-A LENS BARRIER UNIT
* 54 3-096-381-01 CLAMP, LB FLEXIBLE
* 55 3-941-343-01 TAPE (A)
56 A-1239-334-A FR-263 BOARD, COMPLETE (UX7/UX7E)
* 57 3-096-382-01 COVER, STROBOSCOPE
58 A-1239-335-A FR-265 BOARD, COMPLETE (UX3E/UX5/UX5E)
59 X-2176-862-1 PANEL ASSY (251), F (UX3E/UX5/UX5E)
#2 2-635-562-31 SCREW (M1.7) (Black)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#68 2-655-581-01 SCREW 0+P2 M1.7 NEW TRU-STAR (Silver)

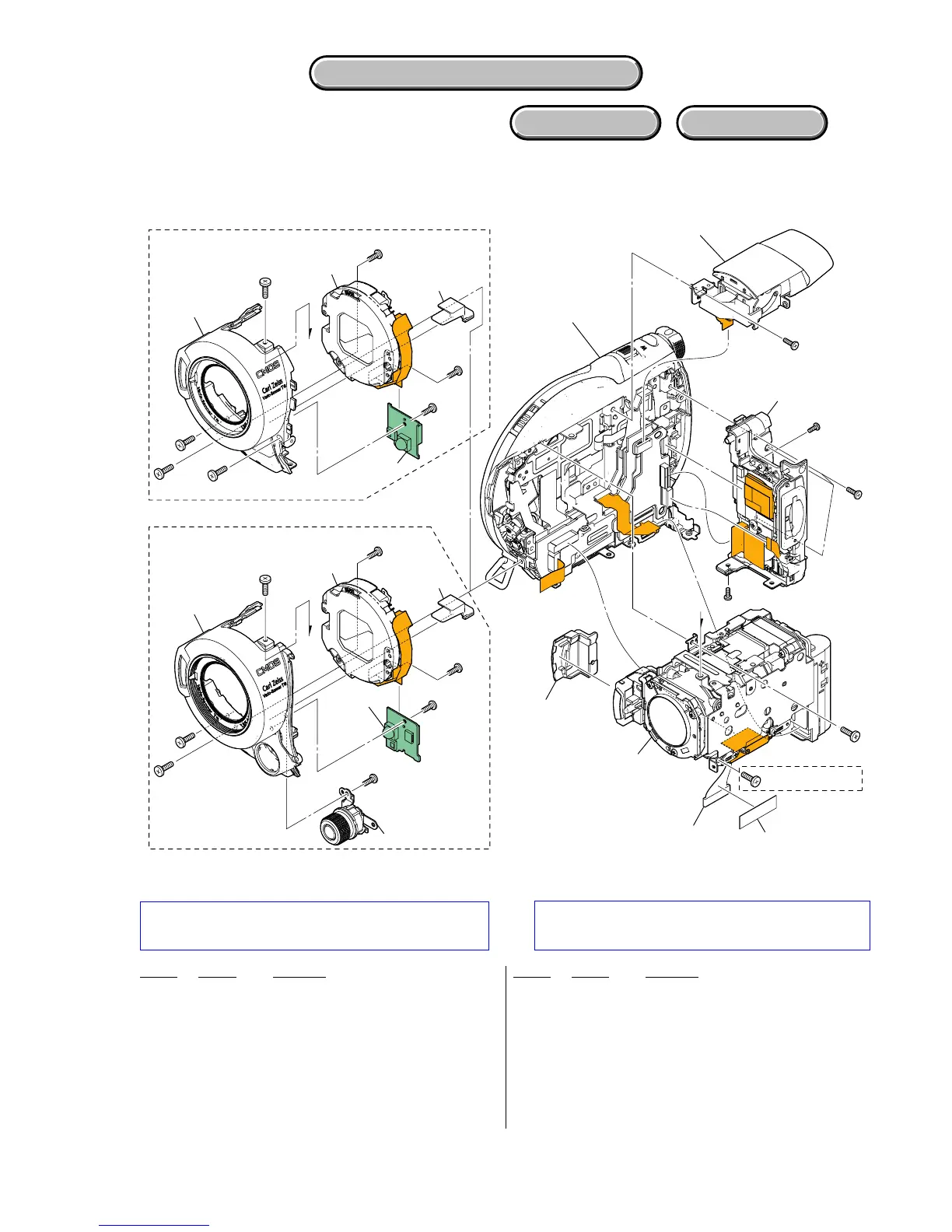

5-1-2. FRONT PANEL BLOCK
Note: Refer to page 2-1 “Note for disconnecting the harness (HN-
045/HN-046)” when changing the harness (HN-045/HN-
046).
Note: ハーネス（HN-045/HN-046）の交換時は2-1 ページの
Notefordisconnectingtheharness(HN-045/HN-046)
を参照してください。
