5-4
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-UX3E/UX5/UX5E/UX7/UX7E_L2
108
107
109
110
106
(Note)
104
105
111
112
103
102
101
113
116
119
116
103
116
117
MD-134
VC-487
DH-
042
114
118
103
#3
Cabinet (L) Section
(See Page 5-5)
#3
#10
#1
6
#3
115
(UX7/UX7E)

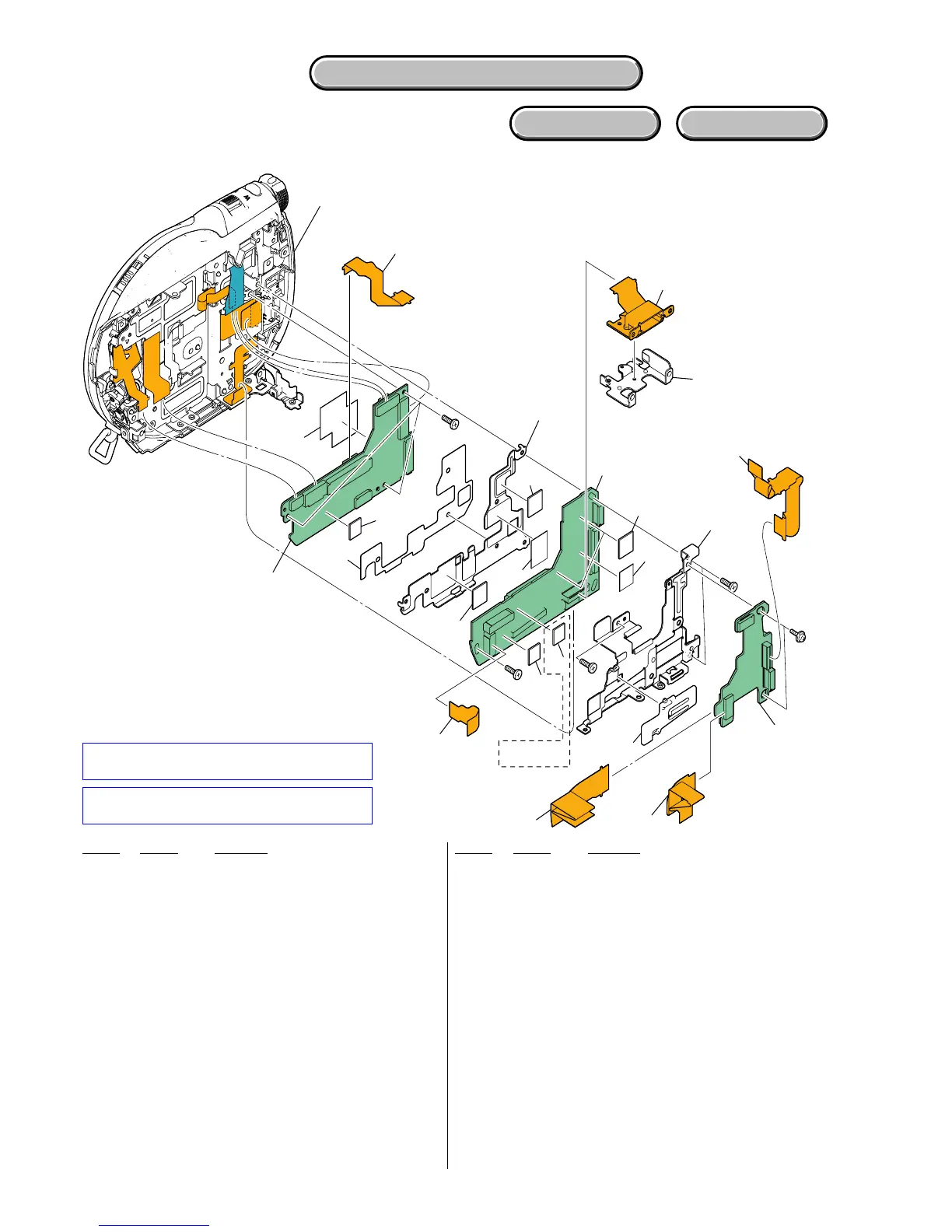

5-1-3. MAIN BOARD SECTION
DISASSEMBLY
HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
101 1-871-346-11 FP-584 FLEXIBLE BOARD
102 1-871-341-11 FP-579 FLEXIBLE BOARD
* 103 3-096-301-01 SHEET (252), AFE RADIATION
* 104 3-096-293-01 PLATE (MI), FIXED
105 A-1239-328-A FP-580 FLEXIBLE BOARD, COMPLETE
106 A-1239-743-A VC-487 BOARD, COMPLETE (SERVICE) (UX7)
(Note)
106 A-1239-744-A VC-487 BOARD, COMPLETE (SERVICE) (UX7E)
(Note)
106 A-1239-745-A VC-487 BOARD, COMPLETE (SERVICE) (UX5)
(Note)
106 A-1239-746-A VC-487 BOARD, COMPLETE (SERVICE) (UX5E)
(Note)
106 A-1239-747-A VC-487 BOARD, COMPLETE (SERVICE) (UX3E)
(Note)
107 A-1239-749-A MD-134 BOARD, COMPLETE (SERVICE)
(UX7/UX7E)
107 A-1239-750-A MD-134 BOARD, COMPLETE (SERVICE)
(UX3E/UX5/UX5E)
* 108 3-099-883-01 SHEET, JP
* 109 3-096-290-01 SHEET (MD), INSULATING
* 110 3-096-289-01 HEAT SINK (MD (252))
* 111 X-2176-852-1 HEAT SINK (VC) ASSY (252)
* 112 3-096-302-01 HOLDER (FPC)
113 A-1239-324-A DH-042 BOARD, COMPLETE (UX7)
113 A-1239-325-A DH-042 BOARD, COMPLETE (UX7E)
113 A-1239-326-A DH-042 BOARD, COMPLETE (UX5)
113 A-1239-327-A DH-042 BOARD, COMPLETE (UX3E/UX5E)
114 1-870-995-11 FP-540 FLEXIBLE BOARD
115 1-871-348-11 FP-586 FLEXIBLE BOARD
* 116 3-096-298-01 SHEET (252), VC RADIATION
* 117 3-096-300-01 SHEET, VCB INSULATING
118 1-870-987-11 FP-532 FLEXIBLE BOARD
* 119 3-099-881-01 SHEET (252), EX RADIATION
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#16 2-586-337-01 SCREW, MD (Silver)
Note: Refer to page 2-4 “Note” when changing the VC-
487 board.
Note: VC-487基板の交換時は2-4ページのNote
を参照してください。
