5-13
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-UX3E/UX5/UX5E/UX7/UX7E_L2
HARDWARE LIST

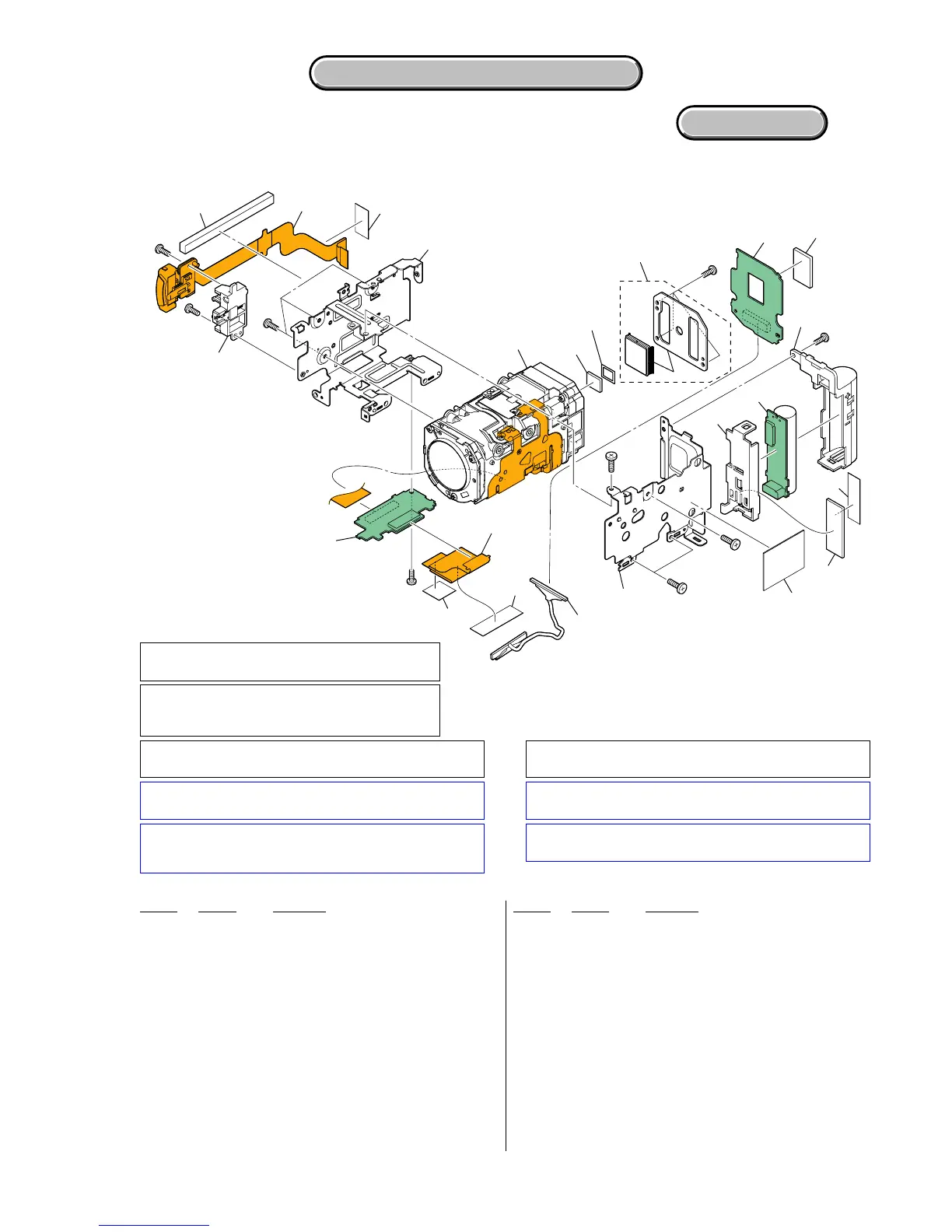

5-1-12. LENS BLOCK (UX7/UX7E)
ns: not supplied
Ref. No. Part No. Description Ref. No. Part No. Description
551 X-2176-859-1 HOLDER ASSY, ST
552 CAUTION TAPE (W)
* 553 3-096-388-01 FRAME (L (252)), LENS
554 A-1227-735-A LSV-1190A (SERVICE)
555 1-788-558-11 FILTER BLOCK, OPTICAL
556 2-698-010-01 RUBBER (1190), SEAL
557 A-1248-231-A CM-077 BOARD, COMPLETE (SERVICE)
* 558 3-096-389-01 SHEET (252), CD RADIATION
* 559 3-096-305-01 HOLDER (R), CONDENSER
560 A-1239-330-A ST-154 BOARD, COMPLETE
* 561 3-096-303-01 HOLDER (F), CONDENSER
* 562 3-099-880-01 SHEET (252), CMR RADIATION
* 563 3-096-384-01 HEAT SINK (252), CM
564 A-1239-332-A LD-216 BOARD, COMPLETE
565 1-870-985-11 FP-530 FLEXIBLE BOARD
* 566 3-198-148-01 CUSHION (R), LENS FRAME
* 567 3-941-343-01 TAPE (A)
* 568 1-965-256-71 HARNESS (HN-045) (Note 3)
0 569 1-479-888-21 FLASH UNIT
* 570 3-096-314-01 SHEET, LD
571 1-481-251-11 CORE, FERRITE
IC6701 A-1209-688-A CMOS BLOCK ASSY (CMOS IMAGER)
(Note 1, 2)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2 (Red)
#10 2-599-475-31 SCREW (M1.7) (Silver)
#23 3-080-204-11 SCREW, TAPPING, P2 (Black)
#69 2-599-475-21 SCREW (M1.7) (Silver)
558
557
556
555
554
559
562
563
568
(Note 3)
567
565
564
553
551
#69
#23
#23
569
#3
#3
#23
IC6701
(Note 1, 2)
#3
#23
#10
570
571
567
561
560
CM-077
552
(15mm x 9mm)
566
ns
Note 2: イメージャの交換時は4-4ページの “イメージャ交換時
の注意”を必ずお読みください。
Note 2: Be sure to read “Precuations for Replacement of Imager”
on page 4-3 when changing the imager.
• Refer to page 5-1 for mark 0.
Note 1: IC6701は交換対象ではありませんが，CMOS部組に含
まれます。
Note 3: ハーネス（HN-045）の交換時は2-1ページのNotefor
disconnectingtheharness(HN-045/HN-046)を参照し
てください。
CAUTION:
552番は，T0.25ヒメロン（3-076-631-01）を切って使用。
CAUTION:
For the part of 552, cut WOVEN (T0.25), FABRIC NON
(3-076-631-01) into the desired length and use it.
Note 1: IC6701 is not supplied, but this is included in CMOS block
assy.
Note 3: Refer to page 2-1 “Note for disconnecting the harness
(HN-045/HN-046)” when changing the harness (HN-045).
