Chapter 3 Preparations
Chapter 3 Preparations 3-1
This unit can input serial digital signals (video and
audio) from another digital VTR such as the HDW-
500/F500/2100/M2100/M2100P. The following
75Ω
75Ω
REMOTE 1-IN(9P)
REMOTE
1-OUT(9P)
HDSDI OUTPUT
SDI OUTPUT 3
HDSDI INPUT
REF. VIDEO INPUT
REF. VIDEO INPUT
REF. VIDEO
INPUT
3-1 Connections to External Devices
Chapter 3 Preparations

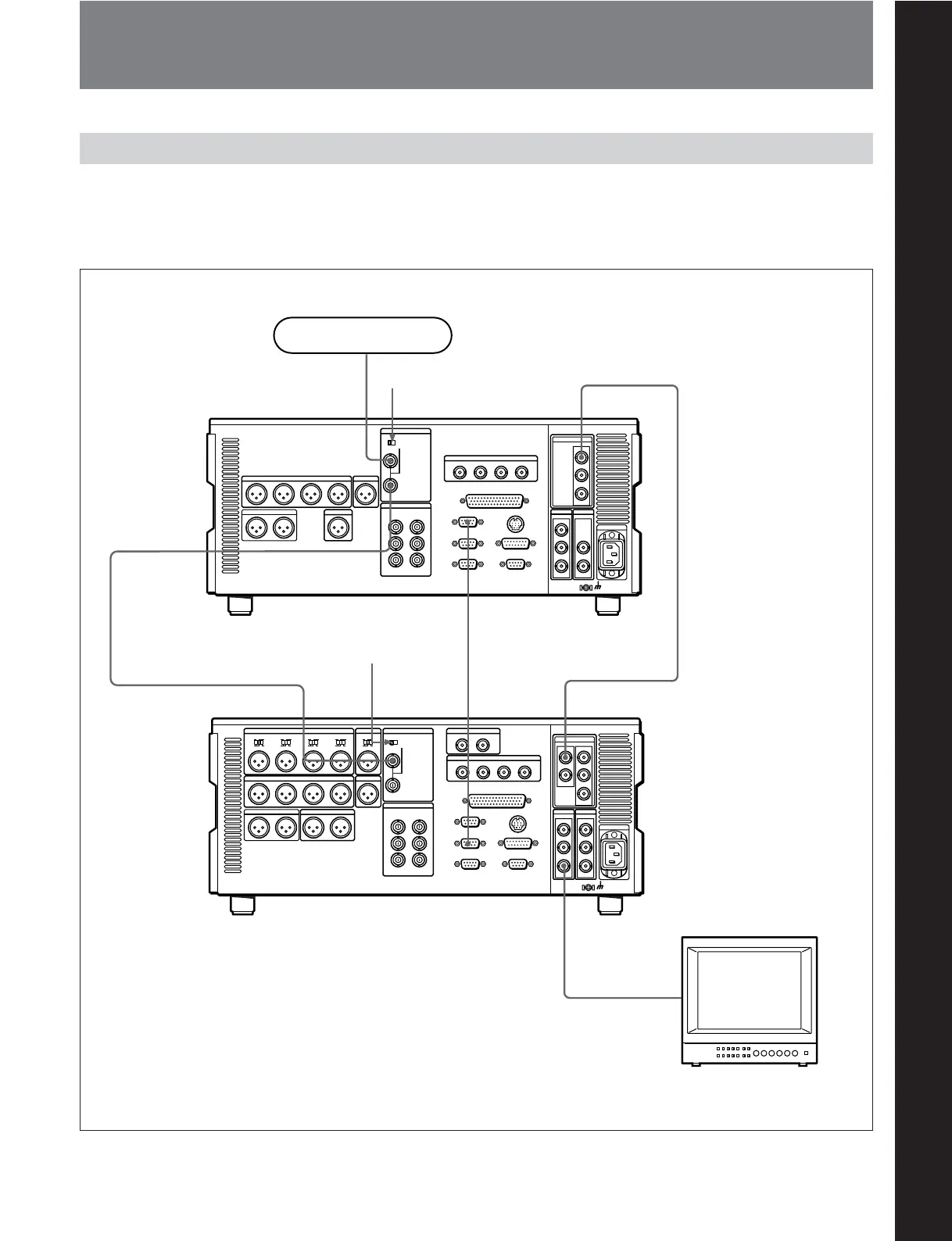

3-1-1 Connections to Digital Devices
Reference signal
HDW-M2100/M2100P (player)
HDW-2000/M2000/M2000P (recorder)
BVM-D24 series video
monitor
example shows the connections with another HDW-
2000/M2000/M2000P unit as a player, with this unit
used as recorder.
75Ω termination
switch: ON
75 Ω termination
switch: OFF
(SUPER)
To Next Page
