Chapter 3 Preparations
3-4 Chapter 3 Preparations

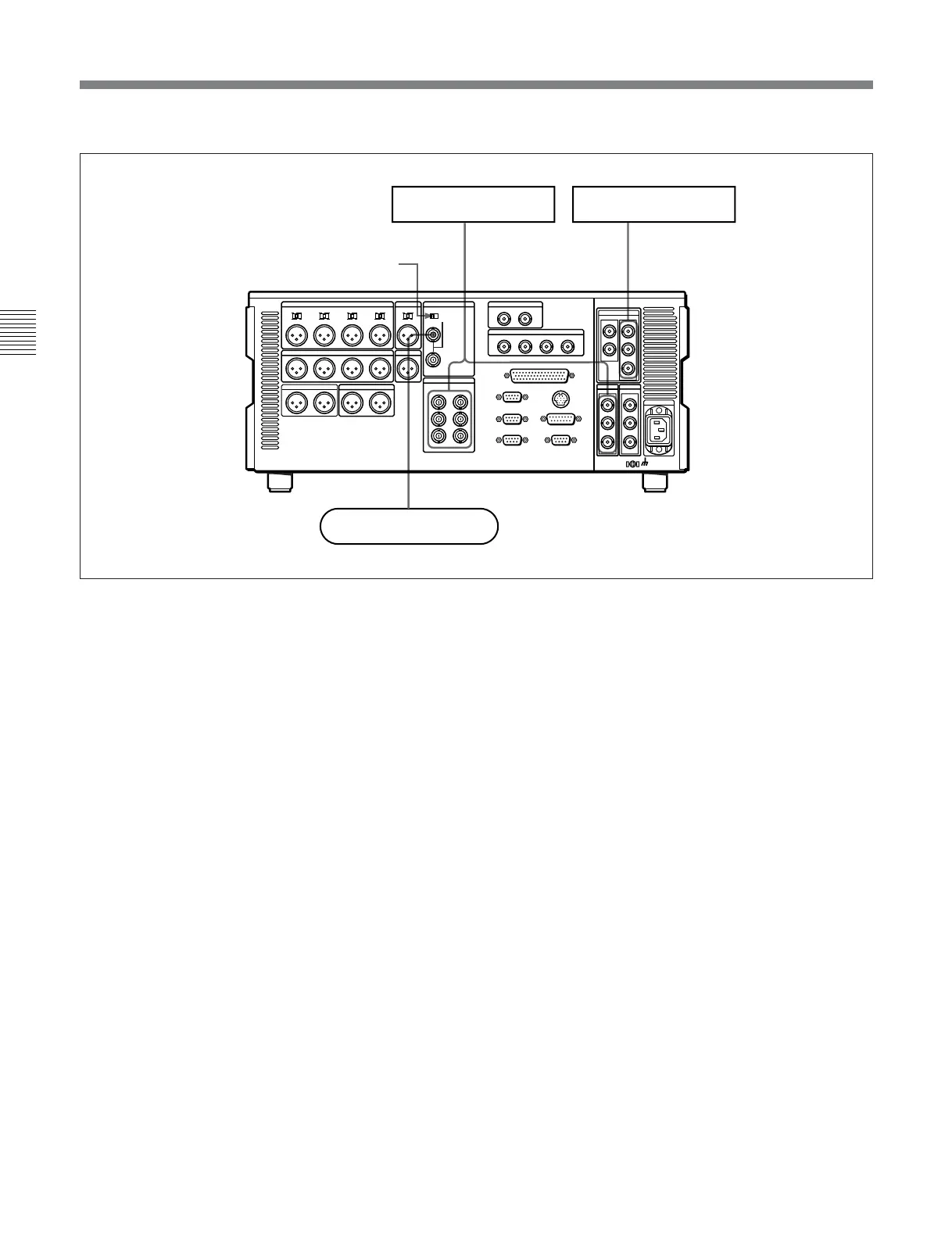

•Connections for playback
• SDI OUTPUT
• COMPOSITE
• COMPONENT
REF. VIDEO INPUT
HDSDI OUTPUT
75Ω
HD video monitorSD video monitor
HDW-2000/M2000/M2000P
75 Ω termination switch: ON
Reference signal
3-2 Reference Sync Signals
