• Use screws that are suitable for the wall material and
strength. As a plaster board wall
is
especially fragile,
attach the screws securely to a wall beam. Install the
satellite speaker on a vertical and flat reinforced area
of
the wall.
• Be sure to subcontract the installation to Sony dealers
or licensed contractors and pay special attention to
safety during the installation.
• Sony is not responsible for accidents or damage
caused by improper installation, insufficient wall
strength, improper screw installation or natural
calamity, etc.
8
US

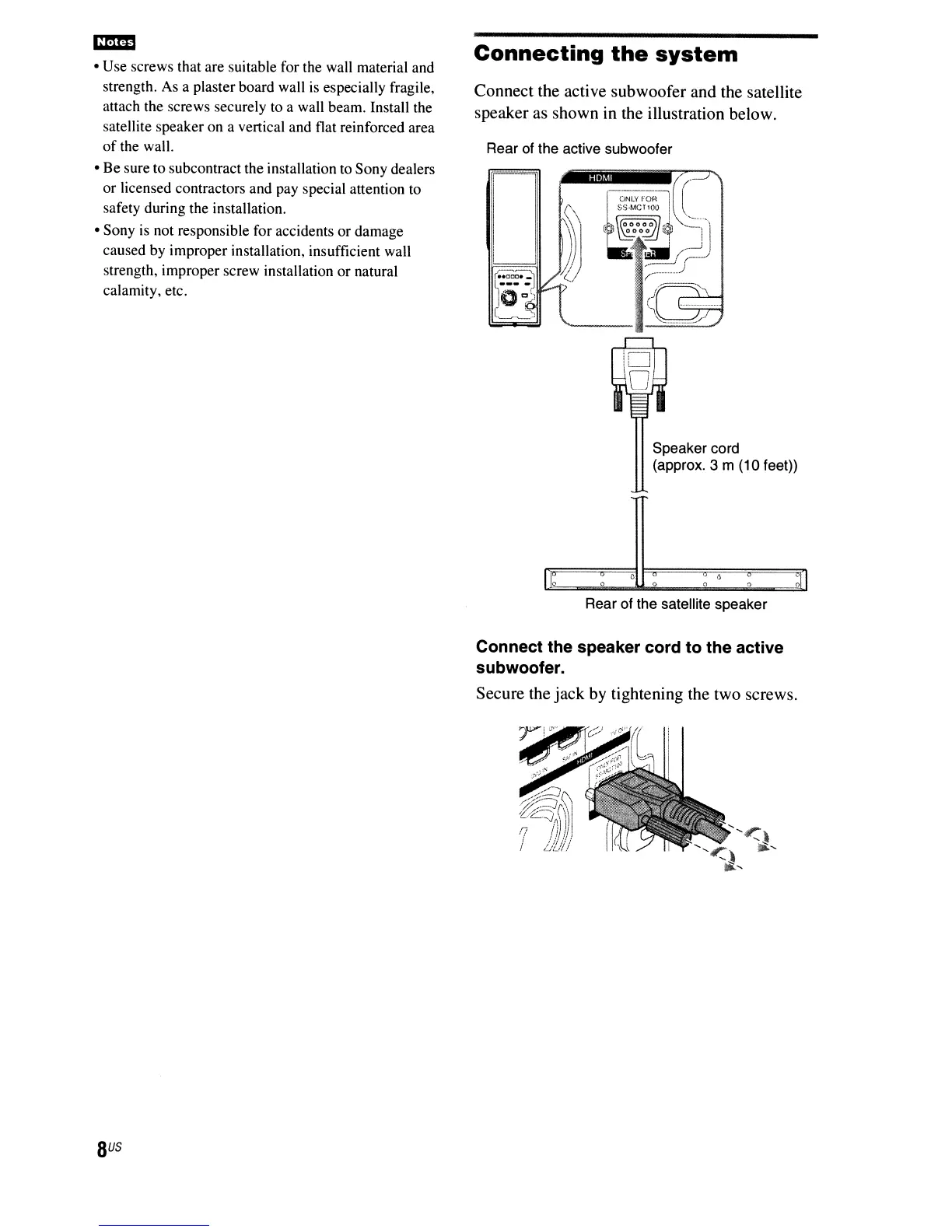

Connecting
the
system
Connect the active subwoofer and the satellite
speaker as shown in the illustration below.
Rear of the active subwoofer
Speaker cord
(approx. 3 m (10 feet))
I"'iir"J:
===;;':
J"'ii""'~
=-'\F"~
6~;==m1;I1
Rear of the satellite speaker
Connect the speaker cord to the active
subwoofer.
Secure the jack by tightening the two screws.
To Next Page
