Sony HT-NT5 Service Manual

HT-NT5
11

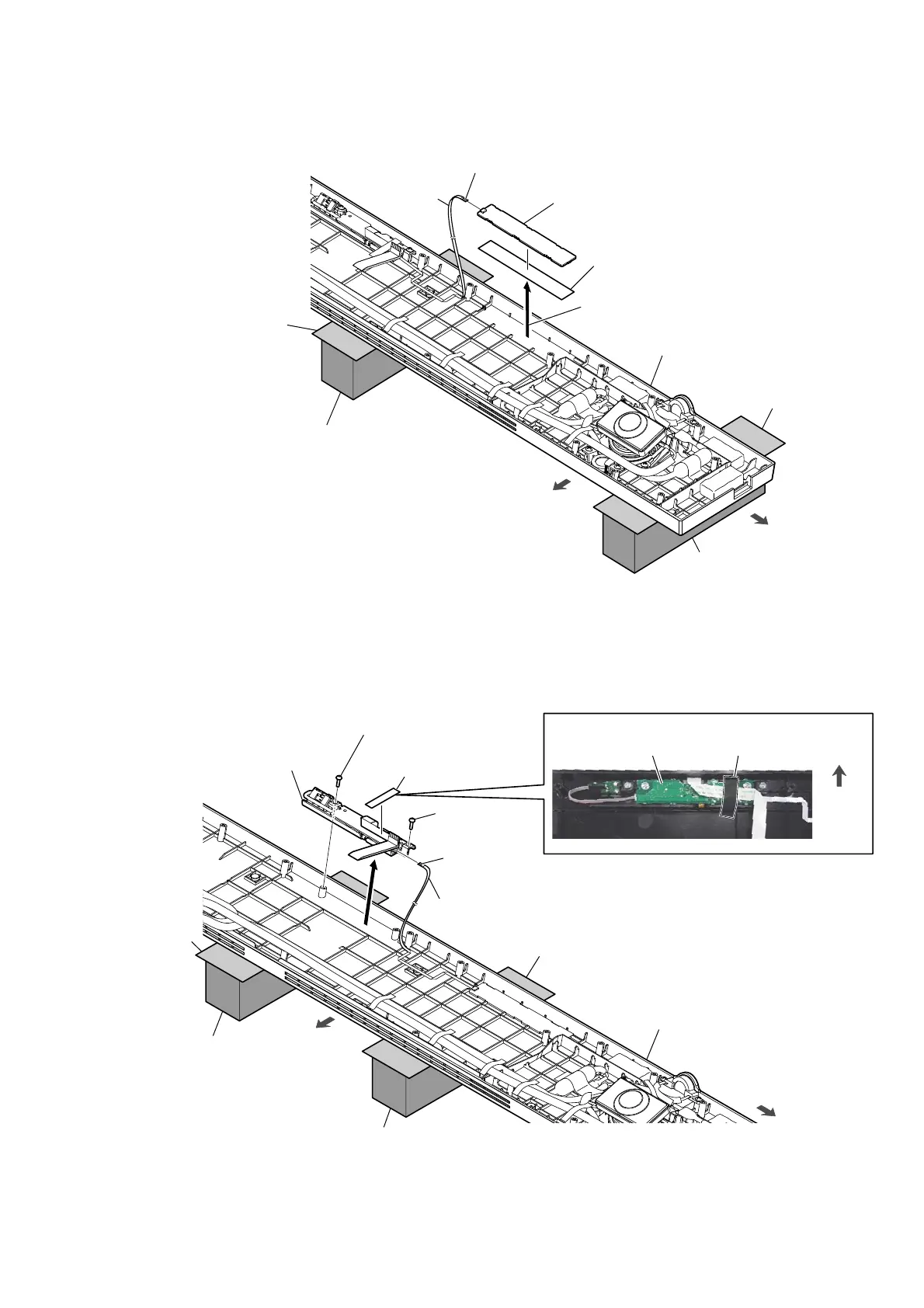

2-3. TOUCH BOARD
2-4. DISPLAY BOARD BLOCK
2 FFC 6P
(CN1901)
rear side
right side
3 double adhesive tape
4 TOUCH board
1 Peel off the TOUCH board block.
This side is the
terminal side.
top cabinet block
stand
soft cloth, etc.
soft cloth, etc.
stand
Note:
The center area of the tweeter on the top side protrudes out
more than the surface of the top cabinet block.
When working with the top side facing down, place stands
so that the center area of the top side tweeter is not crushed.
(Lay a soft piece of cloth between the unit and stands to
avoid damaging the top cabinet assy)
3
4 FFC 6P
(CN1301)
rear side
right side
top cabinet block
5 DISPLAY board block
:LUHVHWWLQJ
1 saranet cushion
2 screw
(BVTP3 u 8)
2 screw
(BVTP3 u 8)
saranet cushion
front side
DISPLAY board
This side is the
terminal side.
stand
soft cloth, etc.
soft cloth, etc.
stand
Note:
The center area of the tweeter on the top side protrudes out
more than the surface of the top cabinet block.
When working with the top side facing down, place stands
so that the center area of the top side tweeter is not crushed.
(Lay a soft piece of cloth between the unit and stands to
avoid damaging the top cabinet assy)
