HT-NT5
4

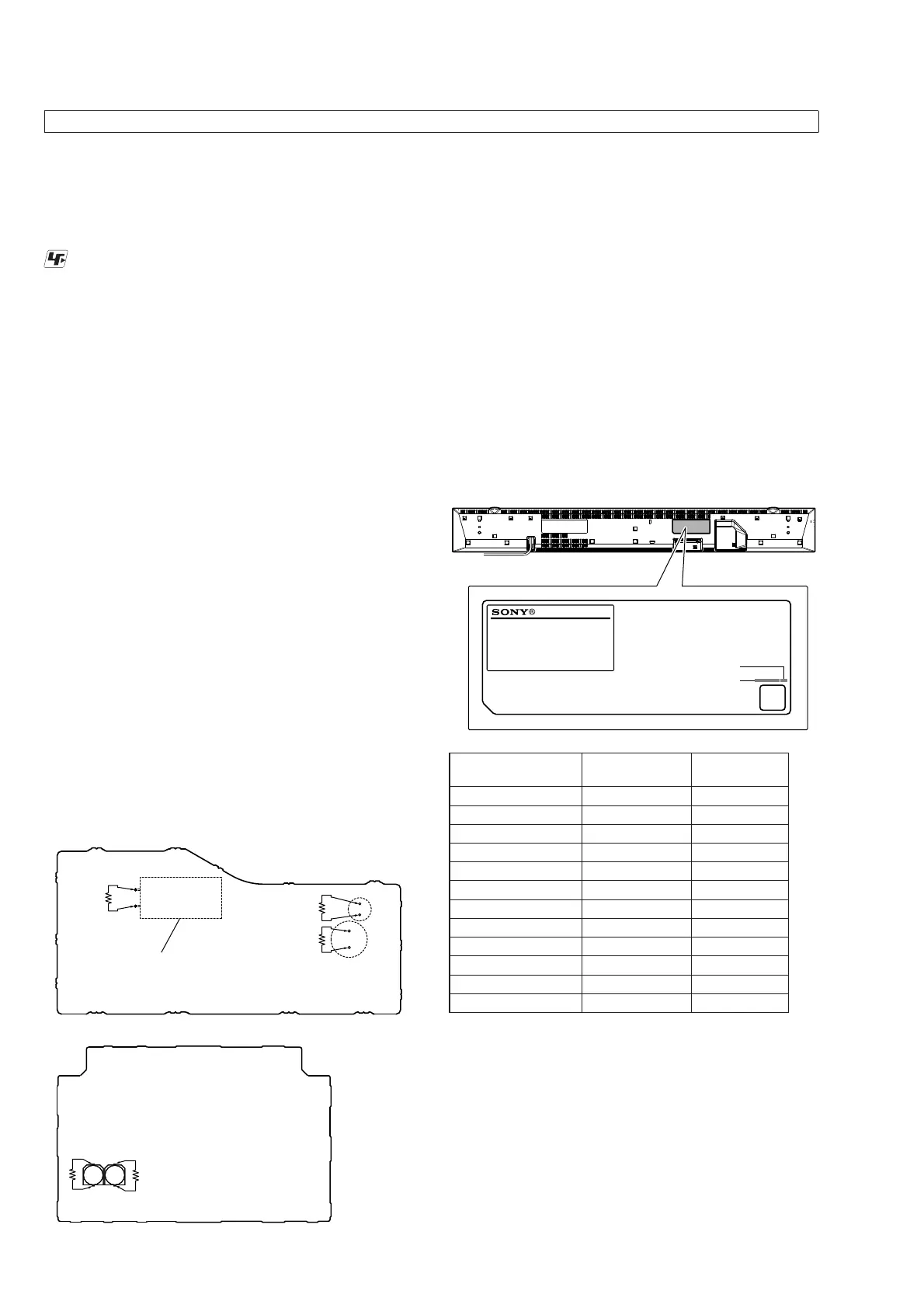

SECTION 1
SERVICING NOTES
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
ADVANCE PREPARATION WHEN CONFIRMING OP-
ERATION
All of the units included in the HT-NT5 (SA-NT5/SA-WNT5/
Remote control) are required to confi rming operation of SA-NT5.
Check in advance that you have all of the units.
CAPACITOR ELECTRICAL DISCHARGE PROCESSING
Before checking the operation of the boards for the electric shock
prevention, perform the discharge processing by connecting the
resistor at both ends of capacitor with referring to the fi gure below.
Note 1: When the connector that connects the POWER board to the AMP
board is disconnected before discharging, completely fi nish dis-
charging both boards, and then reconnect the connector. If dis-
charging is not complete, sparking may occur when connecting
the connector and cause a blown fuse.
Note 2: Be sure to discharge using a resistor of 800 or higher.
– POWER Board (Conductor Side) –
– AMP Board (Side A) –
C967
C6020 C6021
C970
800 :/2 W
800 :/2 W
C914 (US, CND, EA, TW)
C915 (Except US, CND, EA, TW)
800 :/2 W
800 :/2 W
800 :/2 W
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
NOTE OF PERFORMING THE OPERATION CHECK IN
THE STATE THAT HEAT SINK IS REMOVED
When performing the operation check in the state that this unit is
disassembled, it is possible to perform the operation check in the
state that heat sink is removed. However, don’t perform the opera-
tion check in the long time, and perform the operation check in the
volume state as low as possible.
“PRTCT”, “PUSH” AND “POWER” FLASH ALTER-
NATELY IN THE FRONT PANEL DISPLAY
q Press Æ (power) to turn off the
system. After the indicator
disappears, disconnect the AC power
cord (mains lead) and make sure
nothing is obstructing the ventilation
holes of the system.
MODEL IDENTIFICATION
Distinguish by Part No. and Destination code of the serial number
label on the bottom side of the main unit.
– Bottom view –
MODEL NUMBER LABEL
Destination code
Part No.
Destination Part No.
Destination
code
US, CND models
4-585-368-0[]
UC2
AEP model
4-585-370-0[]
CEL
EA model
4-585-371-0[]
EA3
SP model
4-588-029-0[]
SP1
CH model
4-588-030-0[]
CN4
LA model
4-588-032-0[]
LA9
BR model
4-588-033-0[]
BR1
UK model
4-590-187-0[]
CEK
RU model
4-590-188-0[]
RU3
AUS model
4-590-189-0[]
AU1
TW model
4-590-190-0[]
TW2
AR model
4-590-191-0[]
AR2
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AR : Argentina model
AUS : Australian and New Zealand models
BR : Brazilian model
CH : Chinese model
CND : Canadian and Latin American (Puerto Rico) models
EA : Middle East area (Except for Jordan) and African models
LA : Latin American (Except for Brazil, Argentina and
Puerto Rico) model
RU : CIS area (Except for Moldova) model
SP : South East Asian area and Hong Kong models
TW : Taiwan model
Ver. 1.2
To Next Page
