Sony HTC-D259 - Page 17

(2)

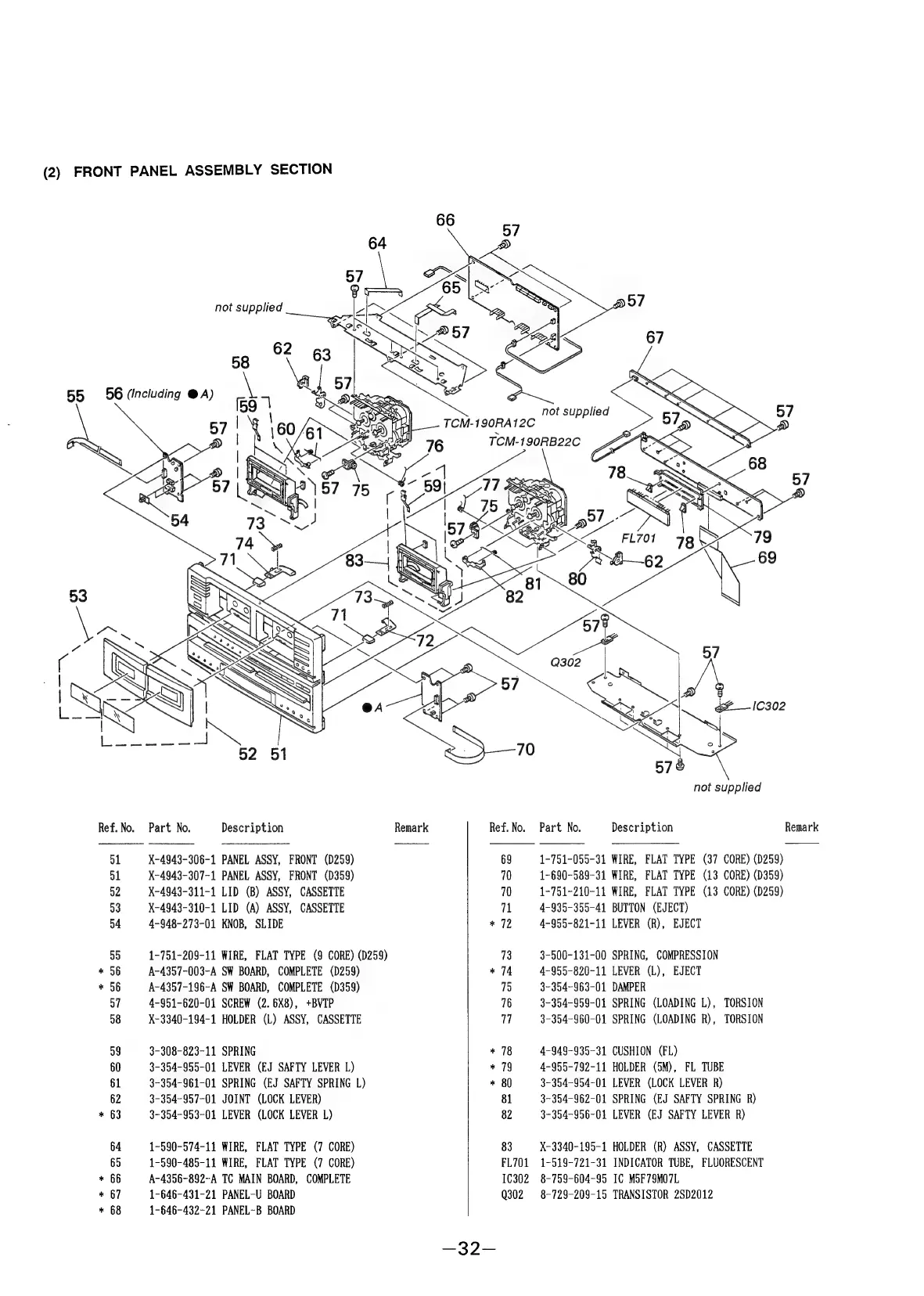

FRONT
PANEL
ASSEMBLY
SECTION
not supplied
not supplied
TCM-190RA12C
TCM-190RB22C
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4943-306-1 PANEL ASSY, FRONT (D259) 69 1-751-055-31 WIRE, FLAT TYPE (37 CORE) (D259)
51 X-4943-307-1 PANEL ASSY, FRONT (D359) 70 1-§90-589-31 WIRE, FLAT TYPE (13 CORE) (D359)
52 X-4943-311-1 LID (B) ASSY, CASSETTE 70 1-751-210-11 WIRE, FLAT TYPE (13 CORE) (D259)
53 X-4943-310-1 LID (A) ASSY, CASSETTE 71 4-935-355-41 BUTTON (EJECT)
54 4-948-273-01 KNOB, SLIDE * 72 4-955-821-11 LEVER (R), EJECT
55 1-751-209-11 WIRE, FLAT TYPE (9 CORE) (D259) 73 3-500-131-00 SPRING, COMPRESSION
* 56 A-4357-003-A SW BOARD, COMPLETE (D259) * 74 4-955-820-11 LEVER (L), EJECT
* 56 A-4357-196-A SW BOARD, COMPLETE (D359) 75 3-354-963-01 DAMPER
57 4-951-620-0141 SCREW (2. 6X8), +BVTP 76 3-354-959-01 SPRING (LOADING L), TORSION
58 X-3340-194-1 HOLDER (L) ASSY, CASSETTE 717 3-354-960-01 SPRING (LOADING R), TORSION
59 3-308-823-11 SPRING * 78 4-949-935-31 CUSHION (FL)
60 3-354-955-01 LEVER (EJ SAFTY LEVER L) * 74 4-955-792-11 HOLDER (5M), FL TUBE
61 3~354-961-01 SPRING (EJ SAFTY SPRING L) « 80 3-354-954-01 LEVER (LOCK LEVER R)
62 3-354-957-01 JOINT (LOCK LEVER) 81 3-354-962-01 SPRING (EJ SAFTY SPRING R)
* 63 3-354-953-01 LEVER (LOCK LEVER L) 82 3-354-956-01 LEVER (EJ SAFTY LEVER R)
64 1-590-574-11 WIRE, FLAT TYPE (7 CORE) 83 X-3340-195-1 HOLDER (R) ASSY, CASSETTE
65 1-590-485-11 WIRE, FLAT TYPE (7 CORE) FL701 4-519-721-31 INDICATOR TUBE, FLUORESCENT
* 66 A-4356-892-A TC MAIN BOARD, COMPLETE 10302 8-759-604-95 IC M5F79MO7L
* 67 1-646-431-21 PANEL-U BOARD Q302 8-729-209-15 TRANSISTOR 2SD2012
*&
68 1-646-432-21 PANEL~B BOARD
