SECTION 4
EXPLODED VIEWS
NOTE:
@ -XX and -X mean standardized parts, so they @ Items marked “*” are not stocked since they The components identified by mark
may have some difference from the original are seldom required for routine service. Some A or dotted line with mark A are
one. delay should be anticipated when ordering critical for safety. _
® Color Indication of Appearance Parts these items. Rep ited nly WM: Spat oUt Dee
Example: @ The mechanical parts with no reference :
KNOB, BALANCE (WHITE)... (RED) houtas in the exploded views are not Les composants identifiés par une
t SUPPEee: marque \ sont critiques pour la
Parts Color Cabinet’s Color | @ Hardware (# mark) list is given in the last of sécurité.
this parts list. Ne les remplacer que par une piéce
ie Rb bremanons. portant le neméro spécifié.
AUS: Australian Model
IT: Italian Model

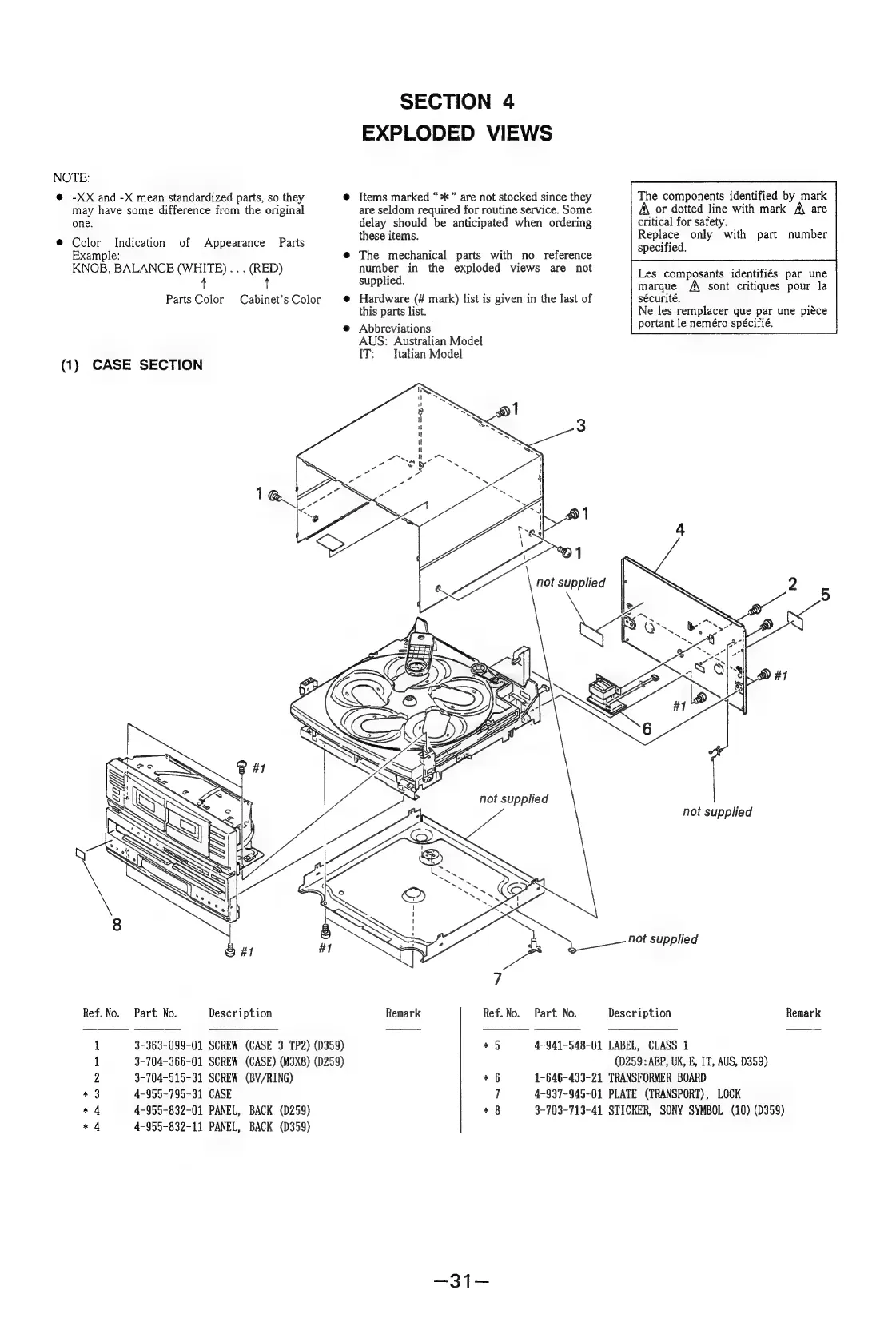

(1) CASE SECTION
a
not supplied
not supplied
not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
i 3-363-099-01 SCREW (CASE 3 TP2) (D359) * 45 4-941-548-01 LABEL, CLASS 1
i 3-704-366-01 SCREW (CASE) (M3X8) (D259) (D259: AEP, UK, E, IT, AUS, D359)
2 3-704-515-31 SCREW (BV/RING) * § 1-646-433-21 TRANSFORMER BOARD
* 3 4-955-795-31 CASE 7 4-937-945-01 PLATE (TRANSPORT), LOCK
* 4 4-955-832-01 PANEL, BACK (D259) * 8 3-703-713-41 STICKER, SONY SYMBOL (10) (D359)
* 4 4-955-832-11 PANEL, BACK (D359)
