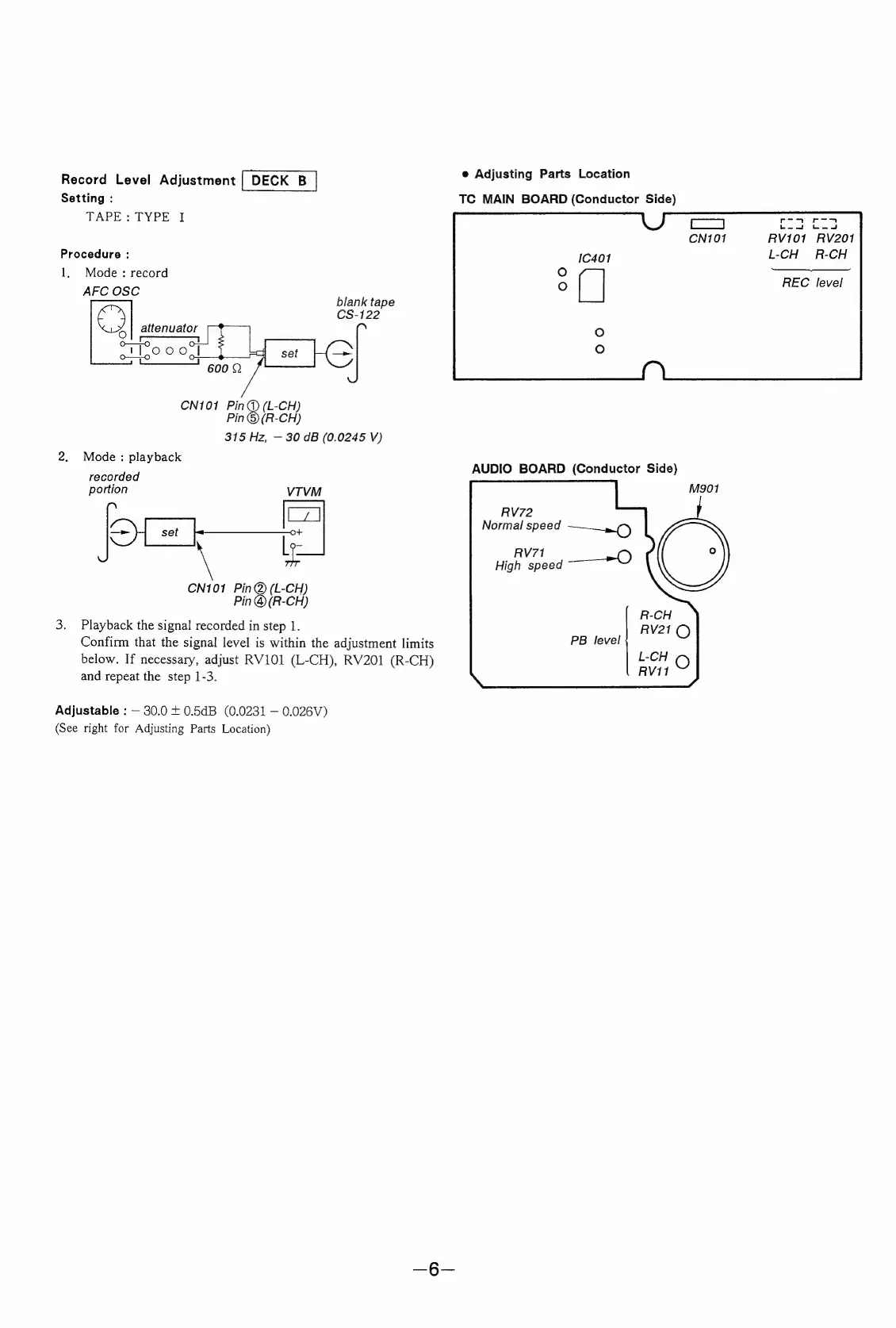

Sony HTC-D259 - Page 6

Record
Level
Adjustment
|
DECK
B
sAdjusdng:
alte,
Lecauer
Setting : TC MAIN BOARD (Conductor Side)
TAPE» TYPE -J
piiies We cic |
be-w bow
RV101 RV201
Procedure
:
CCH:
OR
1,
Mode:
record
REC
level
AFC
OSC
blank
tape
€°3
CS-122
5 attenuator
oS ot
Ll ooo. |
CN101 Pin@ (L-CH)
Pin © (R-CH)
315 Hz, — 30 dB (0.0245 V)
2.
Mode
:
playback
aera
AUDIO
BOARD
(Conductor
Side)
recorded
portion M901
RV72
ae 25) Normal speed ——»O
RV71
High speed —+O
CN101 Pin (Lor
Pin @ (R-CH)
3. Playback the signal recorded in step 1.
Confirm that the signal level is within the adjustment limits
below. If necessary, adjust RV101 (L-CH), RV201 (R-CH)
and repeat the step 1-3.
PB level
Adjustable : — 30.0 +0.5dB (0.0231 — 0.026V)
(See right for Adjusting Parts Location)
