Names and Functions of Parts

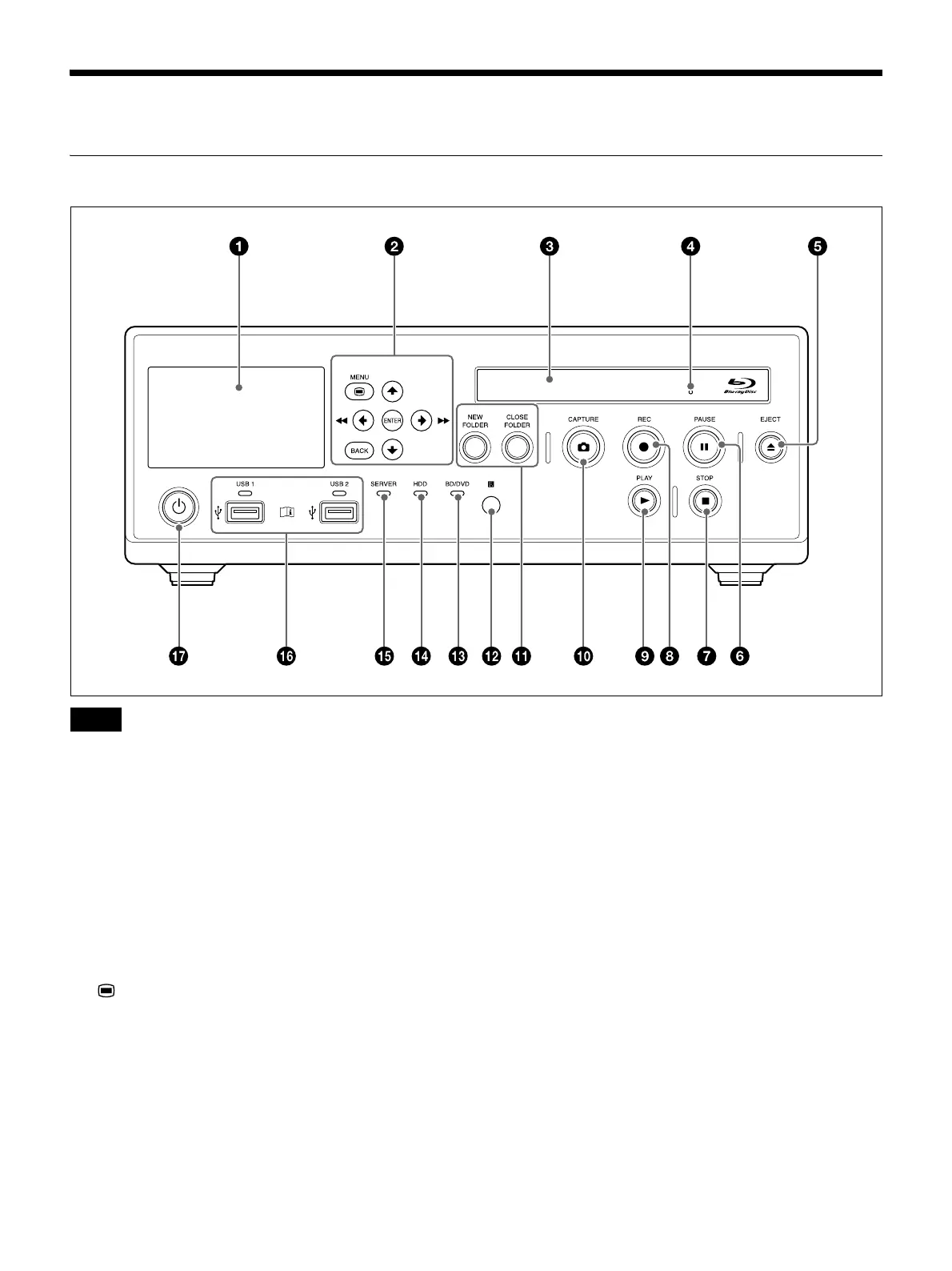

Front
Do not touch the laser pickup inside the BD drive
The discharge of static electricity that may result from
touching the pickup may cause the drive to hang up,
preventing the ability to write data. If a hang up occurs,
try turning the recorder off and turning it on again.
a Front panel display
Displays Ch1 input/output videos and still images,
the status of the unit, error messages, etc.
b Menu navigation buttons
Use these to navigate menus.
MENU button
Display or hide the menu.
V button
Use this to move the cursor up or select an item that
is above the current item.
B/m button
Use this to move the cursor left or select an item that
is to the left of the current item.
You can also use this button to rewind during
playback of recorded data.
v button
Use this to move the cursor down or select an item
that is below the current item.
b/M button
Use this to move the cursor right or select an item that
is to the right of the current item.
You can also use this button to fast forward during
playback of recorded data.
ENTER button
Use this to confirm a currently selected menu or item,
and execute operations.
BACK button
Use this to return to a previous screen during menu or
operation screen displays.
When you press this button while nothing is
displayed on the screen, the text that appears on the
front panel display will be hidden.
Note
To Next Page
