Appendix 75
Appendix
General
Peak inrush current
Hot switching inrush current,
measured in accordance with
European standard
EN55103-1 : 5.0 A (230 V)
Power requirements
8.4 V (DC IN jack)
Power consumption
8 W (during playback)
Operating temperature
5 ˚C to 40 ˚C (41 ˚F to 104 ˚F)
Storage temperature
–20 ˚C to +60 ˚C
(–4 ˚F to +140 ˚F)
Dimensions Approx. 180 × 72.8 × 267.1 mm
(7
1
/8 × 2
7
/8 × 10
5
/8 inches)
(w/h/d, including projecting parts
and controls)
COMPONENT OUT jacks
OUT Pin jack
Output at 480i NTSC
With [BETACAM] selected in [IN/OUT REC]
menu
Y: 1.0 Vp-p
(with 0.286 Vp-p sync negative,
output impedance 75 Ω (ohms),
unbalanced)
Pb/Cb/B-Y, Pr/Cr/R-Y: 0.7 Vp-p
(output impedance 75 Ω (ohms),
unbalanced)
(75% color bars with 7.5 IRE
setup)
With [SMPTE] selected in [IN/OUT REC] menu
Y: 1.0 Vp-p
(with 0.3 Vp-p sync negative,
output impedance 75 Ω (ohms),
unbalanced)
Pb/Cb/B-Y, Pr/Cr/R-Y: 0.7 Vp-p
(output impedance 75 Ω (ohms),
unbalanced)
(100% color bars with no setup)
Output with other settings
Y: 1.0 Vp-p
(output impedance 75 Ω (ohms),
unbalanced)
Pb/Cb/B-Y, Pr/Cr/R-Y: 0.7 Vp-p
(output impedance 75 Ω (ohms),
unbalanced)
(100% color bars with no setup)
480i/480p:
Y: with 0.3 Vp-p sync negative
1080i:
Y/Pb/Pr: with 0.6 Vp-p 3-level
sync
HDV/DV jack
i.LINK (IEEE1394,
4-pin connector S100)
Remote control
LANC Stereo mini-minijack (ø 2.5)
CONTROL S IN Stereo minijack (ø 3.5)

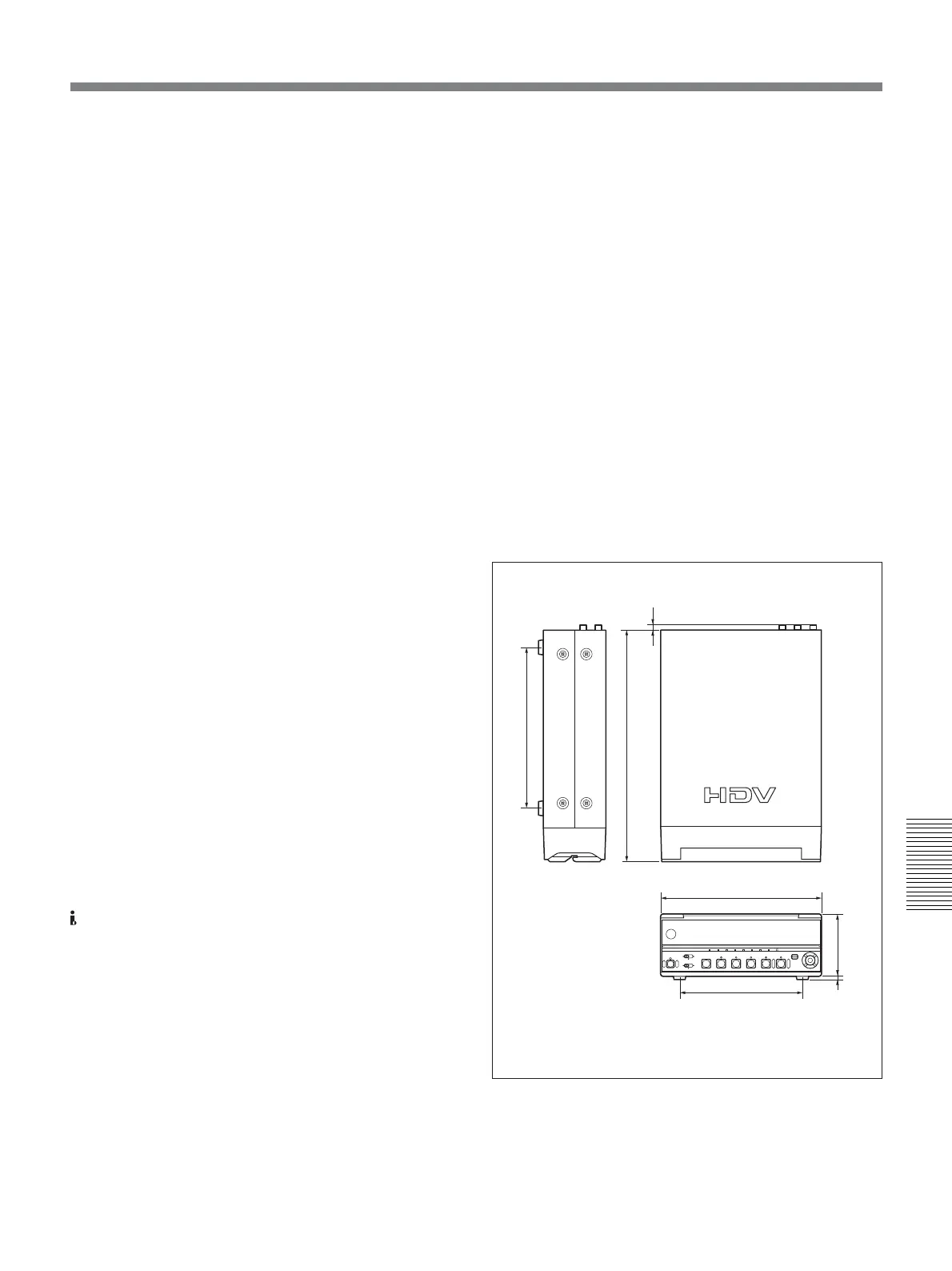

184 (7 1/4)
261 (10 3/8)
180 (7 1/8)
69 (2 3/4) 3.8 (5/32)
151 (6)
6.1 (1/4)
Unit: mm (inches)
Mass Approx. 2.3 kg (5 lb. 1
1
/8 oz.)
(Continued)
