Features
Chapter 1 Overview

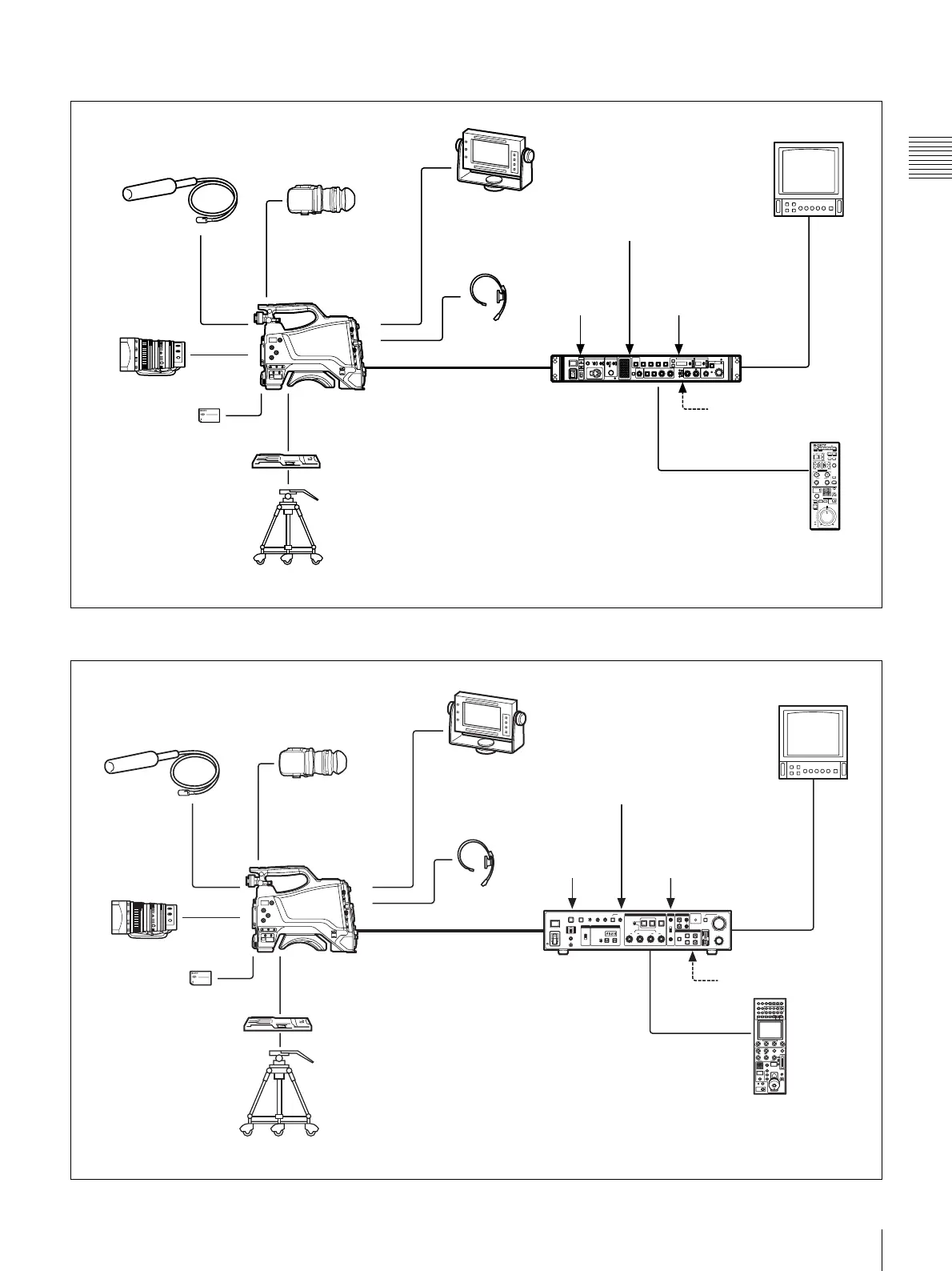

System operation example (with the HXCU-D70 Camera Control Unit)
System operation example (with the CCU-D50/D50P Camera Control Unit)
Microphone
RCP-1000-series
Remote Control Panel
HXC-D70
CBK-VF01
Viewfinder
Zoom Lens
(for ENG/EFP)
Return Video Input
“Memory Stick Duo”
VCT-14/U14
Tripod Adaptor
Tripod for
Portable Camera
AC Power
Multi-core Cable
1)
DXF-20W/C50WA/51 Viewfinder
HXCU-D70 Camera
Control Unit
CCA-5 Cable/LAN Cable
Prompter Video Input
Intercom Headset
Sync Input
Picture Monitor
Video Output HD-SDI/
SD-SDI/VBS/HDMI
1) An equivalent cable length of up to 100 m is approved.
For details, refer to the operating instructions supplied with the HXCU-D70 Camera Control Unit.
Microphone
RCP-D50-series
Remote Control Panel
HXC-D70
CBK-VF01
Viewfinder
Zoom Lens
(for ENG/EFP)
Return Video Input
“Memory Stick Duo”
VCT-14/U14
Tripod Adaptor
Tripod for
Portable Camera
AC Power
Multi-core Cable
1)
DXF-20W/C50WA/51 Viewfinder
CCU-D50/D50P
Camera Control Unit
CCA-7 Cable
Prompter Video Input
Intercom Headset
Sync Input
Picture Monitor
1) An equivalent cable length of up to 300 m is approved in analog transmission mode. An equivalent cable length of up to 75 m is approved
in SDI transmission mode.
