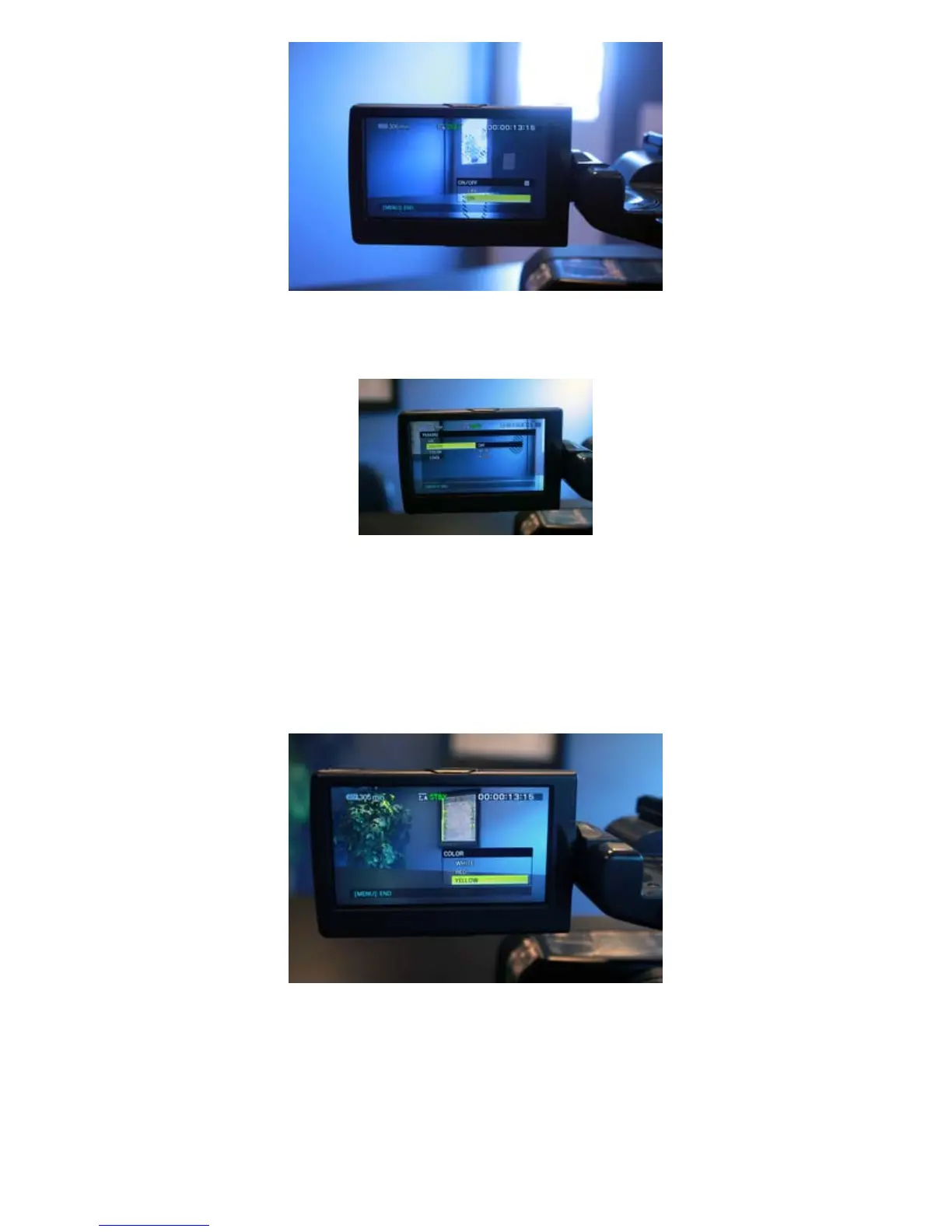

Peaking:
Peaking is used to help adjust the focus.
When peaking is activated, edges in focus on the screen will be highlighted in red, yellow or white.
• ON/OFF: When you select ON Peaking appears and you can display an image on the screen with
its outlines enhanced. The default setting is OFF
• COLOR: You can select a peaking color. The default color is white
• LEVEL: You can select a peaking sensitivity from [HIGH], [MIDDLE], and [LOW]. The default setting
is [MIDDLE]
*The enhanced outline will not be recorded on the memory card.
*You can focus more easily using this function in combination with the expanded focus function.
* You can assign an ASSIGN button to work as [ON/OFF]
Marker:
Markers are used to help frame your shot.
