Sony HXR-NX70C User Manual

HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-16

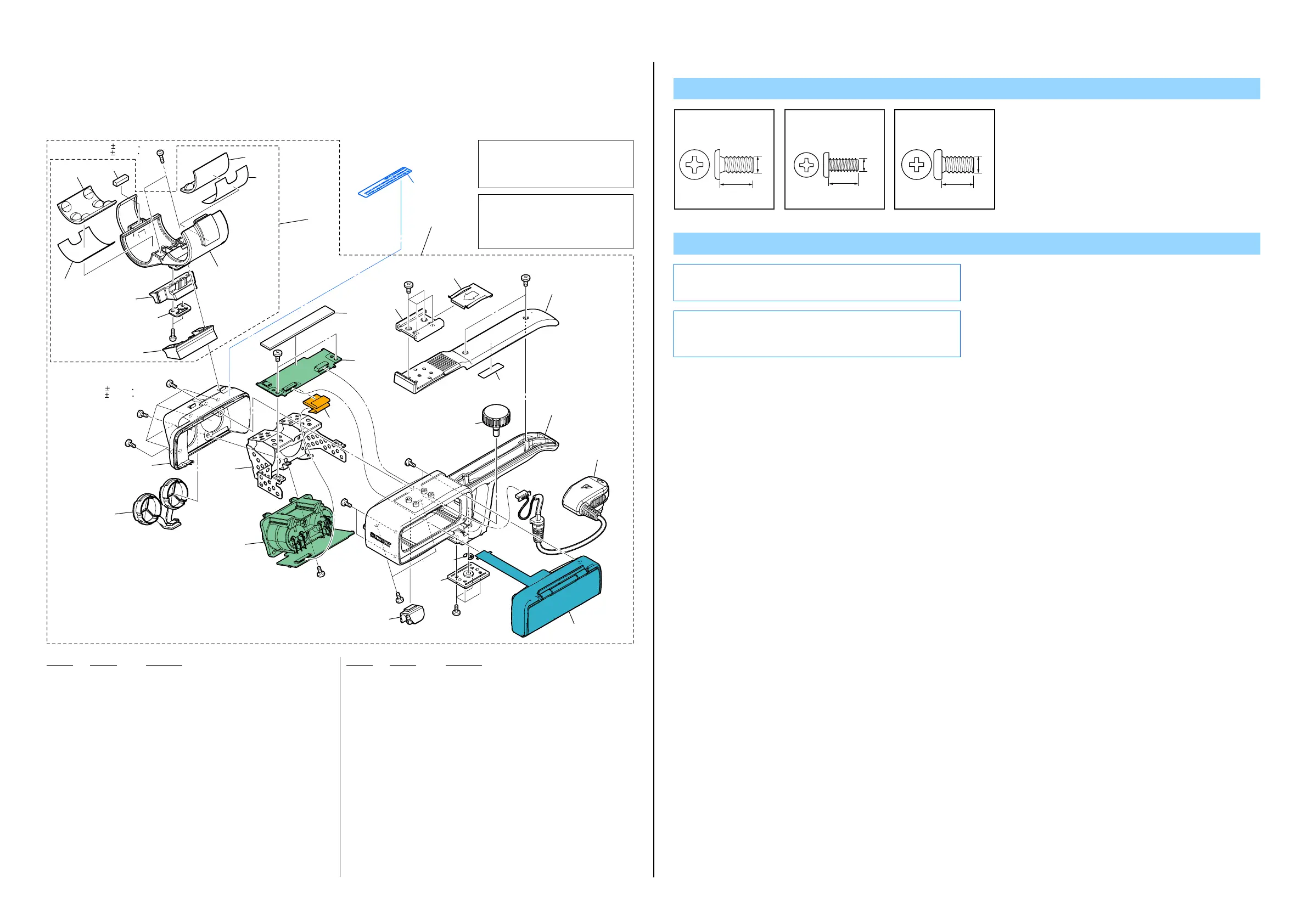

2-1-14. XLR SECTION
ns : not supplied
651 X-2342-570-1 HOLDER (93000) ASSY,MICROPHONE
652 3-284-080-01 RUBBER, MICROPHONE
653 3-284-081-11 SHEET, RUBBER ADHESIVE
654 3-284-621-11 CUSHION, MICROPHONE HOLDER
655 4-119-861-01 RUBBER (93000), HOLDER
656 3-284-075-02 COVER, MICROPHONE HOLDER RUBBER
657 4-282-420-01 COVER, XLR
658 4-165-285-01 COVER, XLR RUBBER
659 A-1825-473-A XL-013 BOARD, COMPLETE
660 4-282-421-01 FRAME, XLR
661 1-834-244-11 FLEXIBLE FLAT CABLE (FFC-116)
662 A-1825-472-A HN-003 BOARD, COMPLETE
663 4-283-290-01 SHEET (HN), ABSORBING
664 3-069-286-03 SHOE, ACCESSORY
665 4-282-419-01 CABINET (UPPER), HANDLE
Ref. No. Part No. DescriptionRef. No. Part No. Description
666 X-2581-422-1 KNOB (91000) ASSY, XL
667 X-2581-426-1 HANDLE (91000) ASSY
668 1-838-727-11 CABLE, ENCAPSULATED
669 1-489-370-11 SWITCH BLOCK, CONTROL (AU91000)
670 7-624-106-04 STOP RING 3.0, TYPE -E
671 3-077-768-11 XL SHOE PLATE
672 2-892-095-01 CLAMP, CABLE
673 A-1825-588-A XLR UNIT BLOCK ASSY (Note)
674 3-288-615-02 SPRING, SHOE
675 4-284-458-01 LABEL, XLR (NX70J) (Note)
675 4-284-459-01 LABEL, XLR (NX70U) (Note)
675 4-284-460-01 LABEL, XLR (NX70E/NX70N/NX70P) (Note)
675 4-284-461-01 LABEL, XLR (NX70C) (Note)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#53 3-080-206-21 SCREW, TAPPING, P2
#119 7-627-556-58 SCREW +P 2.6X5
Screw
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
#119
653
651
658
652
653
652
654
ns
655
#53
#53
#53
#49
#49
#49
ns
#49
#49
#49
#119
#49
#49
ns
656
659
660
663
664
657
675
(Note)
662
661
665
666
667
668
669
670
673
(Note)
671
672
(0.4 0.02N m
(4.0 0.2kgf cm))
(0.4 0.02N m
(4.0 0.2kgf cm))
674
図中で取り外しているねじで、トルク
の記載が無いねじは、下記のトルクで
締めつけてください。
(0.2±0.02N・m (2.0±0.2kgf・cm))
Tighten screws that are removed
without specified torque in the figure
below to the following torque.
(0.2±0.02N・m (2.0±0.2kgf・cm))
#119: M2.6 X 5.0
(Black)
7-627-556-58
5.0
2.6
The changed portions from
Ver. 1.0 are shown in blue.
Ver. 1.1 2011.05
Note
Note: XLR LABEL is not included in XLR UNIT BLOCK ASSY.
When the XLR UNIT BLOCK ASSY has been replaced,
attach the XLR LABEL of the relevant model.
Note:
XLR UNIT BLOCK ASSY には XLR LABEL が含まれていませ
ん。
XLR UNIT BLOCK ASSY を交換した場合は、該当する機種
の XLR LABEL を貼り付けること。
