Sony HXR-NX70C - Overall Section-2 Exploded View and Disassembly

HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-4

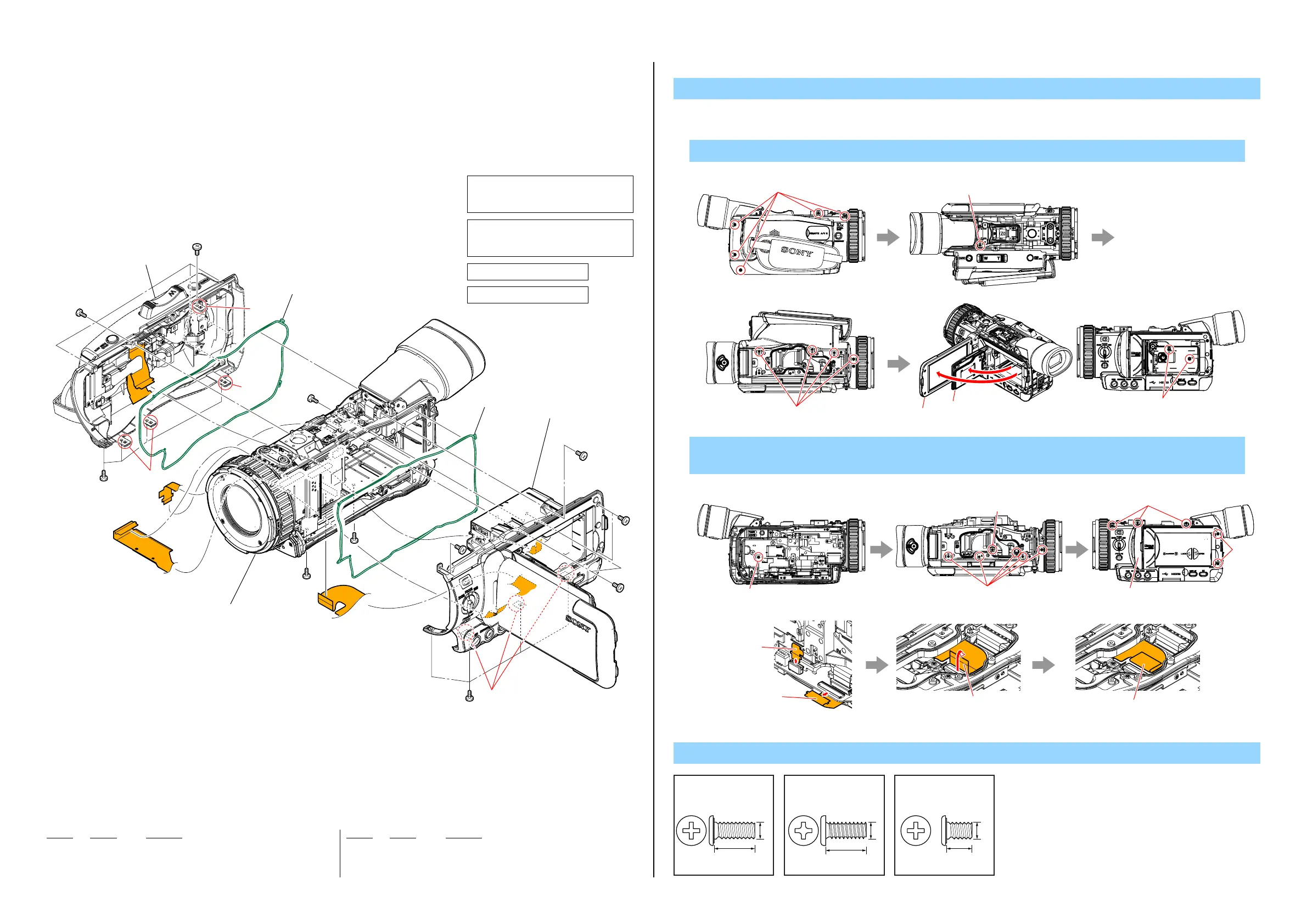

2-1-2. OVERALL SECTION-2
1. Remove to numerical order (1 to 4) in the left figure.
DISASSEMBLY
1 #2 X 10 → Open LCD ( 1-1 ) → Open BT Lid ( 1-2 ) → #2 X 2
Screw
Left View
Bottom View
Top Vi ew
Right View
#2
#2
#2
#2
1-1
1-2
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#14: M1.7 X 2.5
(Silver)
2-599-475-11
2.5
1.7
#11
#14
#2
#2
#2
#2
1 Cabinet (L) Section-1
(See page 2-12)
2 51
4 52
#2
#14
#14
#2
#2
3 Cabinet (R) Section
(See page 2-9)
(Claws)
(Claws)
(Claw)
(Claw)
Chassis Section-1
(See page 2-5)
Ref. No. Part No. Description
Ref. No. Part No. Description
51 4-282-250-01 PACKING, CABINET (L)
52 4-282-251-01 PACKING, CABINET (R)
#2 2-635-562-31 SCREW (M1.7)
#11 3-078-890-11 SCREW, TAPPING
#14 2-599-475-11 SCREW (M1.7)
図中で取り外しているねじは、下記の
トルクで締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten all screws that are removed in
the figure below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
3 #11 X 1 → #14 X 1 → #2 X 5 → Open LCD (3) → #2 X 2 → #14 X 3 → Disconnect flexible boards →
Fold flexible board
Left View
Left View Bottom View Bottom View
Right ViewBottom View
Disconnect
flexible board
Disconnect
flexible board
Fold flexible board
Disconnect
flexible board
#2
#14
#2
#14
#11
3
