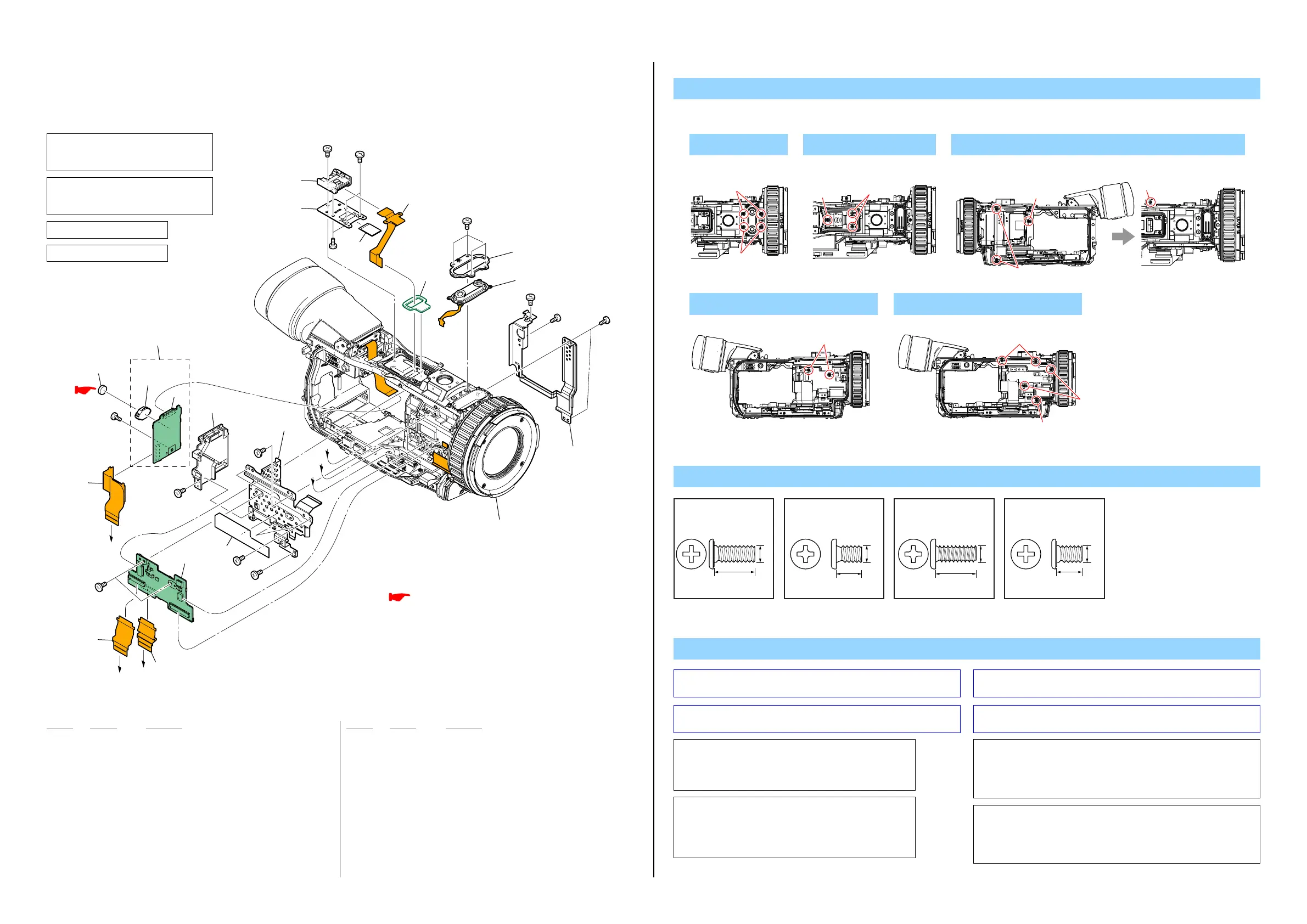

2-1-4. CHASSIS SECTION-2
ns: not supplied
GY-027
MA-475
ns
#3
#11
#2
#2
#2
#14
#2
#2
#3
#11
BH6501
(Note 3)
BT6501
(Note 3)
: BT6501 (LITHIUM RECHARGEABLE BATTERY)
Board on the mount position.
(See page 6-51)
1 MIC901
(Note 2)
2 164
3 158
159
162
160
163
161
(Note 1)
165
155
157
151
4 152
156
153
5 154
A
B
C
C
B
A
#14
#14
#14
Lens Section
(See page 2-7)
1. Remove to numerical order (1 to 5) in the left figure.
DISASSEMBLY
1 #2 X 4
Screw
Top View
#2
#2
Note
Note 1: Refer to “Assembly-8: Installation Cautions of the FP-1381
Flexible Board.”.
Note 1:
“Assembly-8: Installation Cautions of the FP-1381 Flexible
Board.” を参照してください。
2 #14 X 2
→
#2 X 1
Top View
#14
#2
3 #2 X 2
→
#11 X 1
→
#14 X 1
Right View
#2
#11
Top Vi ew
#14
4 #3 X 2
Left View
#3
5 #2 X 3
→
#11 X 2
Left View
#2
#11
#2
Ref. No. Part No. Description
Ref. No. Part No. Description
151 1-883-170-11 FP-1375 (A) FLEXIBLE BOARD
152 A-1825-462-A MA-475 BOARD, COMPLETE
153 4-283-279-01 SHEET, MA PROTECTION
154 4-282-363-01 FRAME (L), LENS
155 1-883-169-11 FP-1374 FLEXIBLE BOARD
156 4-282-274-01 BASE, GY
157 A-1825-511-A GY-027 BOARD, COMPLETE (SERVICE)
158 4-282-360-01 REINFORCEMENT, R
159 4-282-325-01 CABINET, MIC
160 4-283-283-01 SHEET, HS WATERPROOF
161 1-883-176-11 FP-1381 FLEXIBLE BOARD (Note 1)
162 4-283-282-01 SHEET, HS PROTECTION
163 4-282-361-01 FRAME, SHOE
164 1-818-890-11 CONNECTOR, EXTERNAL (HOT SHOE)
165 1-883-170-11 FP-1375 (B) FLEXIBLE BOARD
 BH6501 1-251-928-21 HOLDER, BATTERY (Note 3)
 BT6501 1-756-135-31 BATTERY LITHIUM SECONDARY (Note 3)
MIC901 1-542-871-11 MICROPHONE UNIT (Note 2)
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
#14 2-599-475-11 SCREW (M1.7)
図中で取り外しているねじは、下記の
トルクで締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten all screws that are removed in
the figure below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#14: M1.7 X 2.5
(Silver)
2-599-475-11
2.5
1.7
Caution :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
注意
電池の交換は、正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と
交換してください。
使用済み電池は、取扱指示に従って処分してください。
Note 2: Refer to “Assembly-9: Installation Cautions of the flexible board
of the Microphone Unit.”.
Note 2:
“Assembly-9: Installation Cautions of the flexible board of the
Microphone Unit.” を参照してください。
Note 3:
G
Y-027基板のリチウム蓄電池 (BT6501) を交換する場合は
バッテリホルダ (BH6501) も同時に新品に交換してください。
(一度使用したバッテリホルダは再使用できません。)
部品取り付けの際は、先にバッテリホルダを取り付けてから
リチウム蓄電池を装着してください。
Note 3: Replace the battery holder (BH6501) together when replacing
the lithium storage battery (BT6501) on the GY-027 board.
(The battery holder removed once cannot be usedagain.)
When mounting these parts, mount new battery holder first and
attach new lithium storage battery next.
