HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-8

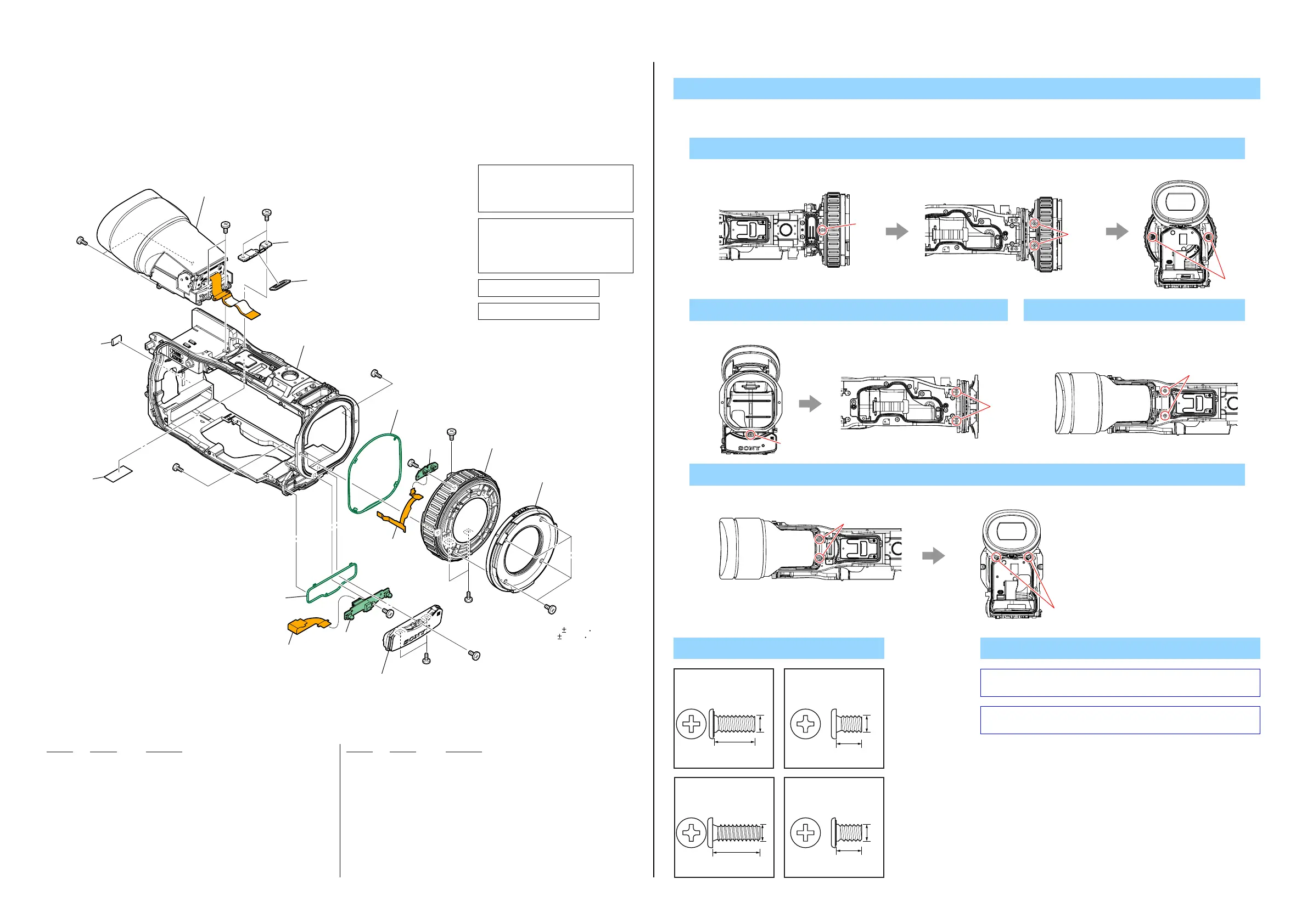

2-1-6. FRONT/CHASSIS SECTION
#2
#12
#12
#12
#2
#3
#14
#2
#14
#12
#2
#2
4 EVF Section
(See page 2-14)
255
259
260
261
257
258
(Note)
253
1 256
3 262
2 251
252
254
263
264
(0.13 0.02N m
(1.3 0.2kgf cm))
1. Remove to numerical order (1 to 4) in the left figure.
DISASSEMBLY
1
#14 X 3
→
#12 X 2
Top View Bottom View Back View
#14
#14
#12
2 #2 X 3
Bottom View
Front View
#2
#2
4 #2 X 4
Top View
Back View
#2
#2
Note
Note: Refer to “Assembly-6: Installation Cautions of the FP-1363
Flexible Board.”.
Note:
“Assembly-6: Installation Cautions of the FP-1363 Flexible
Board.” を参照してください。
251 X-2581-412-1 CABINET ASSY, IR
252 A-1825-467-A IR-072 BOARD, COMPLETE
253 1-883-159-11 FP-1364 FLEXIBLE BOARD
254 4-282-254-01 PACKING, IR CABINET
255 4-282-242-01 SCREW, FILTER
256 A-1833-640-A RING ASSY (SERVICE), ASSIGN
257 A-1825-470-A EC-005 BOARD, COMPLETE
258 1-883-158-11 FP-1363 FLEXIBLE BOARD (Note)
259 4-282-253-01 PACKING, AR CABINET
260 4-282-238-01 CHASSIS, CENTER
Ref. No. Part No. DescriptionRef. No. Part No. Description
261 4-283-274-01 SHEET (G), VF WATERPROOF
262 4-282-281-01 RETAINER (JS), VF FLEXIBLE
263 4-283-291-01 GASKET, MS
264 2-590-635-01 TAPE (AS 1/2)
#2 2-635-562-31 SCREW (M1.7)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#12 3-080-204-21 SCREW, TAPPING, P2
#14 2-599-475-11 SCREW (M1.7)
図中で取り外しているねじで、トルク
の記載が無いねじは、下記のトルクで
締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten screws that are removed
without specified torque in the figure
below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
3 #2 X 2
Top Vi ew
#2
Screw
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#14: M1.7 X 2.5
(Silver)
2-599-475-11
2.5
1.7
To Next Page
