HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-10

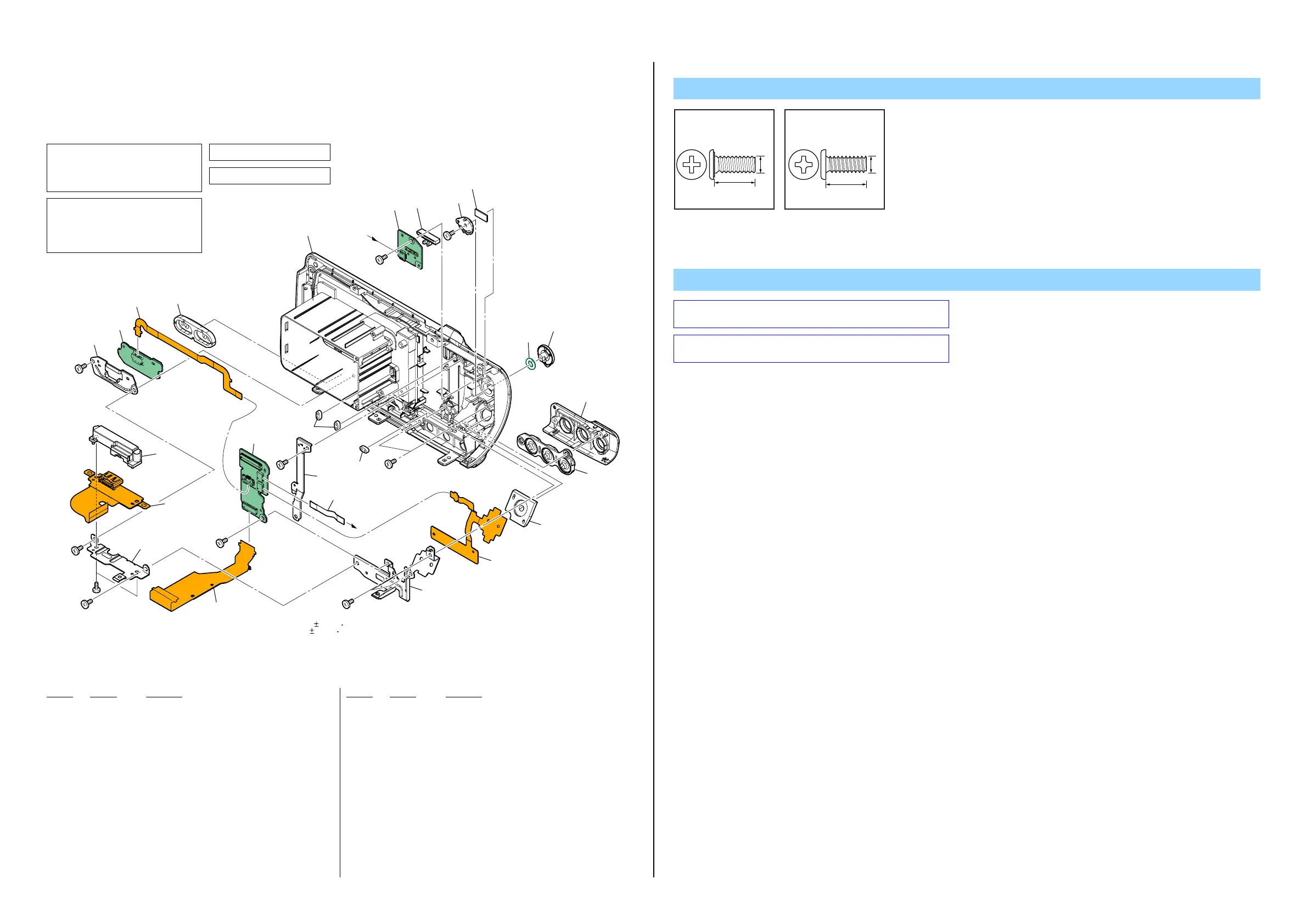

2-1-8. CABINET (R) SECTION-2
Screw
351 1-883-173-11 FP-1378 FLEXIBLE BOARD
352 4-282-391-01 PLATE (R), JK
353 A-1825-474-A FP-1360 FLEXIBLE BOARD, COMPLETE
354 4-282-305-01 RETAINER (R), JK
355 A-1825-461-A CK-235 BOARD, COMPLETE
356 4-282-389-01 SHEET METAL, HINGE RETAINER
357 1-834-503-11 FLEXIBLE FLAT CABLE (FJH-003)
358 4-282-390-01 SHEET METAL, BUTTON RETAINER
359 1-883-161-11 FP-1366 BOARD, COMPLETE
360 4-282-261-01 BUTTON, FOCUS
361 4-282-262-01 BUTTON, IRIS
362 4-282-304-01 COVER, IRIS BUTTON
363 4-282-260-01 PACKING, RING (ASSIGN)
364 4-282-301-01 LEVER, RING (ASSIGN)
Ref. No. Part No. DescriptionRef. No. Part No. Description
365 4-257-059-01 RUBBER, CONDUCTIVE
366 4-282-392-01 FRAME, DK
367 A-1825-468-A DK-034 BOARD, COMPLETE
368 1-883-162-11 FP-1367 FLEXIBLE BOARD (Note)
369 4-282-263-01 BUTTON, DK
370 X-2581-416-1 CABINET (R) ASSY
371 A-1825-469-A RS-089 BOARD, COMPLETE
372 4-282-303-01 SLIDER, RING (ASSIGN)
373 4-282-302-01 RETAINER, RING (ASSIGN)
374 4-286-613-01 CUSHION (SLIDER)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#11 3-078-890-11 SCREW, TAPPING
366
#11
#11
#11
#3
#11
#11
#11
#11
#11
#11
A
A
367
368
(Note)
369
371
372
373
374
363
364
362
361
360
359
358
357
356
365
370
365
355
351
354
353
352
(0.13 0.02N m
(1.3 0.2kgf cm))
図中で取り外しているねじで、トルク
の記載が無いねじは、下記のトルクで
締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten screws that are removed
without specified torque in the figure
below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
Note
Note: Refer to “Assembly-7: Installation Cautions of the FP-1367
Flexible Board.”.
Note:
“Assembly-7: Installation Cautions of the FP-1367 Flexible
Board.” を参照してください。
