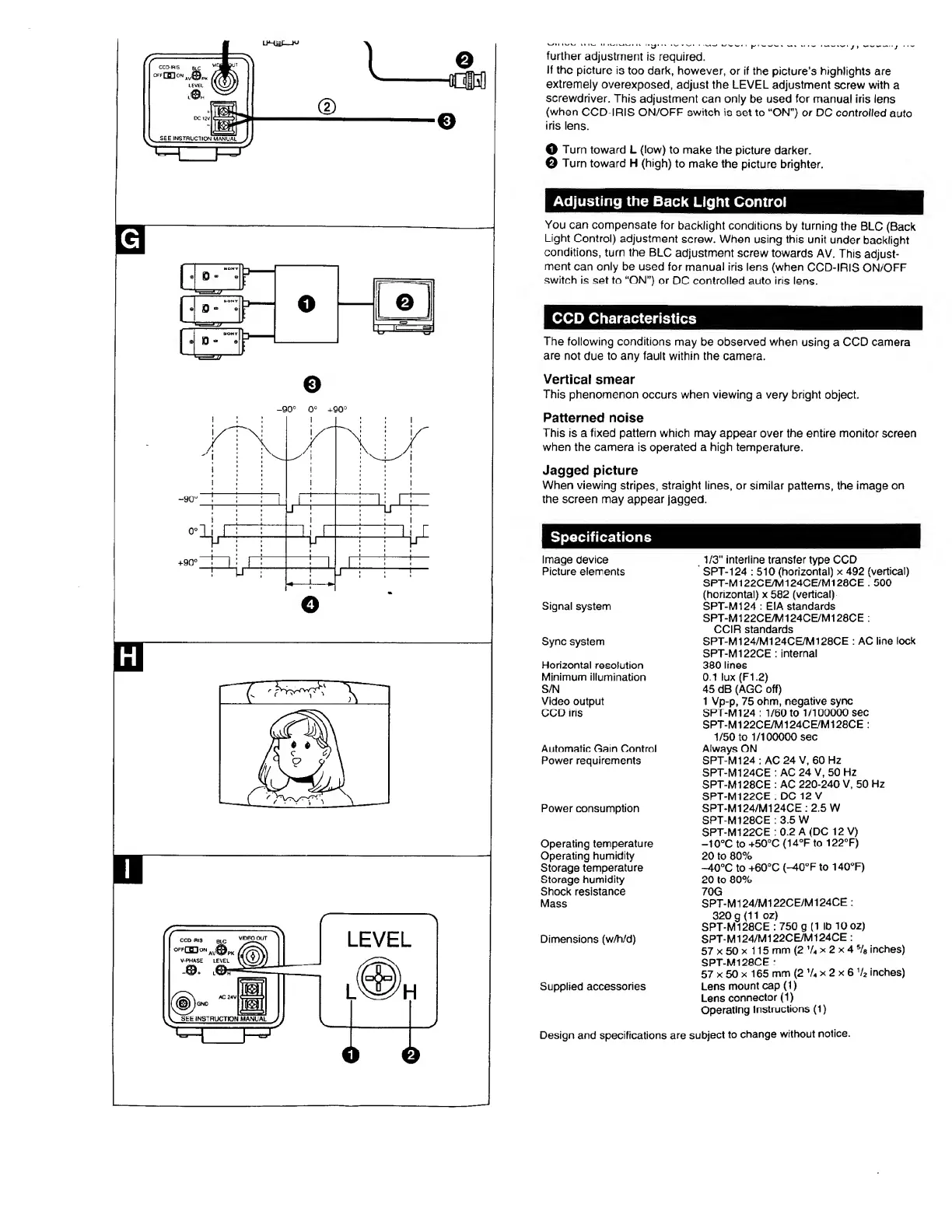

Sony Hyper HAD SPT-M124 - Advanced Operation and Specifications; Technical Specifications

LP-lST—hJ
w
O
- 90 ° 0 ° 4 - 90 °
further adjustment is required.
If the picture is too dark, however, or if the picture’s highlights are
extremely overexposed, adjust the LEVEL adjustment screw with a
screwdriver. This adjustment can only be used for manual iris lens
(when CCD IRIS ON/OFF switch is set to “ON”) or DC controlled auto
iris lens.
O Turn toward L (low) to make the picture darker.
© Turn toward H (high) to make the picture brighter.
Adjusting the Back Light Control
You can compensate for backlight conditions by turning the BLC (Back
Light Control) adjustment screw. When using this unit under backlight
conditions, turn the BLC adjustment screw towards AV. This adjust¬
ment can only be used for manual iris lens (when CCD-IRIS ON/OFF
switch is set to “ON”) or DC controlled auto iris lens.
CCD Characteristics
The following conditions may be observed when using a CCD camera
are not due to any fault within the camera.
Vertical smear
This phenomenon occurs when viewing a very bright object.
Patterned noise
This is a fixed pattern which may appear over the entire monitor screen
when the camera is operated a high temperature.
Jagged picture
When viewing stripes, straight lines, or similar patterns, the image on
the screen may appear jagged.
1 Specifications
Image device 1/3” interline transfer type CCD
Picture elements
SPT-124 : 510 (horizontal) x 492 (vertical)
SPT-M122CE/M124CE/M128CE . 500
(horizontal) x 582 (vertical)
Signal system SPT-M124 : EIA standards
SPT-M122CE/M124CE/M128CE :
CCIR standards
Sync system
SPT-M124/MI 24CE/M128CE : AC line lock
SPT-M122CE : internal
Horizontal resolution 380 lines
Minimum illumination
0.1 lux (FI.2)
S/N 45 dB (AGC off)
Video output 1 Vp-p, 75 ohm, negative sync
CCD iris
SPT-M 124 : 1/60 to 1/100000 sec
SPT-M 122CE/M 124CEM 128CE :
1/50 to 1/100000 sec
Automatic Gain Control Always ON
Power requirements
SPT-M124: AC 24 V, 60 Hz
SPT-M124CE : AC 24 V, 50 Hz
SPT-M128CE : AC 220-240 V, 50 Hz
SPT-M 122CE DC 12 V
Power consumption
SPT-M 124/M 124CE : 2.5 W
SPT-M128CE : 3.5 W
SPT-M122CE : 0.2 A (DC 12 V)
Operating temperature
-10°C to +50°C (14°F to 122°F)
Operating humidity
20 to 80%
Storage temperature
-40°C to +60°C (-40°F to 140°F)
Storage humidity 20 to 80%
Shock resistance
70G
Mass
S PT- M124/M 122C E/M 124CE :
320 g (11 oz)
SPT-M128CE : 750 g (1 IblOoz)
Dimensions (w/h/d)
SPT-M 124/M 122CE/M124CE :
57 x 50 x 115 mm (2 Y< x 2 x 4 s f 8 inches)
SPT-M128CE •
57 x 50 x 165 mm (2 V 4 x 2 x 6 % inches)
Supplied accessories
Lens mount cap (1)
Lens connector (1)
Operating Instructions (1)
Design and specifications are subject to change without notice.
