Sony ICF-18 - Section 2 Disassembly; Cabinet (Rear); Knob (Vol), Knob (Tune)

– 2 –
Note: Follow the disassembly procedure in the numerical order given.

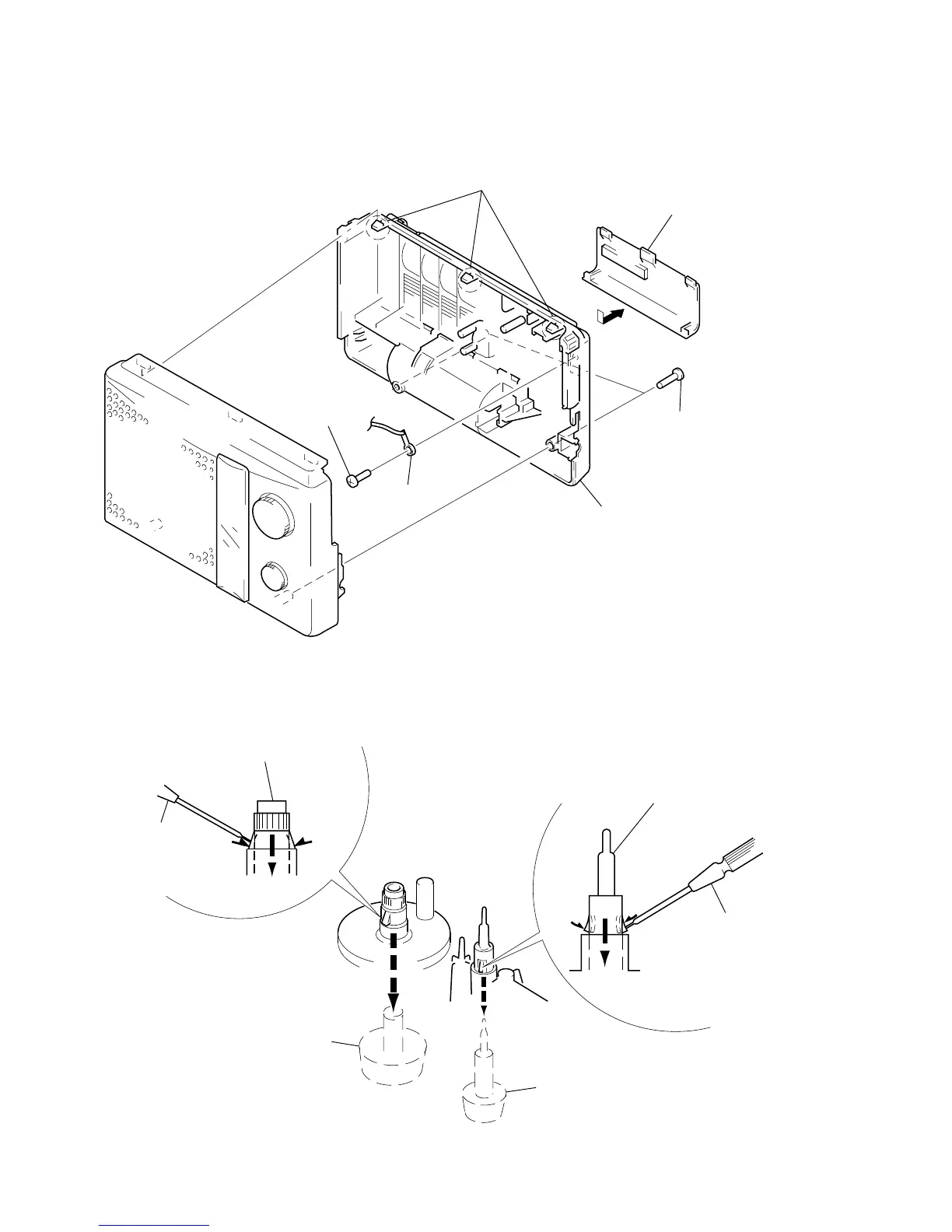

CABINET (REAR)
SECTION 2
DISASSEMBLY
KNOB (VOL), KNOB (TUNE)
1 Remove the battery case lid
to direction of the arrow.
2 two screws
(P 3
× 14)
4 cabinet (rear)
6 lug
5 screw
(P 3
× 10)
3 three claws
1 two claws
1 two claws
2 knob (tune)
2 knob (vol)
knob (tune)
screw
driver
knob (vol)
screw
driver
